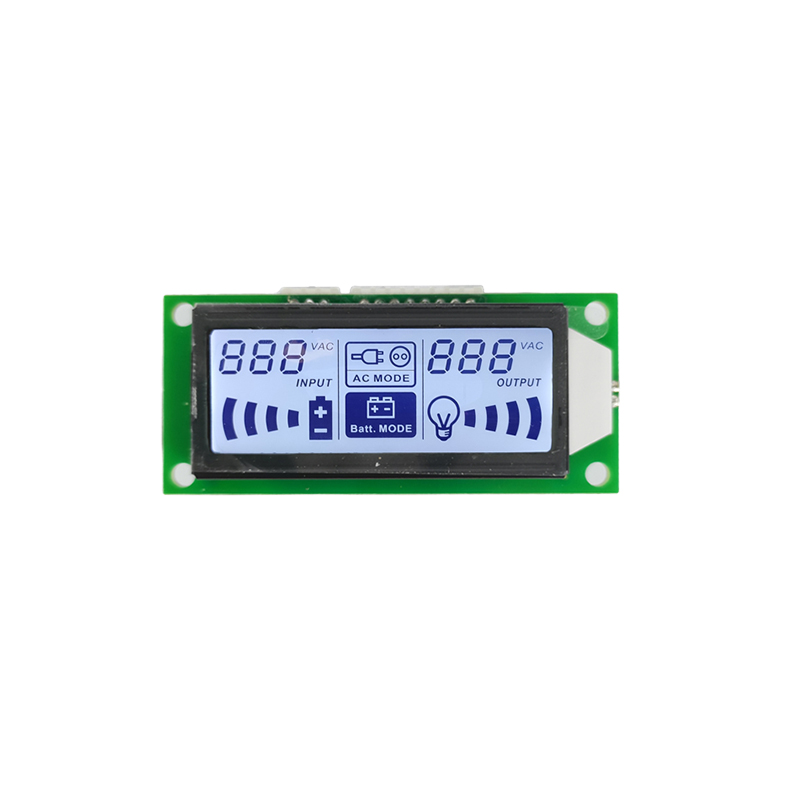

Custom 7 Segment LCD Display TN Positive Display
Jingda Display offers a high cost-effective Custom 7 Segment LCD Display TN Positive Display, designed for stable numerical readouts and ultra-low power consumption. Widely used in solar inverters and UPS devices.

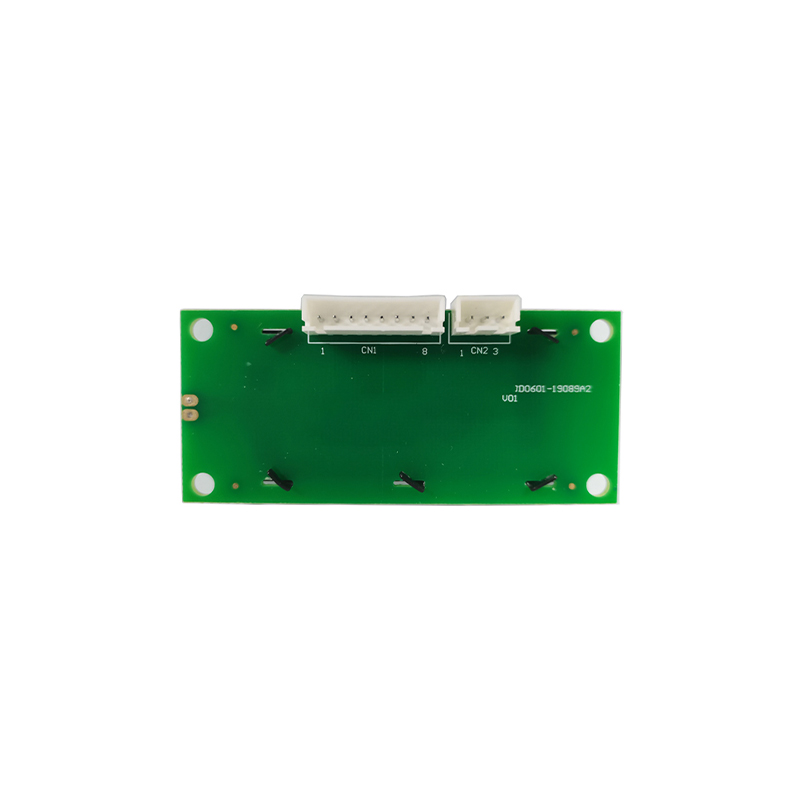

Product No.: JDA0601-19089A1
Display Type: TN/POSITIVE
Viewing Direction: 12 O’clock
POLARIZER TYPE: TRANSMISSIVE
CONNECTOR:ZEBRA
Send Inquiry
Product Description
Product Specifications of Custom 7 Segment LCD Display TN Positive Display
| Module Size | 68(W)x42(H)x18(T)mm | Display View Area | 53.5(W)x19(H)mm |
| LCD Type | TN/Positive | Drive IC | TYT1621 |
| Operating Voltage | 4.2V | Connector | ZEBRA |
| Operating Temp. | 0 to 50℃ | Storage Temp. | -10 to 60℃ |
Product Introductions
Jingda display's segment LCD screen of JDA0601-19089A1 module is widely used in solar inverters and UPS devices. The IC of the JDA0601-19089A1 module is TYT1621, the view angle is 12 o'clock, and the LCD display type is TN technology. It uses TN LCD technology with a positive display mode, making it suitable for electronic products that require stable numerical readouts, low power consumption, and cost-effective display solutions. Explore our full segment LCD display range for more options.
Why Choose the TN Segment Display?
A TN segment display offers several advantages for electronic manufacturers. In positive display mode, the background appears light, while activated segments appear dark. This creates a familiar numerical display that is easy to read under suitable lighting conditions.
1
Low Power Consumption
LCD technology requires very little power to operate compared with emissive display technology.
2
Cost-Effective Design
TN technology is suitable for high-volume applications with controlled production costs.
3
Clear Numerical Information
Seven-segment structures provide recognizable numerical characters.
4
Flexible Customization
Display patterns, icons, symbols, and dimensions can be designed according to customer requirements.
5
Long-Term Product Availability
Custom LCD glass designs can support consistent production for long-life electronic products.

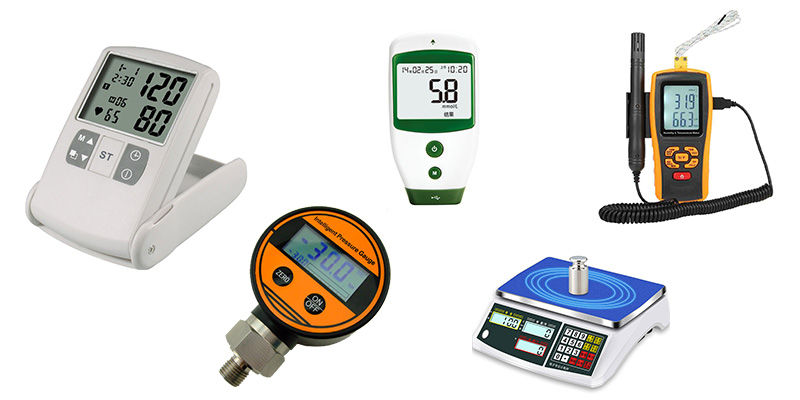

Applications Fields
The TN segment LCD display has low power consumption and is suitable for battery-powered instruments and household appliances.

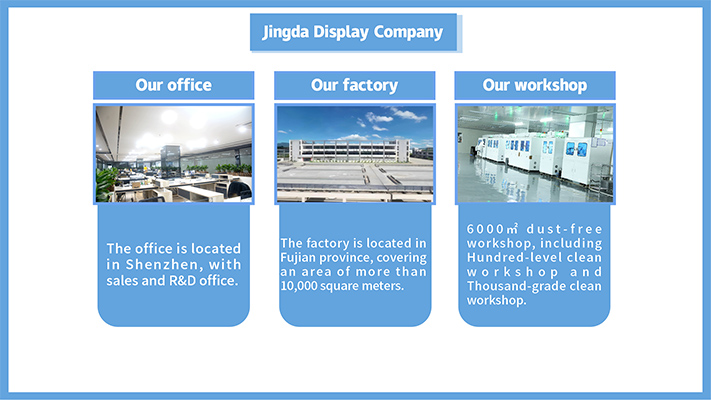

Jingda Display Company -- Your Trust Partner
Jingda Display is a professional and reliable Custom 7 Segment LCD Display TN Positive Display manufacturer and supplier located in China. The company has over 10 years of industry experience, focusing on the research and development, production, and sales of segmented LCD, thin-film transistor display screens, and organic light-emitting diode display screens. Check our company strength for more details.
Our Professional LCD Manufacturing Experience
- 1. More than 10 years of LCD industry experience.
- 2. Extensive experience in monochrome LCD and segment LCD display manufacturing.
- 3. Professional engineering support for customized projects.
- 4. OEM and ODM services.
Our main product categories include: TN, HTN, STN, FSTN, and VA segment LCD displays, Character LCD modules; Graphic LCD displays, CTP/RTP TFT display and PMOLED displays.
Packaging & Protection
1. ESD Protection: Anti-static bags or packaging are used when required for electronic modules.
2. Inner Protection: Cushioning materials are used to reduce transportation impact.
3. Outer Cartons: Strong export cartons provide additional protection.
FAQ
Can Jingda Display provide samples before mass production?
Yes. We can arrange sample development and evaluation according to the project requirements. Customers can verify display performance, mechanical dimensions, and electrical compatibility before confirming mass production.
What is the MOQ of segment LCD display?
For standard versions, the MOQ is flexible and low, often starting from 1 thousand pieces. For fully customized modules, the MOQ depends on the tooling and manufacturing setup; we will confirm the exact number with your specification.
Is this module RoHS compliant?
All the 7 segment LCD display is RoHS compliant, and the facility holds ISO9001:2015. CE declarations are available on request for the EU and US markets.
What connector options are available?
We support PIN (soldered), FPC (flexible printed circuit), zebra (elastomeric connector), and heat seal options. Choose based on your PCB layout and assembly method. View our full product catalog for more details.
