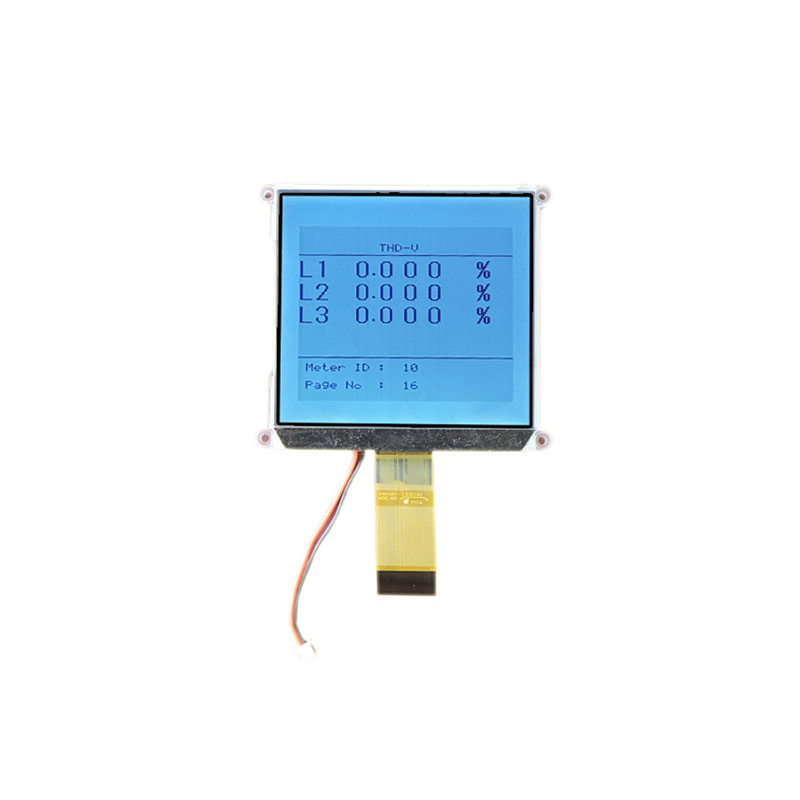

160×160 Monochrome Display Graphic FSTN LCD Display

Name: 160×160 Monochrome Display Graphic FSTN LCD Display
SKU: JDA160160-24333A1
Availability: InStock

JDA’s graphic LCD display modules offer long life and high reliability, suitable for continuous industrial and commercial use. JDA is typically equipped with backlighting, ensuring good visibility even in low-light environments. Customizable options like backlight color, screen size, viewing angle, and operating temperature range meet specific project requirements wide interface compatibility 160×160 monochrome display graphic FSTN LCD display white backlight.
Module No: JDA160160-24333A1
Drive IC: UC1698
Operating Temp: -20 to 70℃
View Angle: Wide viewing angle
View Area: 67.3*56.6

Send Inquiry

Rating: 5.0

(Rating Count: 1)

Product Description

Product Parameters of 160160 monochrome display graphic FSTN LCD display

LCD Size	70.3(L)×70.8(W)×5(H)mm	Display Method	1/160DUTY, 1/10BAIS
View Area	67.3(L)*56.6(W)	Operating Temp.	-20 to 70℃
LCD Type	FSTN	Storage Temp.	-30 to 80℃
View Direction	6 o’clock	Backlight	White
Drive IC	UC1698	Display Voltage	VDD=3.3V

Product Introductions of 160160 monochrome display graphic FSTN LCD display

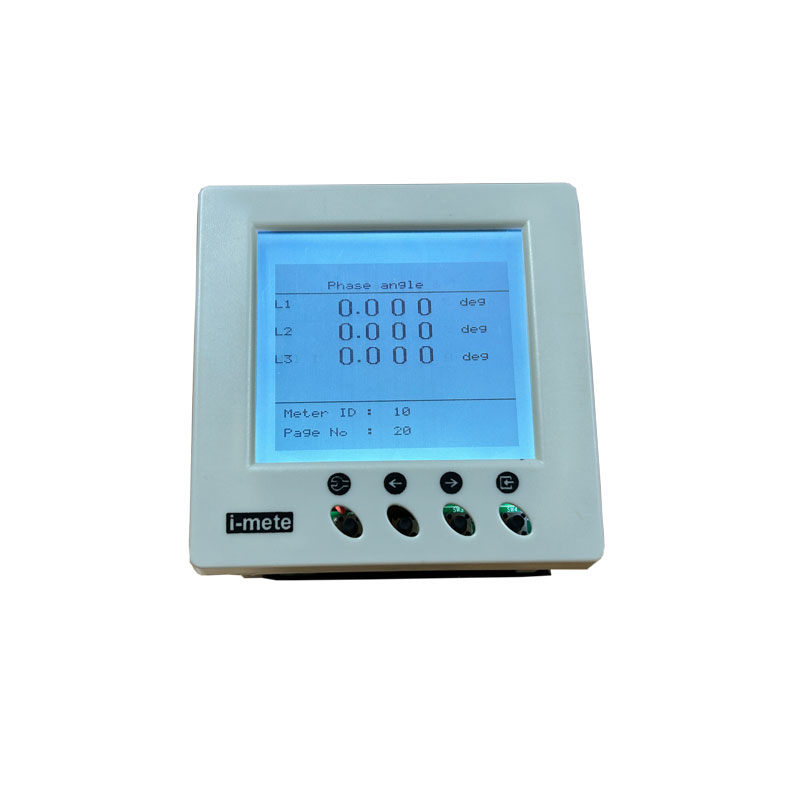

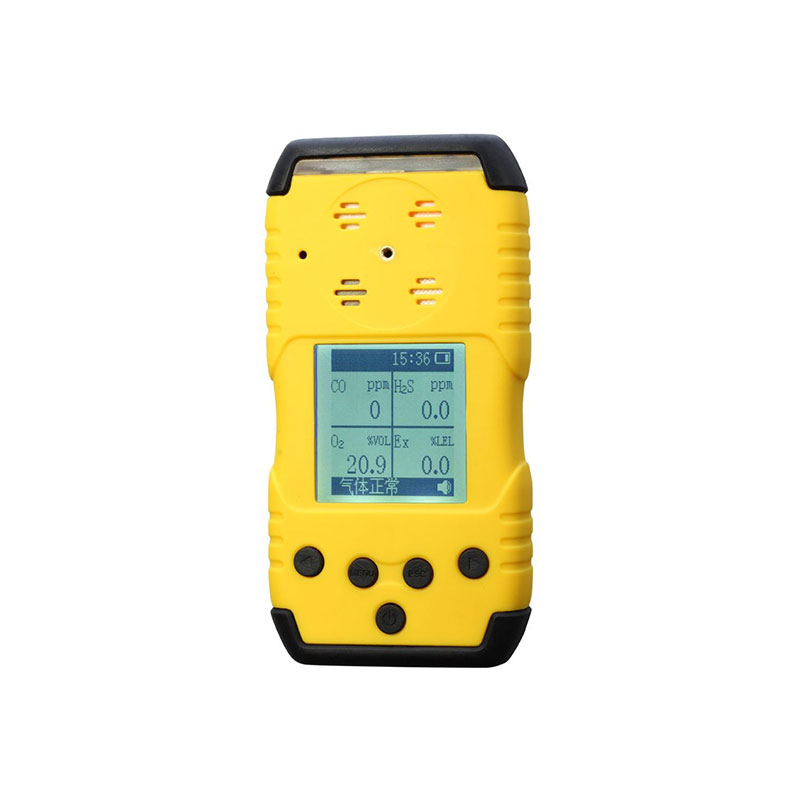

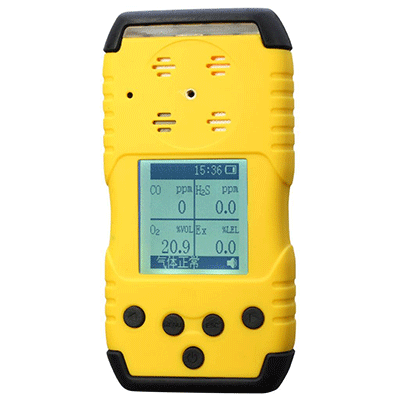

JINGDA-DISPLAY is China manufacturer and supplier who mainly produces 160×160 Monochrome Display Graphic FSTN LCD Display with many years of experience. The graphic LCD display of JDA160160-24333A1 module offers wide interface compatibility, including parallel, serial, and SPI protocols for easy communication with MCUs. And the drive IC of JDA160160-24333A1 is UC1698. The LCD display module is suitable for monitors, portable device, electricity meter, analytical instrument etc. The JDA160160-24333A1 module is of a customer-specific size, which is compatible with the size of the customer's electricity meter.

Applications

Company Profile

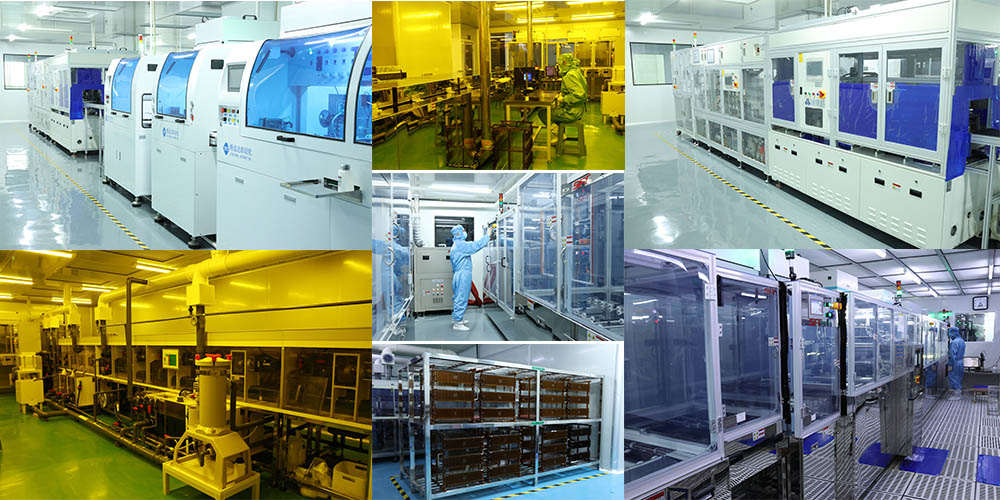

Shenzhen Jingda Display Technology Co., Ltd(JDA) is a professional manufacturer of monochrome LCD display, TFT display, OLED display and HMI solution in China. JDA has own factory in Fujian Province, it is more than 10,000㎡ and 6000㎡ dustless workshop was established in 2018.There are 450 employees, include 45 R&D engineers and 50 QC engineers. JDA owns more than 30 Production lines, including automatic LCD line, LCM, OCB, COG, TFT, TAB and SMT, monthly production is more than 20,000,000 pcs products.
