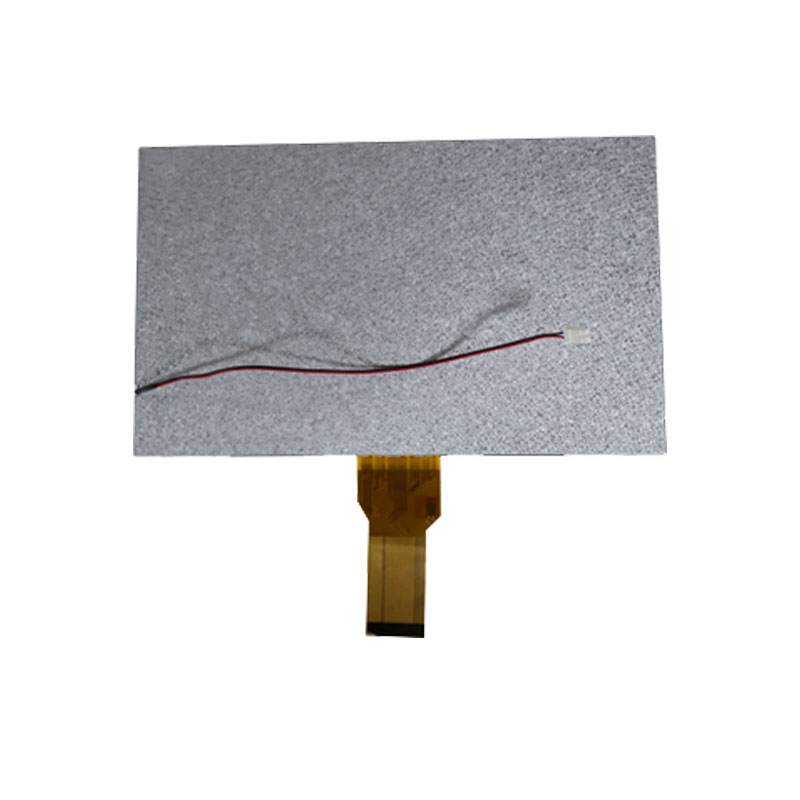

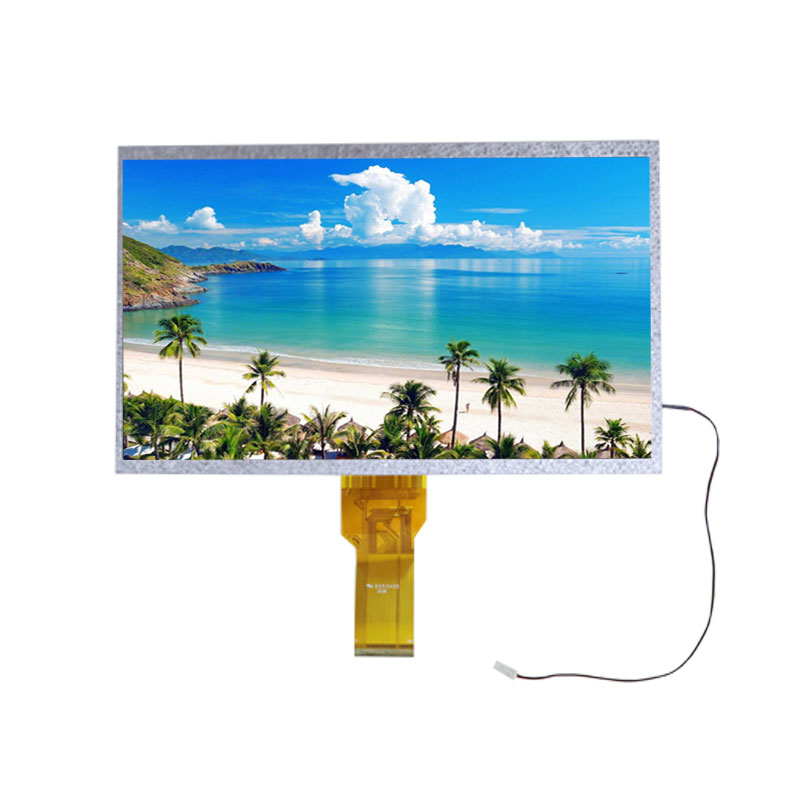

10.1 inch TFT Display TN Transmissive LCD Display
High-resolution 1280X800 or 1920x1080 10.1 inch TFT display TN transmissive LCD display.
Module No: JDAT0101-24088A1
Resolution: 1024 RGB*600
Drive IC: HX8282-A01&HX8696-A01
Interface: 24-Bit RGB
View Angle: Wide viewing angle
Send Inquiry
Product Description
Product Parameters
| Module Outline | 235(H)×143(V)×4.9(T)mm | Interface | 24-Bit RGB Interface |
| Resolution | 1024 RGB*600 | Operating Temp. | -20 to 70℃ |
| LCD Type | TN TFT | Storage Temp. | -30 to 80℃ |
| View Direction | 12 o’clock | Backlight | 27 White LEDs |
| Drive IC | HX8282-A01&HX8696-A01 | BL Voltage/Current | 9.4V/180mA |
Product Introductions

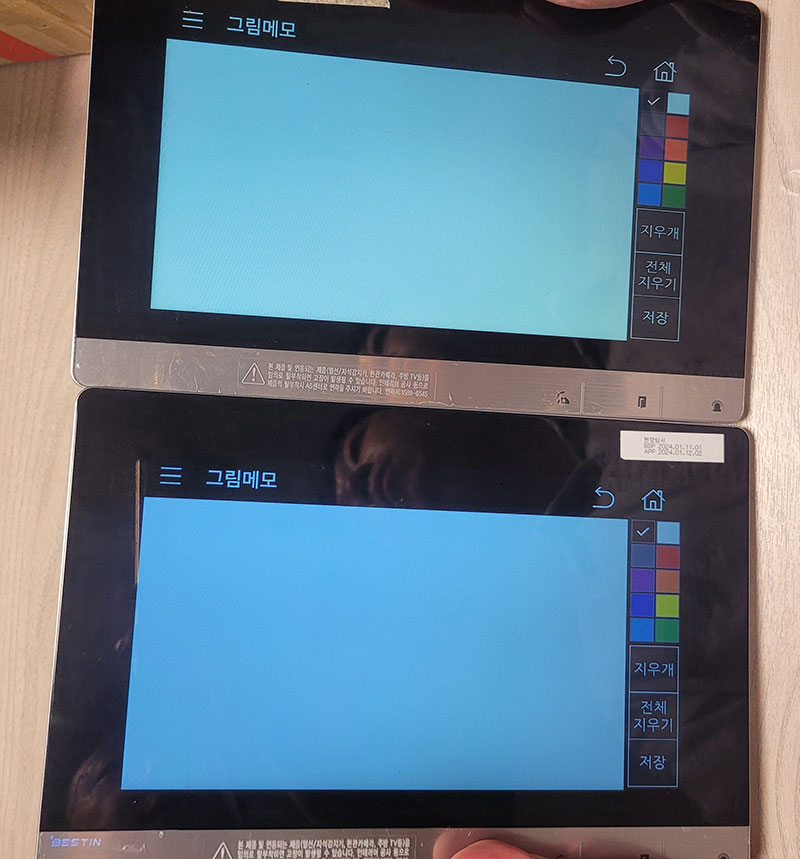

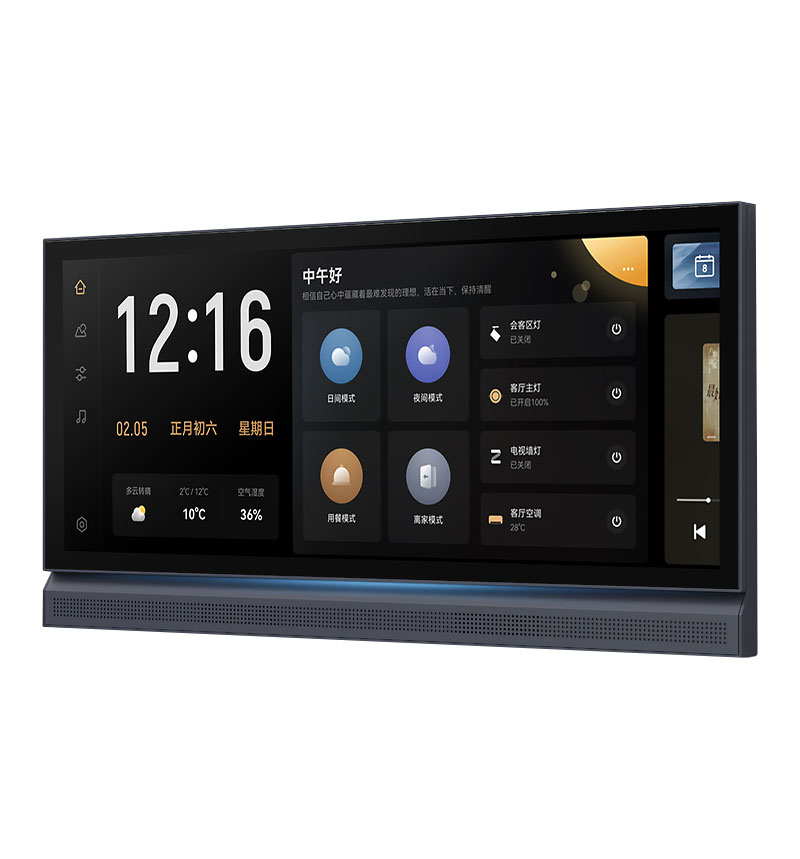

The 10.1 inch TFT Display TN Transmissive LCD Display is a popular display technology widely used in various applications. It is widely used to Tablets, Smart Home Control Panels, Automotive Electronics, HMI, monitoring displays and so on. The drive IC of JDAT0101-24088A1 module is HX8282-A01&HX8696-A01. JDA Support customized display of PFC and drive IC according to the client’s needs.
Applications
