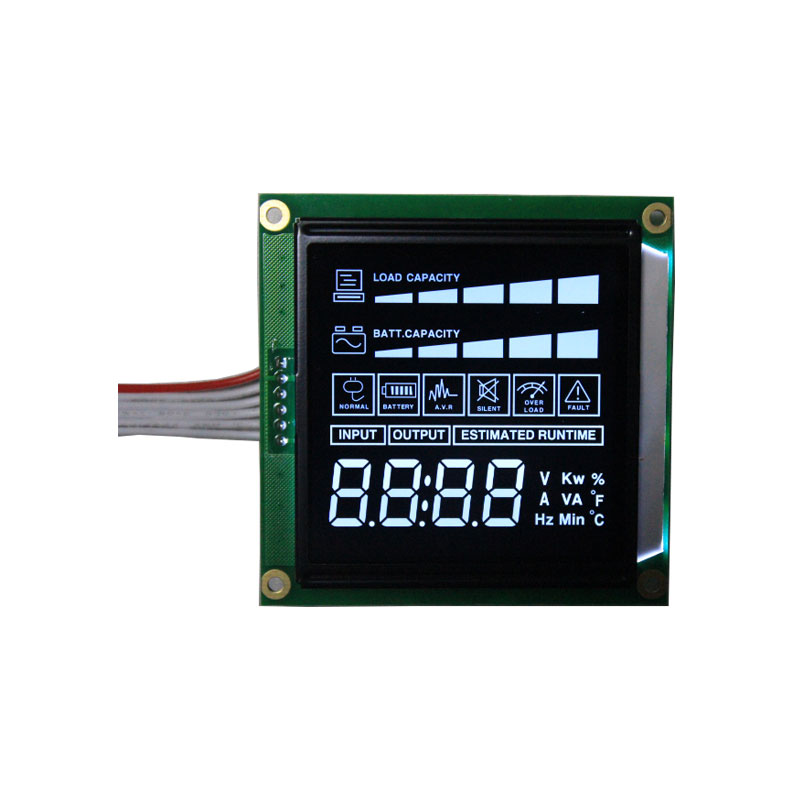

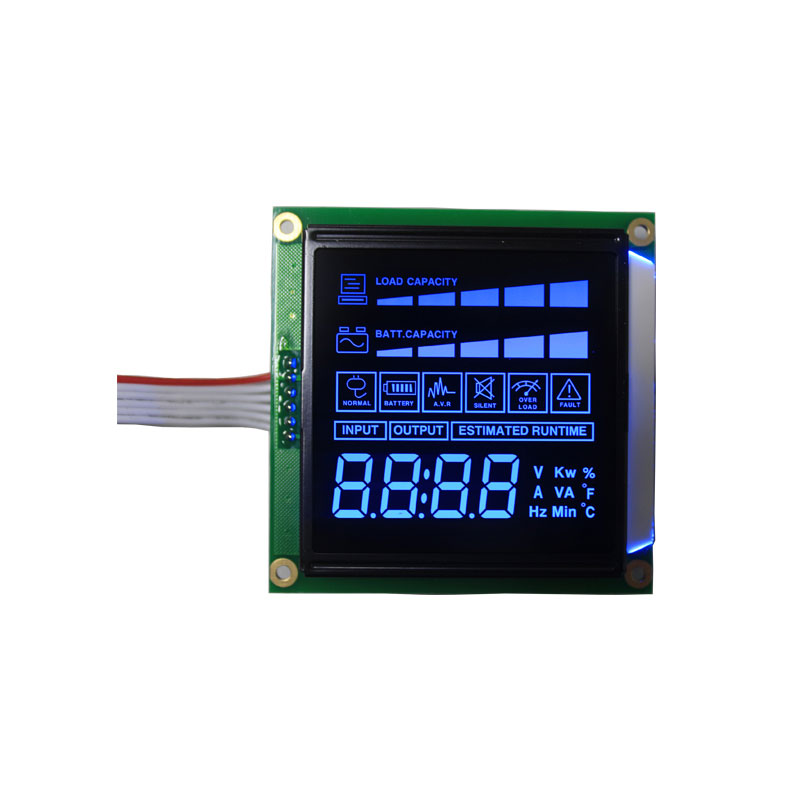

7 Segment LCD Display VA HTN Negative LCD Display
This wide-temperature 7 Segment LCD Display VA HTN Negative LCD Display offers high cost-effectiveness and ultra-low power consumption.

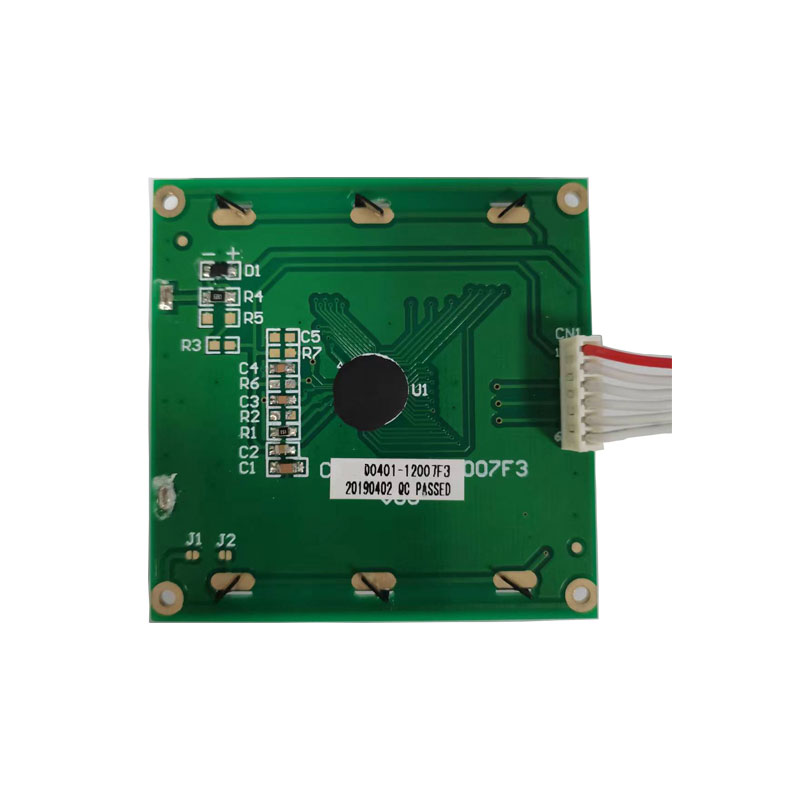

Module No: JDA0401-12007F3
Technology: COB technology
Operating Temp: -20 to 70℃
View Angle: Wide viewing angle
Drive IC: TCP802-01
Ideal for industrial instruments and medical devices. Contact us for custom tooling and a 24-hour quote.
Send Inquiry
Product Description
Low Power Consumption 7 Segment LCD Display VA HTN Negative LCD Display
JINGDA DISPLAY has been focusing on the segment LCD field for over a decade, providing highly cost-effective visual solutions. Segmented displays remain the ultimate choice for basic information due to their simple structure and ultra-low power consumption. This 7 Segment LCD Display VA HTN Negative LCD Display (Module No: JDA0401-12007F3) supports customized characters and symbols, making it perfect for displaying precise readouts in Industrial Instruments, Automotive Electronics, and Medical Devices.
| Product Parameters | |
|
Module Size 67(W)×67(H)×11(T) mm |
Display VA 51(W)×51(H) mm |
|
LCD Type VA / HTN Negative |
Technology COB |
|
Drive IC TCP802-01 |
Backlight Drive Type Power/ +5V/ Blue |
|
View Angle 12 o'clock |
Operating Temp. -20 to 70℃ |
|
Storage Temp. -30 to 80℃ |
Humidity / Weight 90% max / 0.051kg |
Engineered for Demanding Applications
With its wide temperature operation and high-contrast VA negative mode, this display guarantees excellent readability even in challenging environments. It is widely deployed in:
▸ Industrial Instruments - test and measurement equipment, power tools.
▸ Automotive Electronics - dashboard readouts and charging station interfaces.
▸ Medical Devices - patient monitors and diagnostic machines requiring reliable data displays.
|

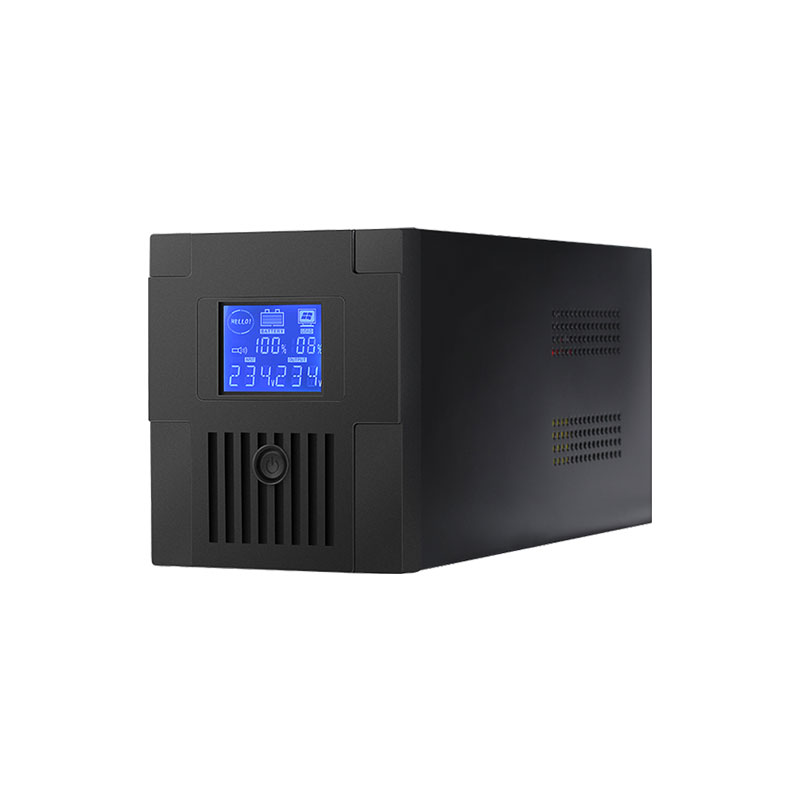

7 Segment LCD Display used in UPS devices. |

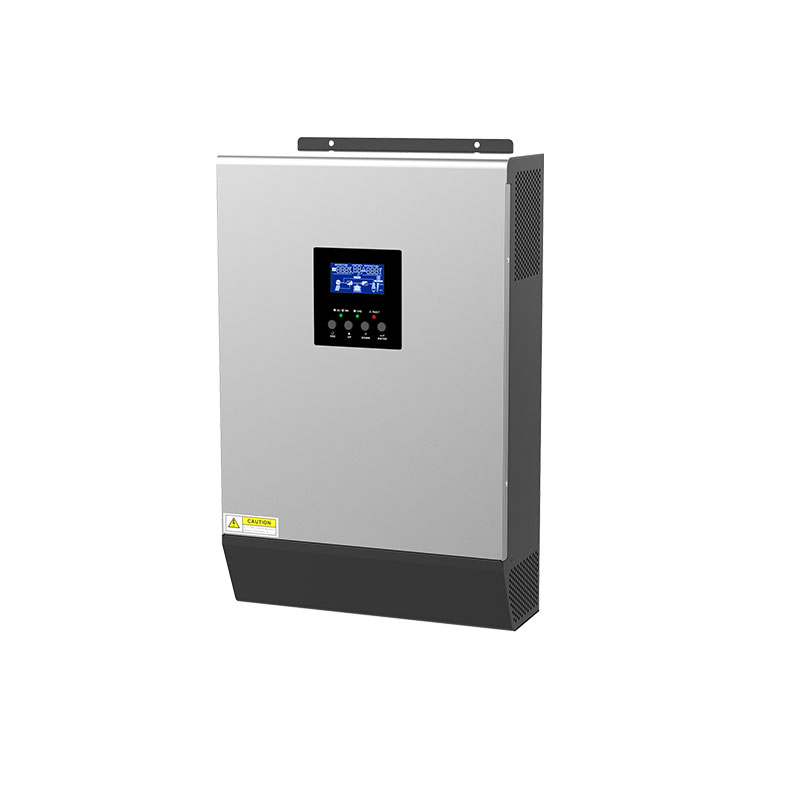

7 Segment LCD Display used in power inverters. |
Our R&D and Manufacturing Expertise
JINGDA adopts a pilot production line model, allowing customers to transition from drawings to physical samples in just 2 weeks. Our engineering team specializes in:
1. COG, COB, and SMT assembly processes.
2. Selection of STN/FSTN/TN liquid crystal materials and polarizers.
3. Custom driver IC matching for MCU interfaces (SPI, I2C, parallel).
4. Mechanical design, FPC layout, and backlight optimization.
|
JINGDA Display clean-room workshop and production lines.
ISO9001, ISO14001, IATF-16949 Certifications and Patents. |
We hold ISO9001:2015, ISO14001, IATF-16949 system certifications, and CE declarations. If you are looking for alternative display solutions, we also offer the Segment LCD Display HTN Blue Module LCM Display and the highly contrasted Segment LCD Display VA Negative LCD Mode. For more options, review our main Segment LCD Display category.
Frequently Asked Questions
| What is the lead time for samples and mass production? | For samples, if in stock, lead time is 1 week. Mass production is commonly 35-40 days after sample approval, varying with order quantity and material availability. |
| Can you customize the viewing area, backlight color, or FPC length? | Yes. Viewing area, module outline, backlight color (white, yellow-green, blue, amber), polarizer type, viewing angle, FPC length/pitch, and connector type are all customizable within tooling and MOQ constraints. |
| What is the warranty period? | Our standard warranty is 12 months from shipment, covering manufacturing defects. Long-term reliability data and aging test results are available on request. |
| What is the minimum order quantity (MOQ)? | For standard versions, the MOQ often starts from 1 thousand pieces. For fully customized modules, the MOQ depends on the tooling and manufacturing setup. We will confirm the exact number with your specification. |
