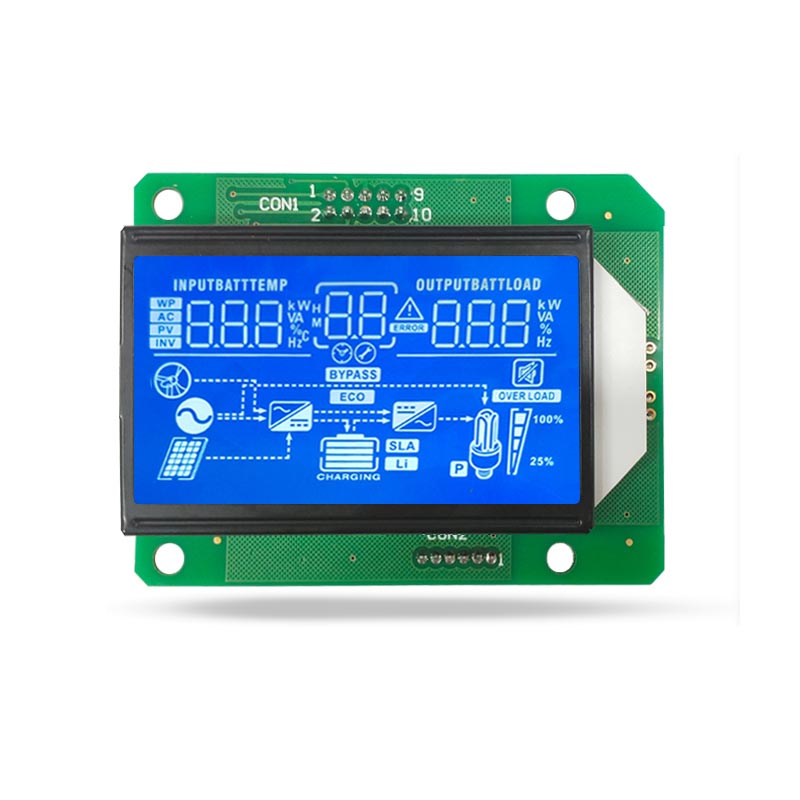

Segment LCD Display HTN Blue Module LCM Display

Factory wholesale segment LCD display TN HTN module COB display support customized

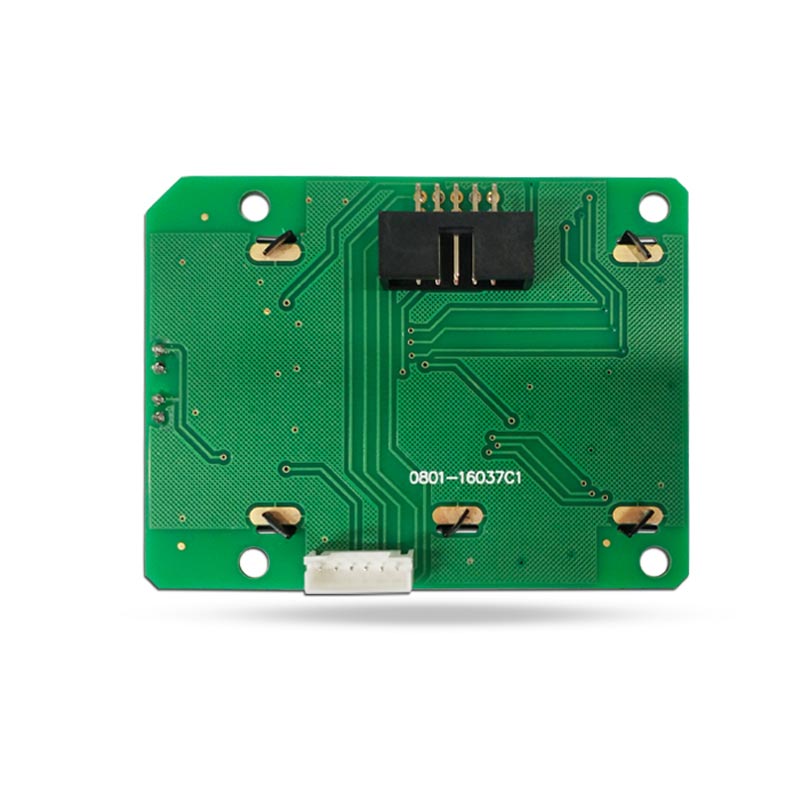

Module No: JDA0801-16037C1
Technology: COB technology
Operating Temp: -10 to 60℃
View Angle: Wide viewing angle
Drive IC: HT1621

Send Inquiry

Product Description

Product Parameters

Module Size	76(W)×58(H)×10.6(T)mm	Operating Voltage	5.0V LCM
Display VA	60(W)×32.5(H)mm	Operating Temp.	-10 to 60℃
LCD Type	HTN/Blue	Storage Temp.	-20 to 70℃
View Angle	12 o’clock	Drive Method	1/4 DUTY, 1/3 BIAS
Drive IC	HT1621 or compatible IC	Backlight	White

Product Introductions

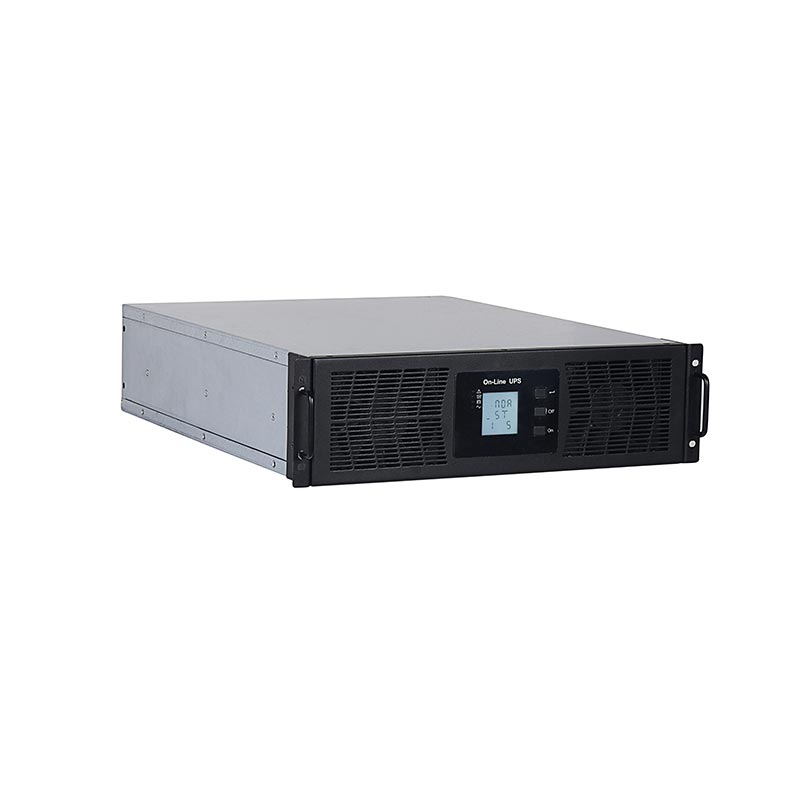

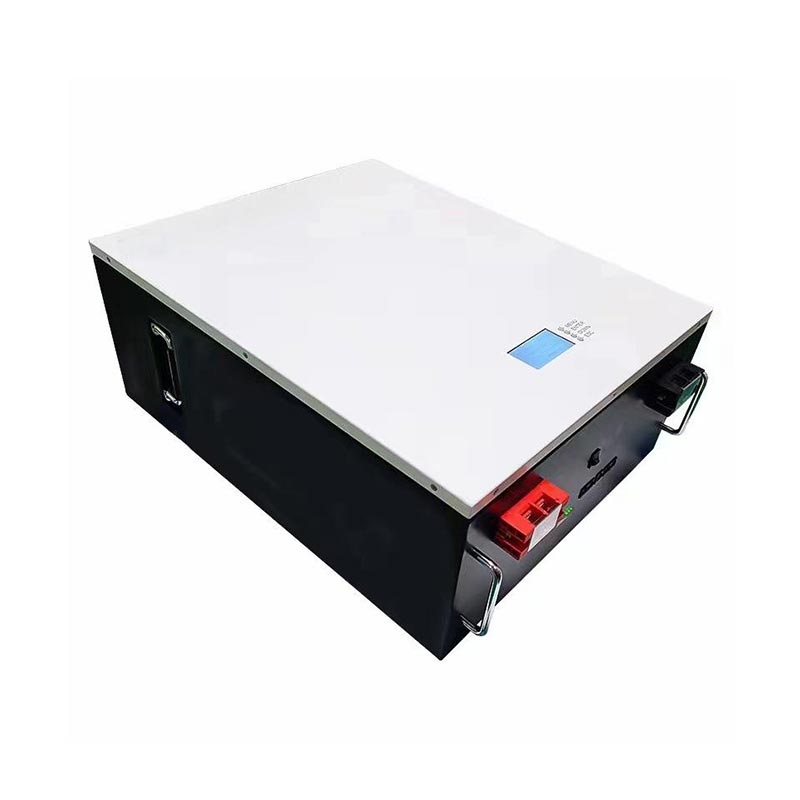

JINGDA-DISPLAY is a leading China segment lcd display HTN blue module lcm display manufacturer. This segment LCD display of JDA0801-16037C1 module is widely used to Solar Inverter, UPS. The IC of JDA0801-16037C1 module is HT1621, and the display is LCM display module. We have provided this segment display module to domestic and foreign customers for use in solar inverter equipment. Ant the LCD display have a long lifespan with 10 years.
