VA Full Viewing Angle Segment LCD Display for Solar Energy
This high-brightness VA Full Viewing Angle Segment LCD Display for Solar Energy delivers clear visibility from any angle for demanding outdoor applications.
Module No: JDA-TV0154009A
Resolution: 240*RGB*240
Drive IC: ST7789V
Panel Type: IPS
Luminance: 250cd/㎡
Ideal for solar battery maintainers and chargers. Contact us for custom solutions and a 24-hour quote.
Send Inquiry
Product Description
|
Clear & Reliable VA Full Viewing Angle Segment LCD Display for Solar Energy |
The VA Full Viewing Angle Segment LCD Display for Solar Energy offers exceptional visibility from any direction. Unlike standard LCDs that fade when viewed from the side, this VA panel ensures the content remains sharp and consistent. It is specifically engineered for demanding environments like solar battery maintainers, chargers, medical equipment, and industrial devices.
|
LUMINANCE 800 cd/m² |
VIEWING ANGLE VA Full Viewing Angle |
OPERATING TEMP -20~70℃ |
Technical Parameters
|
Module Size 60 × 35 × 1.1 mm |
Active Area 54 × 31 mm |
|
Luminance 800 cd/m² |
Backlight 6 White LEDs |
|
Panel Type VA Full Viewing Angle |
Connector PIN |
|
Operating Temp. -20 to 70℃ |
Storage Temp. -30 to 80℃ |
Key Features & Applications
This VA Full Viewing Angle Segment LCD Display for Solar Energy excels in minimalism, extremely low cost, and low power consumption. It is an ideal choice for applications with fewer segments (usually less than 32 segments), a long product life-cycle, and strict cost sensitivity.
|
Key Features ▸ High brightness reaching up to 800 nits for outdoor readability. ▸ VA full viewing angle maintains consistent display effects. ▸ Wide operating temperature of -20 to 70℃. |
Main Applications ▸ Solar energy devices (Battery Maintainers & Chargers) ▸ Medical equipment and monitors ▸ Industrial control and testing equipment |
|

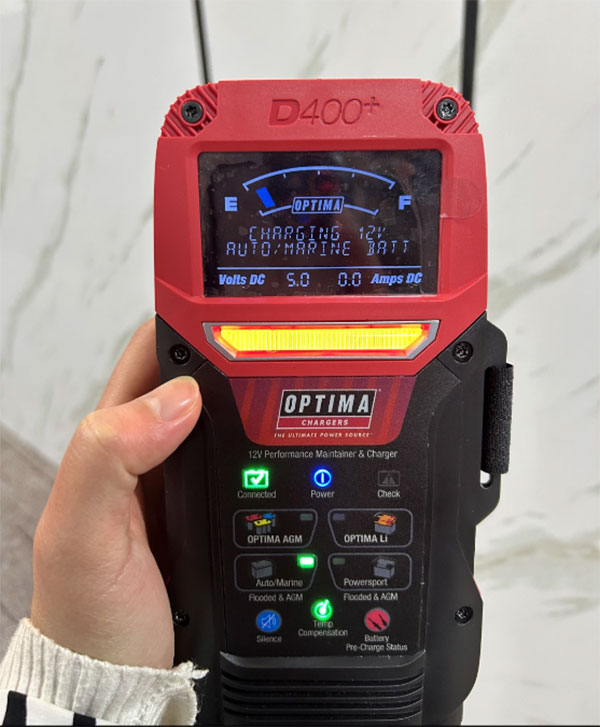

VA segment LCD used in smart battery chargers. |

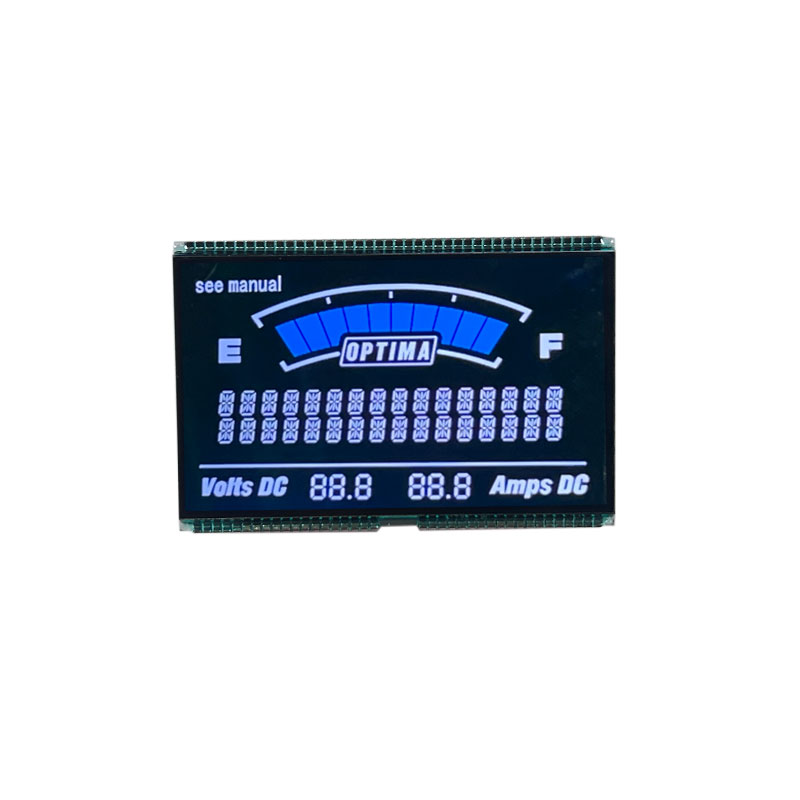

VA full viewing angle display in battery maintainers. |
Customized Display Solutions
We understand that each industry has different requirements. Whether you need a standard VA Full Viewing Angle Segment LCD Display for Solar Energy or a fully tailored module, JINGDA can customize:
▸ Display icons, numbers, and segmented arrangements.
▸ LCD glass size and thickness.
▸ Backlight color and brightness, PCB size and mounting holes.
▸ FPC/PIN connector configuration and working voltage/temperature requirements.
|
Shenzhen Jingda Display Technology Co., Ltd. |
To compare with other display solutions, explore our Segment LCD Display category. Please view our highly contrasted Segment LCD Display VA Negative LCD Mode, or our Monochrome Segment LCD Display STN Blue LCD Screen. For text-based interfaces, our Character LCD Display is a reliable option.
FAQ
| Can Jingda Display customize a segment display? | Yes. We support customized LCD glass dimensions, segment patterns, display icons, operating voltage, PCB structures, viewing directions, and connection methods according to customer drawings and technical requirements. |
| Can you provide samples before mass production? | Yes. We support prototype and sample development for customized segment LCD modules. The usual delivery time for customized samples is 15-20 days after confirming the drawings. |
| Is this module RoHS compliant? | Yes. All the segment LCD displays are RoHS compliant, and the facility holds ISO9001:2015. CE declarations are available on request for the EU and US markets. |
| What is the warranty period? | Our standard warranty is 12 months from shipment, covering manufacturing defects. Long-term reliability data and aging test results are available on request. |
