Segment LCD Screen Monochrome LCM Module

JINGDA DISPLAY’s segment LCD screen monochrome LCM module is a cost-effective, low-power display solution widely adopted in industrial, commercial, and consumer electronic devices. As a professional LCD display manufacturer with decades of industry experience, JDA specialize in custom and standard segment LCD displays, COB LCD display, and LCM module products, covering monochrome segment screens, graphic screens, and character LCD screens.
Technology: COB technology
Working Environment: Wide temperature operation
View Angle: Wide viewing angle

Send Inquiry

Product Description

Product Introductions

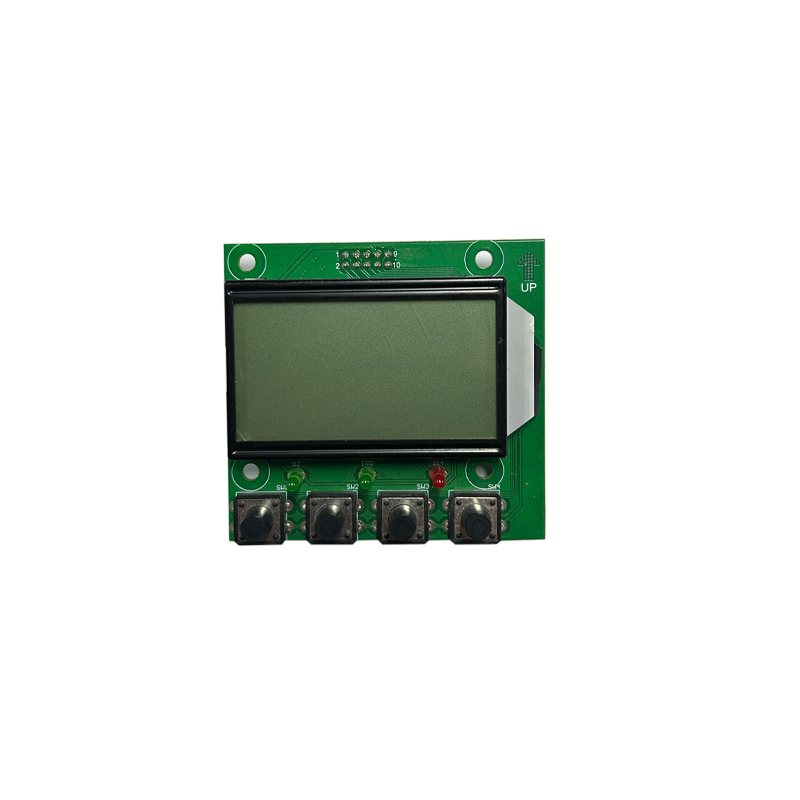

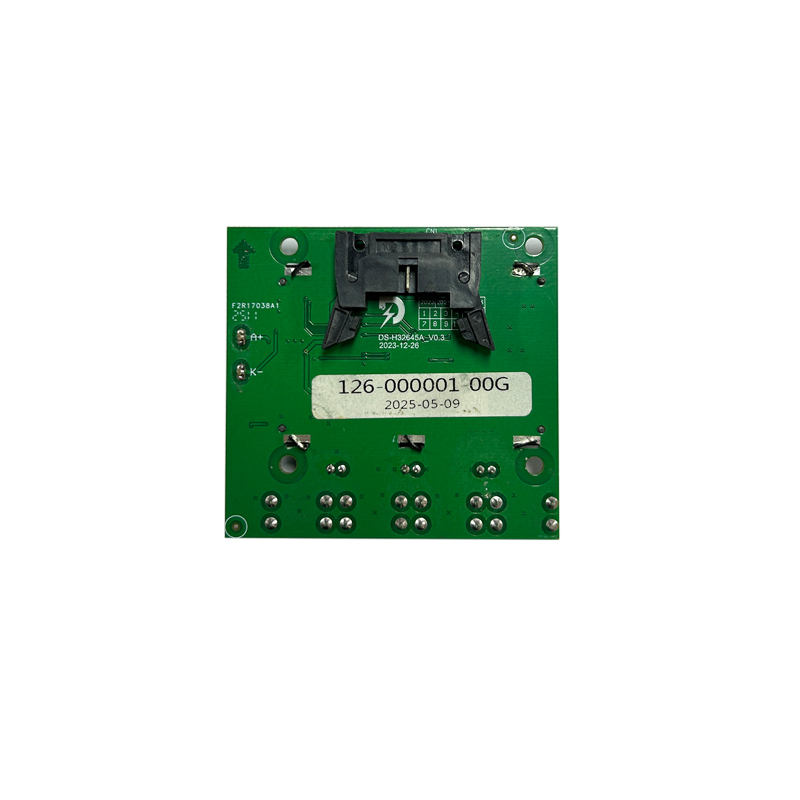

The Segment LCD Screen Monochrome LCM Module is a packaged liquid crystal display unit with fixed segment patterns, single-color display output, and integrated drive circuits. Different from full-color graphic LCDs, it features fixed display segments for numbers, symbols, and simple text, focusing on stable data display with ultra-low power consumption. JINGDA DISPLAY's segment lcd display is mainly used for inverter devices.

The Parameters of Segment LCD Screen Monochrome LCM Module

Display VA	60(W)×32.5(H)mm	Operating Voltage	5.0V LCM
LCD Type	HTN/Blue	Operating Temp.	-10 to 60℃
View Angle	12 o’clock	Storage Temp.	-20 to 70℃
Drive IC	HT1621 or compatible IC	Backlight	White

The advantage of 7 segment LCD Display Module

With rich manufacturing experience in monochrome segment LCD displays, graphic LCD displays, and character LCD screens, JDA‘s segment LCD display and COB LCD display products have obvious competitive advantages in stability, customization, and cost performance.

Ultra-low power consumption: Static and dynamic drive modes support low-voltage operation, effectively reducing device standby power consumption

High stability and durability: Passed 1000-hour high and low temperature aging tests, with no flicker or ghosting in long-term operation

Strong environmental adaptability: Support sunlight-readable display, anti-glare, and anti-static designs for harsh working environments

About JINGDA DISPLAY

Jingda Display is a professional manufacturer specializing in the R&D, production and customization of LCD, TFT and OLED display screens, with more than 10 years of in-depth industry experience in segment display manufacturing. Focusing on industrial power display solutions, we have accumulated rich customized service experience for power equipment such as UPS and inverters. Our core product line covers high-stability UPS LCD display, high-adaptability Inverter LCD display and durable industrial-grade segment LCD screen, which are widely recognized by global industrial equipment manufacturers. Adhering to strict production standards and customized design concepts, we provide one-stop display solutions for commercial and industrial power equipment worldwide.
