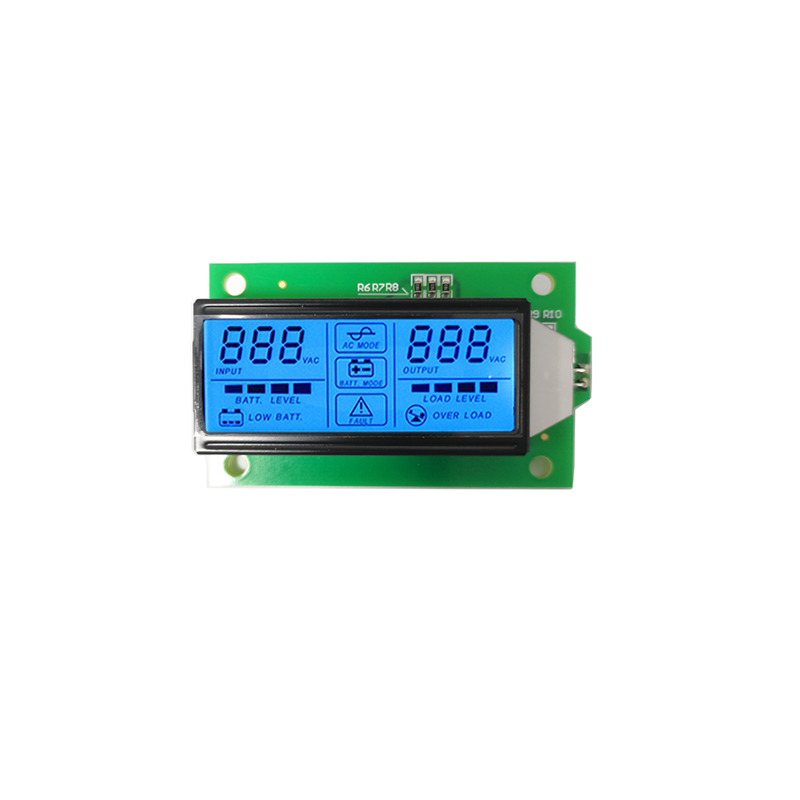

Segment LCD Screen Module TN Positive Display Module

Jingda display company as a professional manufacturer of monochrome LCD display with segment lcd screen module TN positive display module for many years. This display module adopts TN technology and provides monochrome images with cost efficient, wider viewing angle, and clearer display effect. JDA adopts fully automated production lines and advanced COG (Chip On Class) packaging technology to ensure product consistency and high reliability.

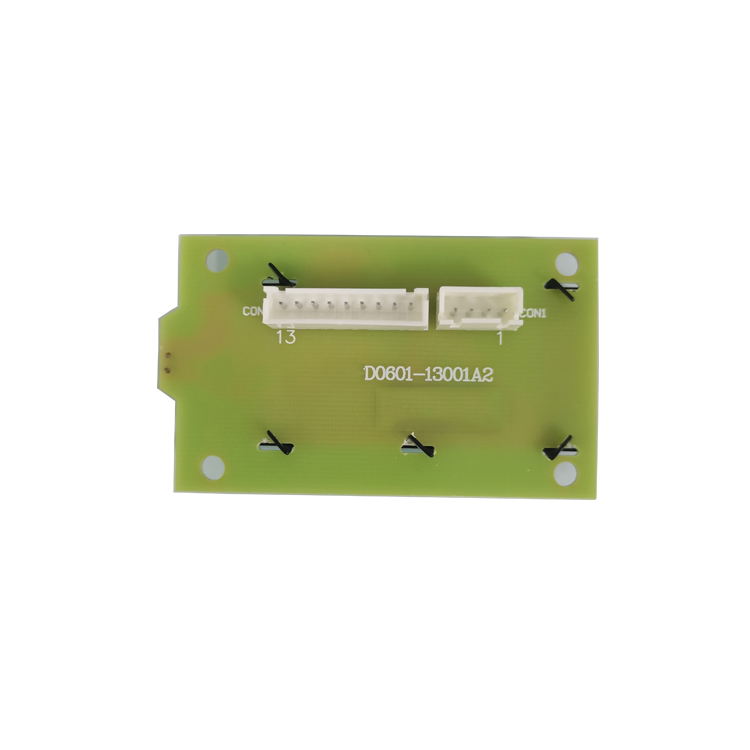

Product No.: JD0601-13001A2
Drive IC: TYT1621
Display Type: TN/Positive
View Angle: Wide viewing angle

Send Inquiry

Product Description

Product Parameters

Display Size	68(W)x42(H)x18(T)mm	Viewing Direction	12 O’clock
Display View Area	53.5(W)x19(H)mm	Display Type	TN/POSITIVE
Drive IC	TYT1621	Backlight	White
Operating Temp.	0 to +50℃	Storage Temp.	-10 to +60℃

Product Introductions

JDA is vertically focused on manufacturing and innovating monochrome LCD display, including segment LCD display, character LCD display and graphic LCD display, TFT displays and OLED displays. The connector of JDA’s 0601-13001A2 module is ZEBRA. The segment LCD screen module TN positive display module is the most common and widely used segment code LCD solution in the market, and its advantages are very prominent. TN mode is the oldest and most mature technology for LCD, with a simple and stable production process and a high yield rate and the overall BOM cost has been reduced.

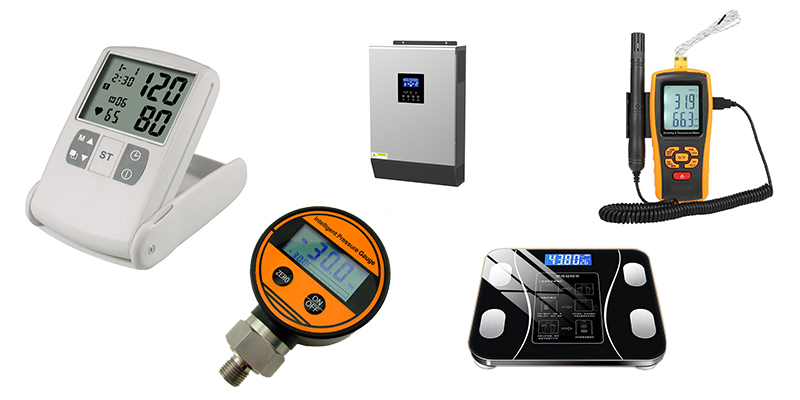

Applications

The core advantages of TN positive display segment LCD modules can be summarized as follows: that as clear as printing in ambient light, extremely low power consumption, extremely low cost, and stable and reliable. It is mainly applied in the following scenarios:

Consumer Electronics: Calculators, smartwatches, electronic scales, small appliance panels (microwave ovens, rice cookers).

Industrial Instruments and Measuring Equipment: Multi-meters, thermometers, hygrometers, pressure gauges, flow meters.

Smart Meters: Water meters, electricity meters, gas meters (thanks to their ultra-low power consumption).

About JDA

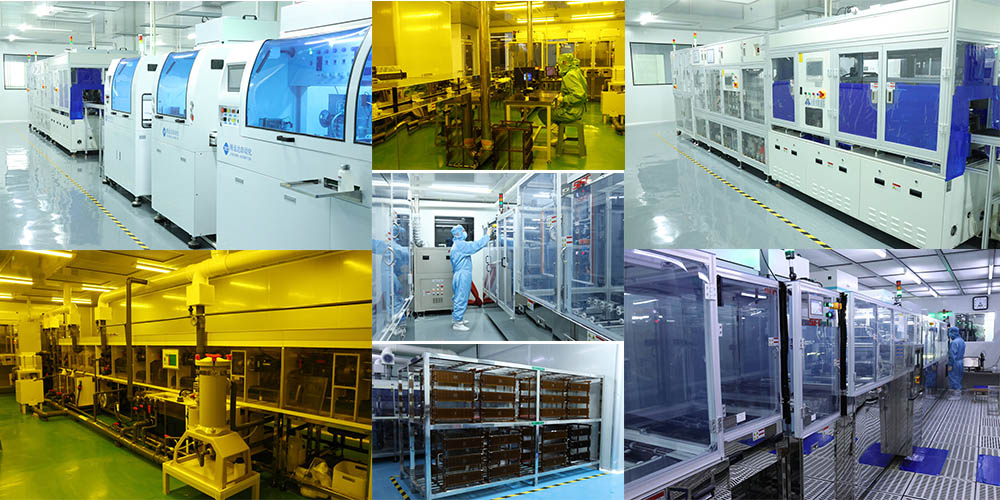

Shenzhen Jingda Display Technology Co., Ltd is a professional manufacturer of LCD liquid crystal display screens, specializing in the research and development, production and sales of industrial and commercial display solutions. The company's product line covers a variety of standard LCD modules, TFT display modules and customized display screens, which are widely used in industrial control, medical devices, smart home, in-vehicle displays, consumer electronics and Internet of Things devices and other fields. JDA factory Equipped with more than 30 product line in our factory, including fully automated LCD display production line, LCM, COG, OCB, TFT, TAB and SMT technologies. Our factory has various LCD display manufacture technologies, with extremely high production flexibility and efficiency.
