Segment LCD display for PV Inverter Solar Inverter

Jingda Display’s high-performance segment LCD display is professionally customized for PV inverters and solar inverters, serving as the core inverter display solution for residential, commercial and industrial solar power systems. Adopting industrial-grade monochrome display technology, this monochrome segment LCD display for PV inverter solar inverter features stable operation, low power consumption and strong environmental adaptability, perfectly matching the long-term outdoor and high-load working conditions of solar inverters. Different from dot-matrix LCD screens, segment LCD displays focus on fixed data and icon display, enabling real-time and intuitive presentation of inverter operating parameters, fault codes and power generation status.

Send Inquiry

Product Description

Introductions

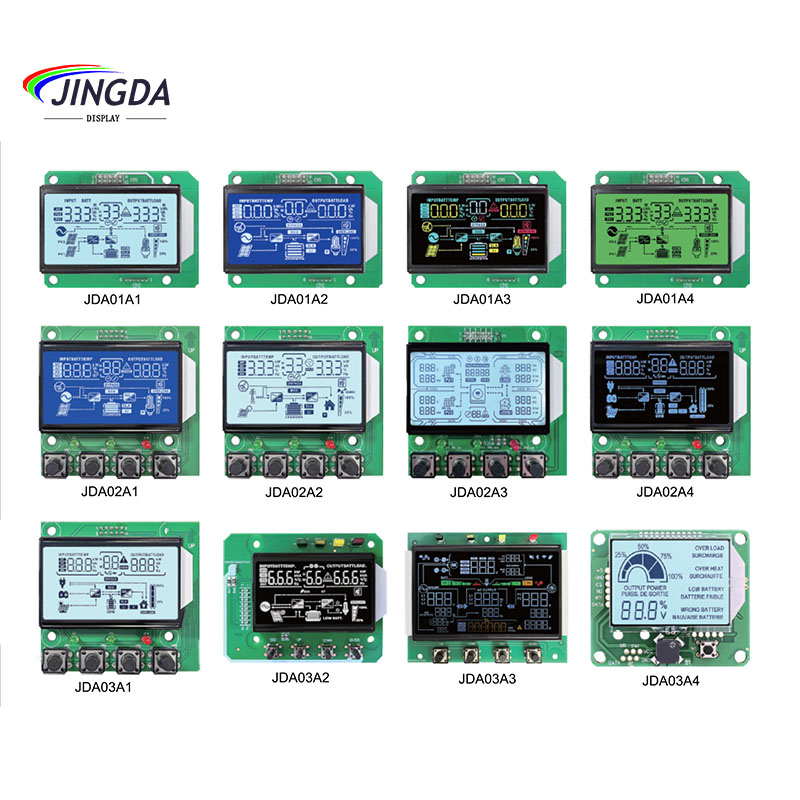

Jingda Display as a professional manufacturer of 7 segment LCD display for PV inverter solar inverter in China. These segment lcd display screens are specifically designed for inverters and have been verified multiple times in the market, with high-quality LCD products. JDA’s segment LCD displays is specifically designed for PV inverters and solar inverter applications. It delivers critical real-time information—voltage, current, power output, battery status, and system warnings--at a glance.

Parameters of PV solar SEGMENT LCD DISPLAY

1. Display Type: Industrial segment monochrome LCD display, custom fixed segments for solar inverter dedicated use

2. Display Content: Real-time PV input voltage, battery voltage, AC output voltage/frequency, load power, charging/discharging status, grid connection status, over voltage/overload/over temperature fault codes, system version information

3. Display Resolution & Segment Design: Custom 60-120 segment layout, exclusive icon area for solar power system status identification Visual Performance: High contrast ratio >300:1, wide viewing angle (horizontal 60°, vertical 45%), no color deviation or blurring

4. Working Voltage: 3.3V-5V DC (standard industrial voltage), matching mainstream solar inverter power supply modules

5. Backlight Option: LED blue/white/green backlight optional, uniform light emission, no dark areas, low heat generation

Reliability and Environmental Test

Test Category	Specific Test	Condition reference
Climate endurance	High/low operating Temp.	Operate continuously at high or low temperature, e.g. 70°C±2°C or -20°C±2°C for 48 hours.
	High/low temperature storage	Store non-operating at extreme temperatures, e.g. 80°C±2°C or -30°C±2°C for 48 hours.
	Damp heat (steady state)	Operate in high temperature and high humidity, e.g. 60°C, 90% RH.
	Temperature/humidity cycling	Rapidly cycle between extreme high and low temperatures, e.g. from -30°C to 70°C, to test reliability under expansion/contraction.
Mechanical strength	Vibration test	Simulate transportation and use vibration,e.g. swept frequency at 10Hz-55Hz with 1.5mm amplitude.
Life verification	Burn in/aging test	Continuously power on all units for a long period (e.g. 48168 hours) to eliminate early failures.

Applications

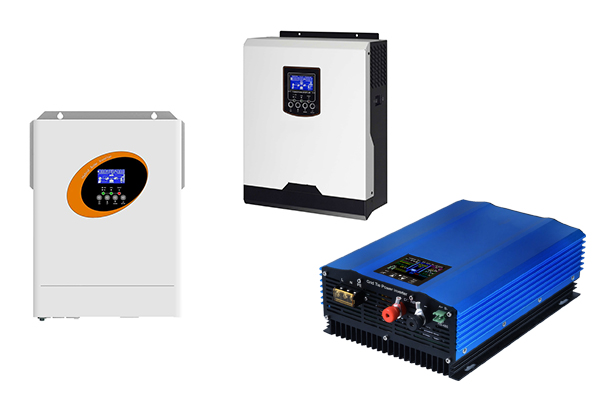

This professional segment LCD display is specially designed for all types of solar power inverter equipment, including off-grid solar inverters, on-grid PV inverters, hybrid solar inverters, home energy storage inverters and commercial industrial solar power generation inverters. It is the standard matching monochrome LCD display and inverter display accessory for global solar new energy equipment manufacturers.

Q1: Why choose a monochrome LCD display instead of a color screen for solar inverter?

A1: Solar inverters prioritize stability, low power consumption and cost performance in practical application scenarios, making monochrome LCD display the optimal choice. First, monochrome segment LCD screens have simpler structure, stronger anti-interference ability and no display failure caused by electromagnetic interference of power equipment, which is more suitable for high-power inverter working environments.

Q2: What environmental resistance capabilities does the PV inverter segment LCD display have?

A2: This industrial-grade segment LCD display is specially optimized for the harsh working environment of PV inverters. It supports a wide working temperature range of -30℃ to +80℃, which can adapt to high-temperature outdoor exposure in summer and low-temperature cold weather in winter, without display shutdown or data distortion.

Q3: Does the monochrome LCD display support customized segment layout and backlight?

A3: We provide full personalized customization services for monochrome LCD display for PV inverters. According to customers’ inverter functional design requirements, we can customize exclusive segment icons, display digit positions, text logos and fault code definitions.

Why Choose Jingda Display Company?

If you are looking for segment LCD display for solar or UPS device, please considering JINGDA DISPLAY for your option, JDA’s segment LCD display has undergone real-world testing and has been developed and manufactured by Jingda Display's professional R&D team to produce excellent products. As your trusted supplier in China, we provide you with professional LCD solutions to help you achieve smooth project development. We have provided professional solutions for multiple domestic and international clients, offering excellent quality and cost-effective products.
