20x4 Character LCD Display STN Positive Negative LCD Mode

Providing clear, structured layouts for industrial HMI, this 20x4 Character LCD Display STN Positive Negative LCD Mode features a 4-line, 20-character format with an AIP31066 driver and a robust COB assembly.

20x4 Character LCD Display STN Positive Negative LCD Mode Overview

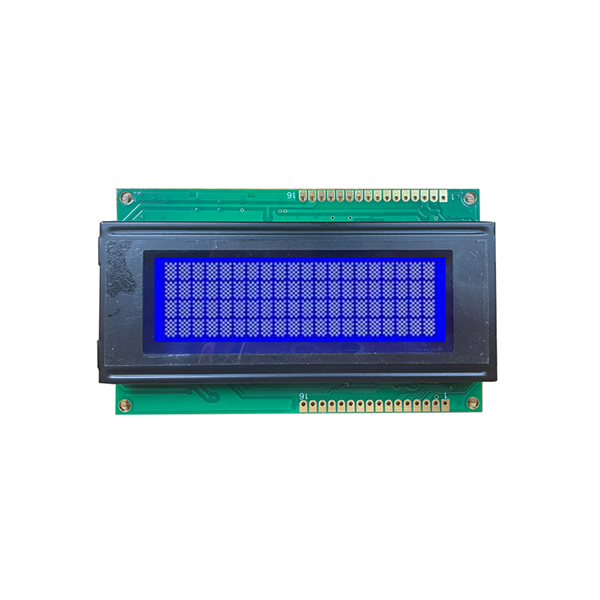

The 20x4 Character LCD Display STN Positive Negative LCD Mode is a highly versatile and reliable display solution built for demanding industrial environments. Whether you need menu navigation, real-time status updates, or diagnostics, this module delivers a clear and structured visual output.

The JDA2004-01 Series uses the AIP31066 drive IC and operates with a 1/16 duty, 1/5 bias driving scheme. The viewing angle is fixed at 6 o'clock. For buyers looking to integrate this 20x4 Character LCD Display STN Positive Negative LCD Mode, the standard PCB board and wide viewing angle simplify installation in machinery interfaces and factory automation panels.

Available Options for This 20x4 Character LCD Module

To suit different housing designs and brand aesthetics, we offer three standard optical configurations for this 20x4 Character LCD Display STN Positive Negative LCD Mode. You can select the exact LCD type and backlight color you need for mass production.

Applications and Industrial Use Cases

The 20x4 Character LCD Display STN Positive Negative LCD Mode provides a reliable and easy-to-read interface for operators. It is widely chosen by engineers for:

▸ Factory Automation Panels - displaying machine status, error codes, and operational parameters.

▸ Diagnostic Equipment - showing real-time data and measurement results in medical and testing devices.

▸ Machinery Interfaces - offering menu navigation and parameter settings for industrial machinery.

Customization and Supply by JINGDA

As a leading display manufacturer, we provide full support for your 20x4 Character LCD Display STN Positive Negative LCD Mode requirements. Whether you need to adjust the PCB layout, change the connector type, or modify the backlight, our engineering team can handle it.

To explore other formats, you can view our Character LCD Display category. If you need a higher resolution for complex graphics, consider our 128x64 LCD Display STN Positive Mode Graphic Screen. For simpler numeric interfaces, our Segment LCD Display section is also available.

With our 6000 m² clean-room facility and ISO quality management, every 20x4 Character LCD Display STN Positive Negative LCD Mode is tested for optical performance and electrical reliability before shipment. Send your drawing or target specs to our sales team to receive a comprehensive quotation within 24 hours.

Frequently Asked Questions

What are the differences between the three JDA2004-01 series models?

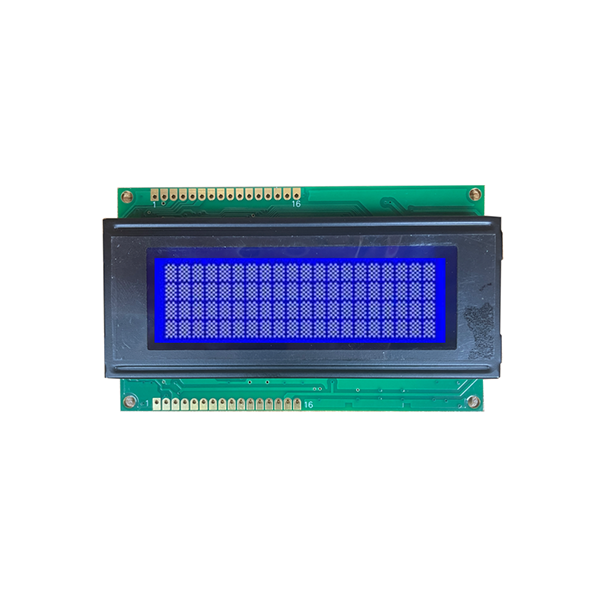

The three models offer different optical modes: 2004SBW-01 is STN Blue Negative with a white backlight, 2004SYG-01 is STN Yellow Green Positive with a yellow-green backlight, and 2004SGW-01 is STN Gray Positive with a white backlight.

Does this 20x4 Character LCD Display STN Positive Negative LCD Mode include a PCB board?

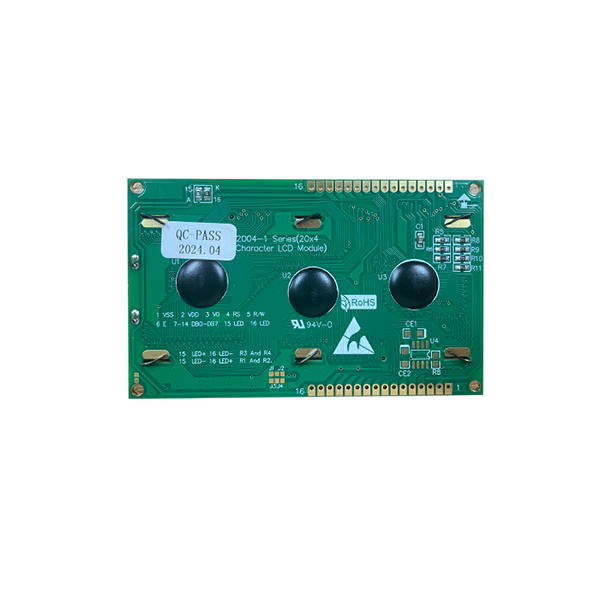

Yes, this character LCD module is built with COB technology and comes with a standard PCB board for easy mounting and integration into your existing hardware.

What is the minimum order quantity and lead time?

For standard configurations, we support both sample orders and bulk production. Send us your requirements and our team will provide a quotation and lead time within 24 hours.

Can the AIP31066 driver IC be customized?

The standard module uses the AIP31066 driver. If your project requires a different IC for compatibility reasons, we can discuss custom solutions for volume orders.
