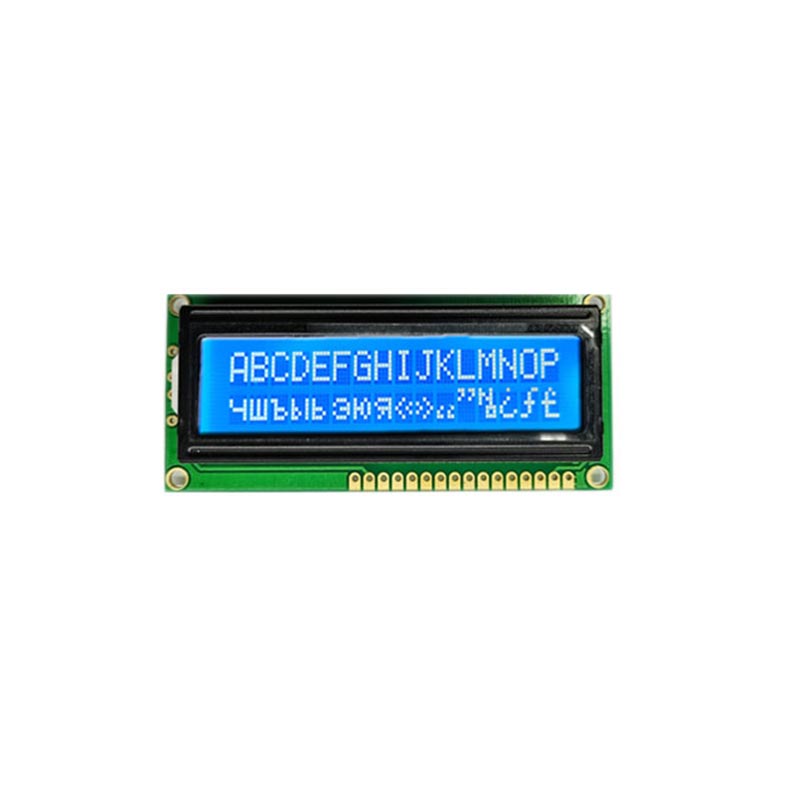

16x2 Character LCD Display STN Blue Display
Low power consumption 16x2 Character LCD Display STN Blue Display transmissive.
Product Model: JDA1602/blue
Technology: COB technology
Operating Temp: 0 to 50℃
View Angle: Wide viewing angle
Drive IC: AIP31066L/AIP3165LC
Send Inquiry
Product Description
This low-power 16x2 Character LCD Display STN Blue Display features a negative blue transmissive screen, COB assembly, and a white backlight. It delivers excellent visibility for electricity meters, energy meters, and water meters.
16x2 Character LCD Display STN Blue Display: Features and Specs
JINGDA-DISPLAY is a professional manufacturer of the 16x2 Character LCD Display STN Blue Display. This JDA1602-18020A module is widely used in instruments and meters, including electricity meters, electric energy meters, and water meters. Built with the reliable AIP31066L IC and STN negative blue technology, it provides high reliability and longevity suitable for industrial environments and long-term usage.
|
MODULE SIZE 80 × 36 × 11 mm |
DISPLAY VA 64.5 × 14.5 mm |
|
OPERATING VOLTAGE VDD = 5V |
DRIVE METHOD 1/16 DUTY, 1/5 BIAS |
Technical Parameters
|
Module Size 80(W)×36(H)×11(T)mm (without PIN) |
Operating Voltage VDD=5V |
|
Display VA 64.5(W)×14.5(H) mm |
Operating Temp. 0 to 50℃ |
|
LCD Type STN / Negative / Blue |
Storage Temp. -10 to 60℃ |
|
Backlight White |
Drive Method 1/16 DUTY, 1/5 BIAS |
|
Drive IC AIP31066L/AIP3165LC or Compatible |
Polarizer Type Transmissive |
Main Applications
This 16x2 Character LCD Display STN Blue Display provides clear, reliable readouts in various measurement environments:
▸ Electricity Meters - real-time power consumption and status.
▸ Energy Meters - reading values and system status indicators.
▸ Water Meters - flow volume tracking and status alerts.
|

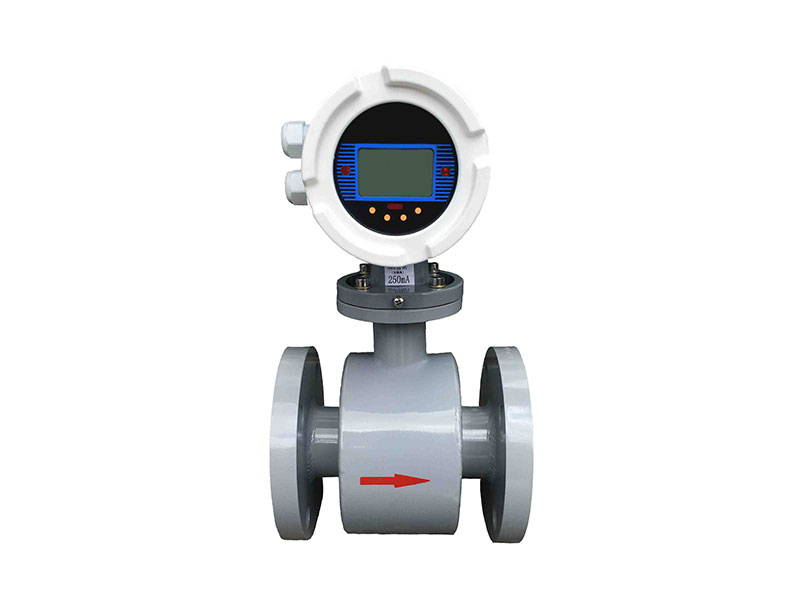

16x2 Character LCD Display STN Blue Display used in smart meters. |

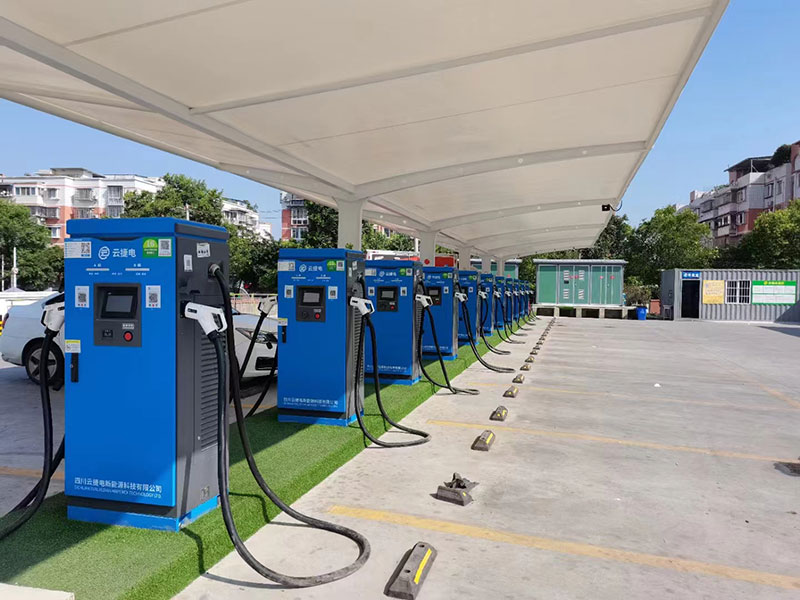

16x2 Character LCD Display STN Blue Display used in energy equipment. |
Why Choose JINGDA DISPLAY?
As a Shenzhen-based manufacturer with 10+ years of experience in the LCD industry, JINGDA specializes in the development and manufacturing of monochrome LCD modules. We have our own 10,000 m² factory in Fujian Province, including a 6000㎡ dust-free workshop with Class 100 and Class 1000 clean-rooms. We hold ISO9001, ISO14001, and IATF-16949 system certifications, ensuring stable quality and environmental compliance.
To explore other display options for your projects, you can review our Character LCD Display category. For custom segment displays, check out the Segment LCD Display. If your design requires graphical rendering, our Graphic LCD Display series is highly recommended. You can also visit our Inquiry Page for a 24-hour response.
Frequently Asked Questions
| What is the difference between STN Positive and STN Negative? | STN Positive displays have dark characters on a lighter background, whereas STN Negative displays (like this blue version) have light or white characters on a dark background, requiring a backlight for best visibility. |
| Can you provide customization for the 16x2 Character LCD Display? | Yes, we offer full customization including the segment layout, backlight color, FPC length, interface definition, and screen printing logo according to your specific requirements. |
| What are the standard lead times and packaging? | Standard models usually ship within 15-20 working days. Each module is packed in an anti-static bag and reinforced carton with corner protection for safe transit. |
