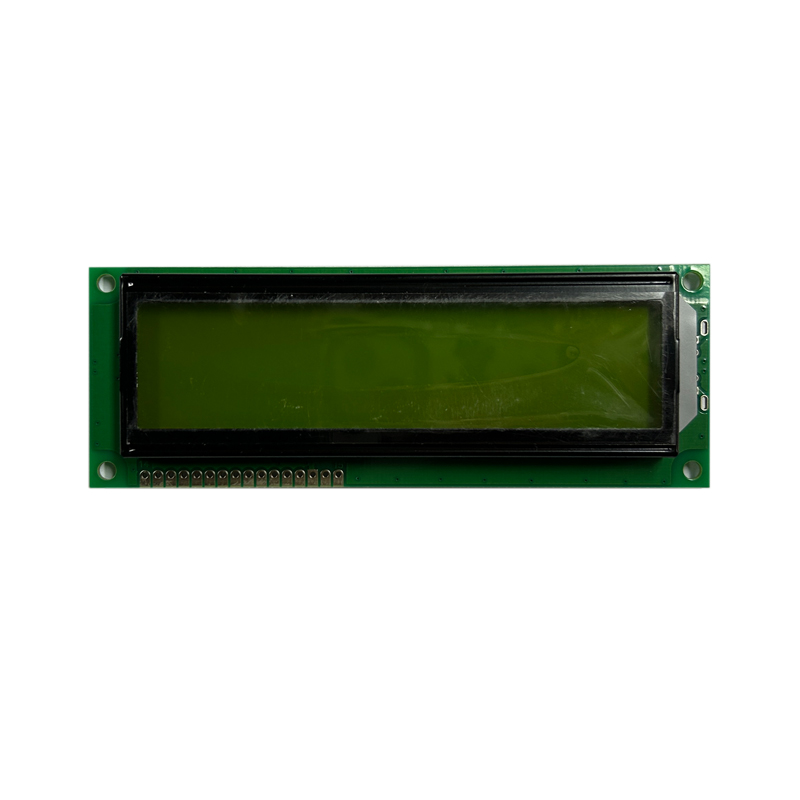

16x2 Character LCD Display Yellow Green Module

Jingda display’s 16x2 character LCD display is a highly versatile and reliable display solution, offering four lines with twenty characters each. The 16x2 character LCD display yellow green module remains a trusted workhorse. This module combines clarity, low power consumption, and straightforward parallel interface, making it suitable for countless industrial, medical, and consumer projects.
Module No: JDA1602-10
Technology: COB technology
Working Environment: Wide temperature operation
View Angle: Wide viewing angle

Send Inquiry

Product Description

Product Parameter of 16x2 character LCD display yellow green module

Outline dimension	122(W)x44(L)x13.5(H)mm	Viewing Area	99.00(W)x24.00(L)mm
Active Area	94.80(W)x19.90(L)mm	Character size	4.80(W)x7.95(L)mm
Character pitch	6.00(W)x8.55(L)mm	Dot pitch	1.15(W)x0.98(L)mm
Viewing direction	6 O’clock	Interface	4/8-bit Parallel
Drive IC	AIP31066L-001/002	Operating Temp.	-20 to 70℃

Product Introductions

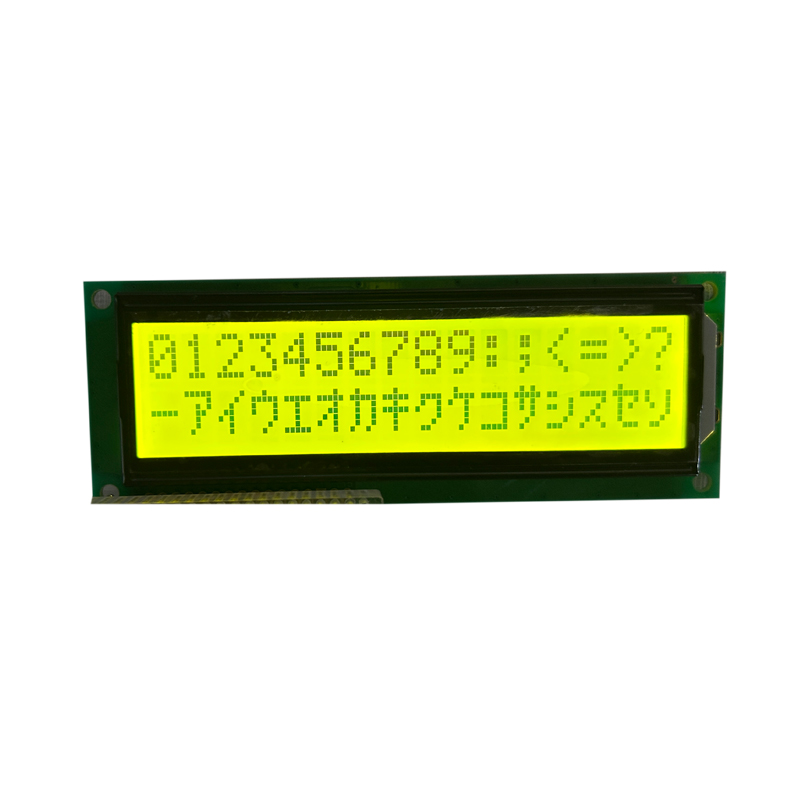

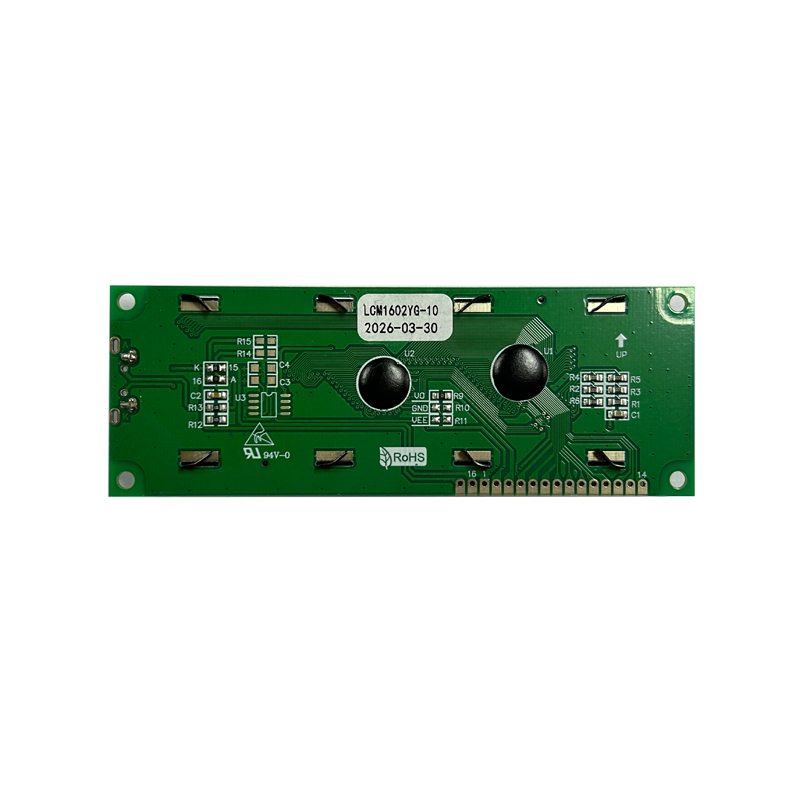

The display offers two lines of 16 characters each, with a 5x8 dot matrix per character. The yellow green background paired with dark black pixels provides excellent contrast under typical indoor lighting. Operating voltage ranges from 4.5V to 5.5V DC, with an LED backlight current around 100-120mA. The drive IC of 1602 display module is AIP31066L-001/002, and interface is 4/8-bit Parallel.

The 16x2 Character LCD Display Yellow Green Module is a versatile, reliable alphanumeric display solution designed to meet the demands of both industrial and hobbyist electronic projects. Featuring a 16-character by 2-line format with a bright yellow-green backlight and STN Y-G Positive Transimmive Mode, this module delivers clear, easy-to-read text in a wide range of lighting conditions--from bright industrial environments to low-light workspaces—making it ideal for applications where visibility is critical.

Common Applications

Industrial control panels - Displaying machine status, counters, or alarm messages.

Medical devices - Showing patient data or equipment settings.

Home automation - Providing feedback from thermostats, timers, or security systems.

Test equipment - Multi-meters, frequency counters, and power supplies.

Retail POS systems - Price checkers or cashier displays.

Jingda Display Company

At the forefront of visual technology innovation, Shenzhen Jingda Display Technology Co., Ltd stands as a premier manufacturer dedicated to engineering high-performance LCD, TFT, and OLED solutions that bring ideas to life with stunning clarity and vibrancy. Every panel we craft emerges from a relentless pursuit of precision—whether you need the energy-efficient simplicity of LCD screen for industrial interfaces, the responsive color accuracy of TFT displays for automotive dashboards, or the deep contrasts and flexible designs of OLED display module for next-generation wearables. Our advanced production lines and rigorous quality controls ensure that each display delivers exceptional brightness, wide viewing angles, and long-lasting reliability, even under demanding conditions. From prototyping to mass delivery, Jingda Display partners with you to reduce lead times and optimize costs, empowering your products to outshine competitors.
