128x64 LCD Display STN Positive Mode Graphic Screen

This 128x64 LCD Display STN Positive Mode Graphic Screen is designed for industrial-grade reliability and mass production.
Module No: JDA12864-23001
Technology: COB technology
View Angle: Wide viewing angle
Operating Temp: -20 to 70℃
Drive IC: AIP31107&AIP31108

Send Inquiry

Rating: 5.0

(Rating Count: 1)

Product Description

Manufactured for industrial-grade applications, this 128x64 LCD Display STN Positive Mode Graphic Screen delivers crisp dot-matrix visuals. Featuring a 3.0V power supply and AIP31107 driver ICs, it ensures stable performance in control panels, medical devices and smart meters.

128x64 LCD Display STN Positive Mode Graphic Screen: Features & Specs

Sourcing a reliable 128x64 LCD Display STN Positive Mode Graphic Screen requires a supplier who understands both optical performance and mass production consistency. The JDA12864-23001 module is built around these exact needs. By pairing mature STN positive mode glass with a robust COB assembly, it provides a highly cost-effective visual solution.

This 128x64 LCD Display STN Positive Mode Graphic Screen utilizes the AIP31107 and AIP31108 driver ICs, operating under a 1/64 duty and 1/9 bias driving scheme. The 6 o'clock viewing direction and 128x64 dot matrix make it highly versatile. We also support customizing the driving IC to perfectly match your existing PCB and firmware.

	DISPLAY CONTENT & VOLTAGE 128×64 Dots \| 3.0 V

	DRIVE IC & SCHEME AIP31107&AIP31108 \| 1/64 Duty, 1/9 Bias

	ACTIVE AREA & TEMP. 56.28 × 38.36 mm \| -20 to 70 °C

JDA12864-23001 Technical Parameters
Module No.	JDA12864-23001
Module Size	78(L)×70(W)×12.5(H)mm
Viewing Area	62.00(L)mm×44.00(W)mm
Active Area	56.28(L)mm×38.36(W)mm
Display Content	128×64 Dots
Power Supply	3.0 V
Drive IC	AIP31107&AIP31108
Driving Scheme	1/64 duty, 1/9 bias
Viewing Direction	6 o'clock
Operating Temp.	-20 to 70 °C
Storage Temp.	-30 to 80 °C

Applications of the STN Positive Graphic Screen

Due to its high reliability and cost-effectiveness, this 128x64 LCD Display STN Positive Mode Graphic Screen is widely chosen by engineers for a variety of HMI and data display requirements:

▸ Industrial Control Systems - frequency inverters, PLC interfaces, and machine control panels.

▸ Medical Equipment - patient monitors, diagnostic devices, and portable health meters.

▸ Traffic & Transport - parking lot guidance systems, ticketing machines, and data loggers.

▸ Consumer Electronics - smart home appliances, audio equipment, and measurement tools.

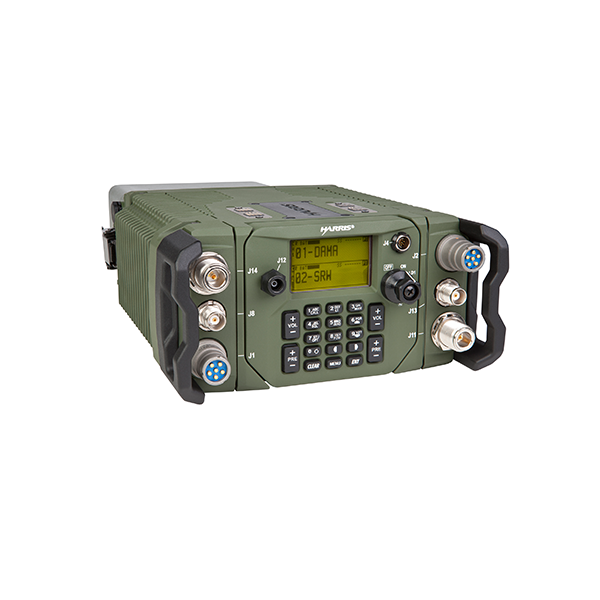

128x64 LCD Display STN Positive Mode Graphic Screen Application

128x64 LCD Display STN Positive Mode Graphic Screen in industrial application.

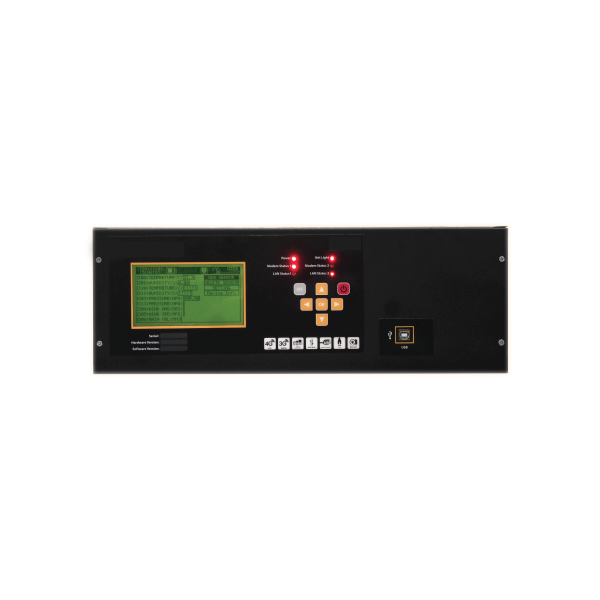

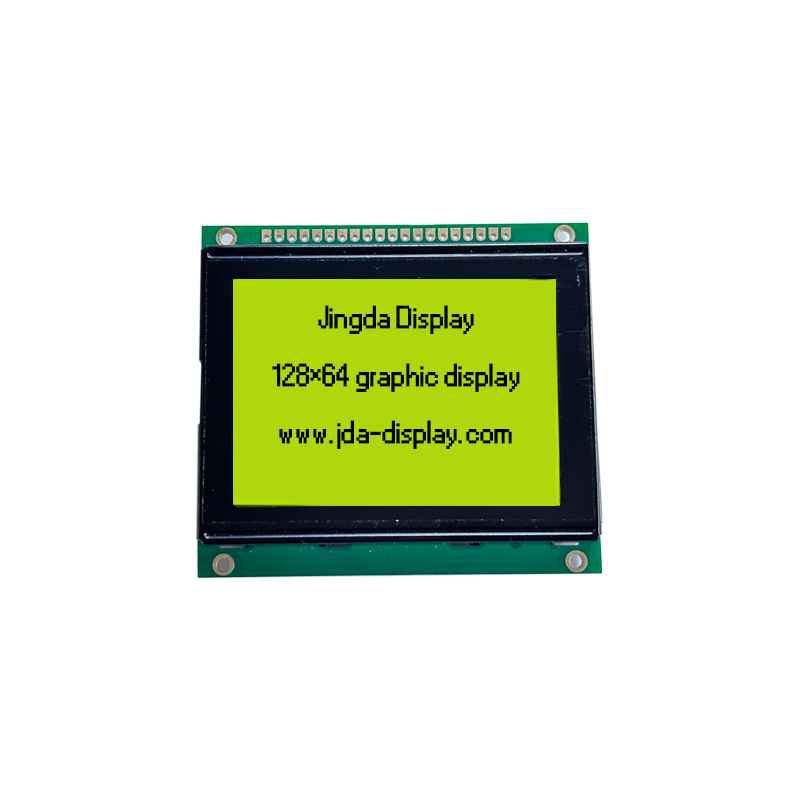

12864 graphic LCD module display

STN positive mode display showing dot-matrix data.

Customization & Mass Production Support

This catalogue module is an excellent starting point, but our capabilities extend far beyond standard parts. If you need a fully customized 128x64 LCD Display STN Positive Mode Graphic Screen, our engineering team is ready to assist. We offer custom glass tooling, pinout redesigns, and alternative backlight colors.

Driver IC Customization - Modify the AIP31107/31108 setup to match your existing firmware.

Polarizer & Backlight - Reflective, transflective, or transmissive options with white, blue, or green LED backlights.

Connector Types - Pin header, Zebra connector, or FPC cable to fit your assembly process.

Fast Quotation - Send your drawing and annual demand to receive a comprehensive quote within 24 hours.

To compare with other monochrome display options, visit our Graphic LCD Display category page. You can also explore our 128×64 LCD Display Module FSTN Positive Display Module for alternative optical modes. If your project requires simpler numeric readouts, the Segment LCD Display section may offer a more cost-effective solution.

Manufacturing Quality & EEAT Commitment

Shenzhen Jingda Display Technology Co., Ltd. has been manufacturing monochrome LCD modules since 2015. Our 6000 m² dust-free facility in Fujian features Class 100 and Class 1000 clean-rooms, ensuring that every 128x64 LCD Display STN Positive Mode Graphic Screen is assembled without contamination. We strictly follow ISO quality management protocols and can provide RoHS compliance and inspection reports for procurement audits. Every batch undergoes rigorous electrical and optical testing before shipment.

Frequently Asked Questions

Can the driving IC of this 128x64 LCD Display STN Positive Mode Graphic Screen be customized?

Yes. The standard configuration uses AIP31107 and AIP31108. However, we can customize the driver IC according to your specific firmware or hardware requirements for volume production.

What is the minimum order quantity for this 12864 graphic LCD module?

The MOQ depends on whether it is an in-stock standard configuration or requires customized tooling. For standard samples and bulk orders, please contact our engineering team for a quotation within 24 hours.

Does the STN positive mode require a backlight?

STN positive mode displays are typically reflective or transflective. Depending on your application environment, an LED backlight array can be added to the module for low-light readability.

What is the lead time for mass production orders?

Standard samples are usually shipped within 3 to 7 working days. For mass production, the lead time is confirmed together with the quotation based on your annual volume and tooling requirements.
