1602 Character LCD Display FSTN Display Yellow Green LCD Mode
  • 1602 Character LCD Display FSTN Display Yellow Green LCD Mode1602 Character LCD Display FSTN Display Yellow Green LCD Mode

1602 Character LCD Display FSTN Display Yellow Green LCD Mode

    Jingda Display supplies high-performance industrial displays. This 1602 Character LCD Display FSTN Display Yellow Green LCD Mode features a negative transmissive screen and white backlight. Ideal for meters.
    Module No: JDA1602/yellow green
    Technology: COB technology
    Operating Temp: 0 to 50℃
    View Angle: Wide viewing angle
    Drive IC: AIP31066L/AIP3165LC or Compatible

    Send Inquiry

    Product Description

    1602 Character LCD Display FSTN Display Yellow Green LCD Mode

    The 1602 Character LCD Display FSTN Display Yellow Green LCD Mode is a high-performance, industrial-grade 16x2 character module. It features a negative yellow green transmissive LCD screen, COB technology, and a white backlight. Engineered with an AIP31066L/AIP3165LC compatible driver, it delivers stable performance for industrial control panels, medical devices, test equipment, and various meters.

    As a trusted character LCD display manufacturer, JINGDA supplies this module with a 6 o'clock viewing direction, VDD=5V operation, and a wide temperature range. For projects requiring different interfaces, you can also explore our segment LCD display or graphic LCD display solutions.

    1602 Character LCD Display FSTN Display Yellow Green LCD Mode

    Technical Specifications

    Parameter Specification Parameter Specification
    Outline Dimension 80(W)x36(L)x13.5(H)mm Viewing Area 64.50(W)x14.50(L)mm
    Active Area 55.70(W)x11.00(L)mm Character Size 2.90(W)x5.15(L)mm
    Character Pitch 3.52(W)x5.85(L)mm Dot Pitch 0.59(W)x0.65(L)mm
    Viewing Direction 6 O'clock Interface 4/8-bit Parallel
    Drive IC AIP31066L-001/002 Operating Temp. -20 to 70℃

    Key Features

    • ✓ Superior Visual Experience The monochrome LCD display provides soft, eye-friendly light, with excellent visibility in bright indoor light and dark environments, with no reflection or blurring.
    • ✓ Custom Character Support Allows users to edit and store up to 8 custom dot-matrix characters to meet personalized display needs.
    • ✓ Low Power Consumption Optimized circuit design reduces overall power consumption, suitable for battery-powered portable electronic devices.
    • ✓ Plug-and-Play Convenience Standard pin definition, simple wiring and debugging, no complex driver development required.
    • ✓ Anti-Interference Performance Industrial-grade anti-electromagnetic interference design ensures stable operation in complex electrical environments.

    Application Fields

    This 1602 Character LCD Display FSTN Display Yellow Green LCD Mode is highly versatile and perfectly suited for a wide array of applications:

    • Industrial control panels: Ideal for displaying machine status, counters, or alarm messages.
    • Medical devices: Reliable for showing patient data or equipment settings.
    • Test equipment: Perfect for multi-meters, frequency counters, and power supplies.

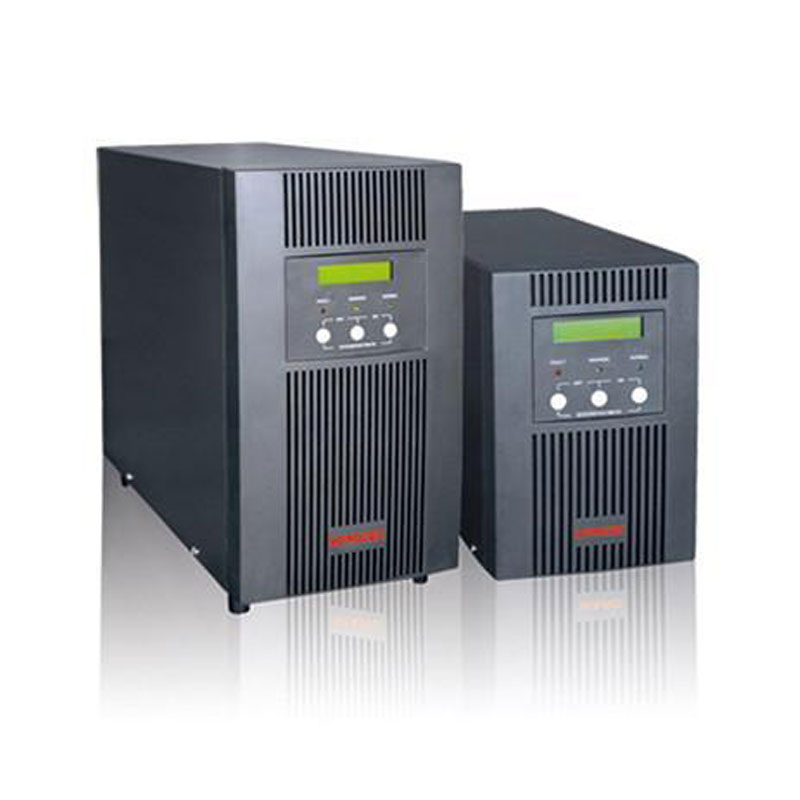

    UPS Device Application UPS System Application

    Why Trust JINGDA DISPLAY?

    With more than 10 years of focused manufacturing experience, we supply character LCD displays to customers across the USA, Brazil, India, Korea, France, Israel, and more.

    • One-stop production: In-house glass processing, COG/COB bonding, and module assembly.
    • Engineer-led support: Design drawing and custom layout within 3-5 working days.
    • Flexible MOQ: From small prototyping batches to high-volume orders.
    • On-time delivery: 95%+ on-time rate with dedicated production scheduling.
    • Quality system: ISO9001-certified processes with 100% electrical and visual inspection.
    Jingda Display Factory Workshop

    JINGDA Display manufacturing facility with in-house COB bonding lines.

    Jingda Display Certifications

    ISO9001, ISO14001, and IATF-16949 Certified Manufacturer.

    FAQ

    What is the working voltage and power consumption of the module? The standard working voltage is 5V DC, with a wide voltage range of 4.7V - 5.5V. Optimized circuit design keeps power consumption low.
    Do you support custom Pin-out and interface? Yes. We support SPI, IIC, and 4-bit/8-bit parallel interfaces, and we can design the pinout to match your PCB layout.
    What is the warranty period? Our standard warranty is 12 months from shipment, covering manufacturing defects. Long-term reliability data and aging test results are available on request.
    How do I request a sample and quotation? Send us your application, target quantity, interface, backlight color, and required dimensions. We will provide you with a quotation and lead time for the sample ASAP. You can also contact our sales team or view our full product catalog for more options.
