FSTN Negative LCD Screen 16x3 Character Display

Parameters of FSTN Negative LCD Screen 16x3 Character Display

Product Introduction of 16x3 Character LCD Display

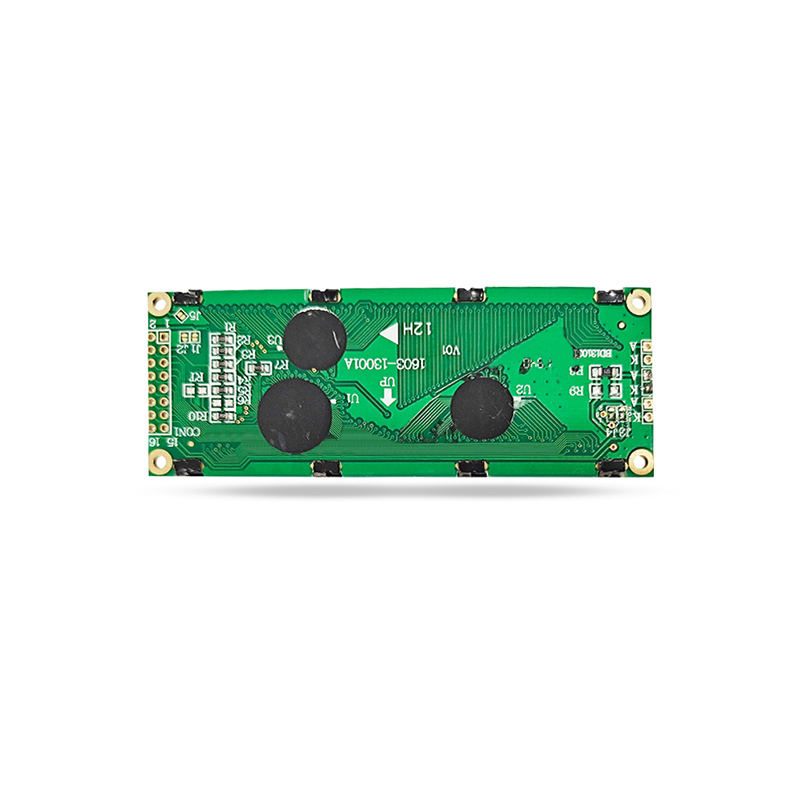

The monochrome LCD product adopts a standardized 16x3 character display specification, with a neat layout of the display area, which can clearly display textual information such as equipment operating parameters, fault codes, working status, and operation prompts. The module integrates mature driver circuits with strong compatibility. The driver IC of this LCD module is ST7066U, which can quickly adapt to mainstream control chips without complex debugging. The character LCD display adopts FSTN technology while retaining the low-power characteristics of STN, while achieving better visual performance.

Application Field and Advantages

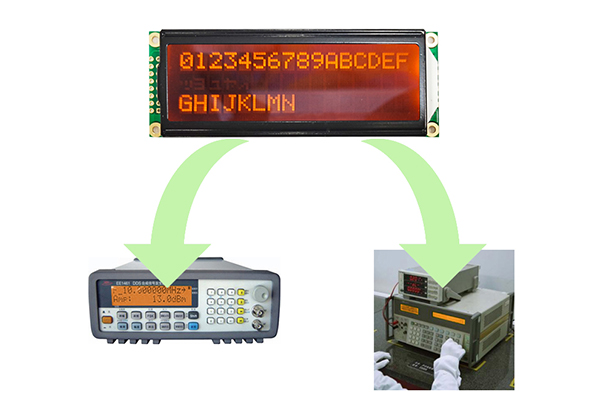

As a highly versatile industrial-grade Character LCD Display, Jingda Display's 16x3 FSTN negative display liquid crystal screen is widely applicable to various character display scenarios of small and medium-sized intelligent devices, covering multiple fields such as civilian, commercial, and industrial control. The core application scenarios include: intelligent instruments and meters, environmental monitoring equipment, communication transmission equipment, portable medical detection instruments, industrial temperature control equipment, security access terminals, new energy storage equipment, small industrial control all-in-one machines, etc. It can precisely meet basic visual needs such as equipment parameter display, status indication, fault alarm, and data reading.

1. Upgraded Display Quality: The Character LCD Module is equipped with professional FSTN phase compensation technology, it eliminates color difference and edge blurring of traditional STN screens. With pure negative display background and sharp characters, it maintains excellent visibility even in strong light.

2. Ultra-low Power Consumption: Supported by 3.5V low-voltage drive, it retains the energy-saving advantages of STN LCD mode, greatly reducing equipment power consumption and extending the battery life of portable devices.

3. Industrial-grade Durability: Adopts wide-temperature liquid crystal materials and polarizers, resisting high and low temperature, humidity and electromagnetic interference. No black screen, flicker or ghost image during long-term operation with ultra-low failure rate.

Company Introduction

Shenzhen Jingda Display Technology Co., Ltd is a domestic manufacturer specializing in the research and development, production and sales of LCD displays and LCM display modules. With a long-term commitment to the display industry, the company has a mature production supply chain, a complete quality control system and a professional technical research team. The company mainly produces various STN, FSTN, TN mono LCD screens, including character LCD display, segment display screens and graphic LCD display modules. It focuses on providing industrial-grade high-stability and high-adaptability display products, and can offer standardized products and one-stop customized display solutions to global customers.

Why Choose Jingda Display?

1. More than 10+ Years of Display Expertise - Over a decade of pioneering display technology experience

2. Global Reach: Products deployed across 100+ countries, serving consumer electronics,automotive, healthcare, industrial automation, and more modules

3. End-to-End Manufacturing: From raw glass substrate to fully assembled, tested, and certified module

4. Customization Capabilities: Supports custom backlight, interface, size, and shape configurations

5. Trusted Global Partner Recognized as the world's most trusted producer of Monochrome LCD Display solutions

FAQ

Is customization available for this product? What parameters can be customized?

We provide full-range customization is supported.You can customize backlight color, backlight brightness, screen background color, character color, interface pin definition, outline size and operating temperature range according to equipment needs.

Does this Character LCD Display require a backlight?

Yes. FSTN Negative and STN Negative display modules require an LED backlight to be visible, as they use a fully transmissive polarizer.

What is the delivery cycle and after-sales guarantee of Jingda Display?

Standard in-stock products can be delivered within 3-7 working days, and customized products take 28-30 days according to solution complexity.
