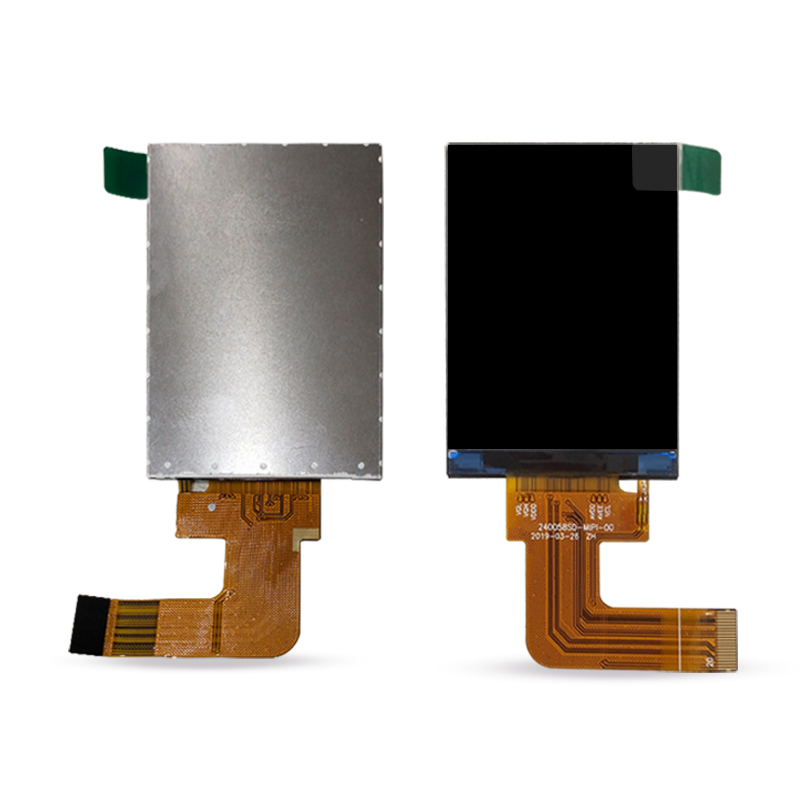

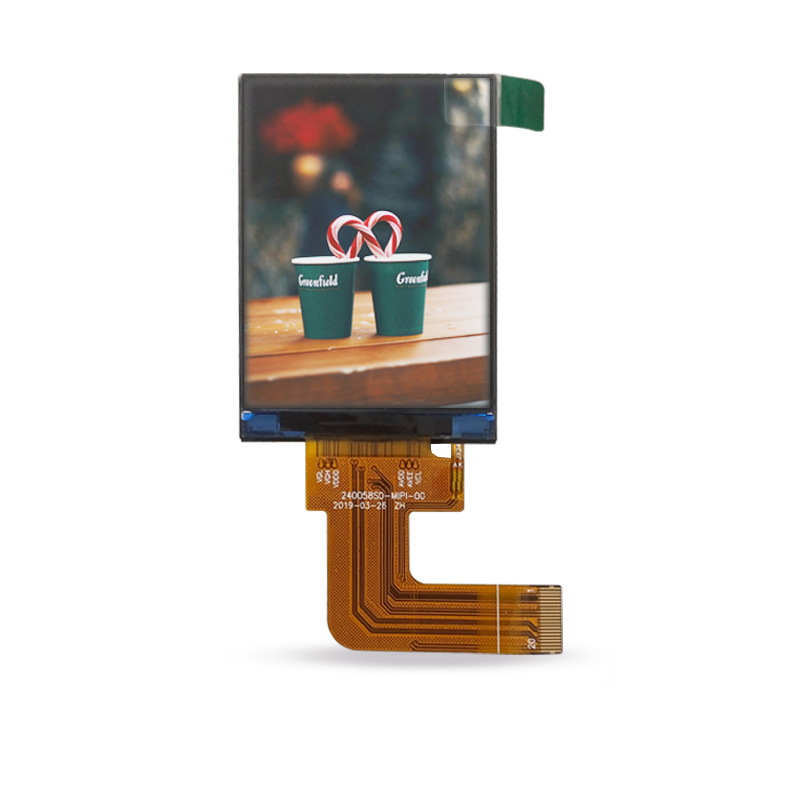

2.4 inch TFT Display Module MIPI Interface TFT Display
  • 2.4 inch TFT Display Module MIPI Interface TFT Display2.4 inch TFT Display Module MIPI Interface TFT Display
  • 2.4 inch TFT Display Module MIPI Interface TFT Display2.4 inch TFT Display Module MIPI Interface TFT Display

2.4 inch TFT Display Module MIPI Interface TFT Display

High Contrast Ratio 2.4 inch TFT display nodule MIPI interface TFT display wide view angle.
Module No: JDA240058S0 -CD
Number of Pixels: 240*3RGB(H)*320(V)
View Angle: Wide viewing angle
Operating Temp: -20 to 70℃

Send Inquiry

Product Description

Technical Parameters

LCD Type
Normally black
Operating Temp.
-20 to 70℃
Drive element
TFT active matrix
Storage Temp.
-30 to 80℃
Number of Pixels
240*3RGB(H)*320(V)
Viewing Direction
All o’clock
Pixel Pitch
0.153(H)*0.153(V)
Interface
MIPI
Active Area
36.72(H)*48.96(V)
Module Size(W*H*T)
40.44*57*2.15

Product Introductions

In the LCD display industry, the 2.4 inch TFT (Thin Film Transistor) LCD display has become a popular choice in the market due to its excellent performance and wide range of applications. The 2.4 inch TFT display module MIPI interface TFT display is mainly used in Industrial HMI, PLC Panels, Measurement Devices, Handheld Gaming and Portable Gadgets. JDA provides long-term, high-quality display solutions to clients from all over a world.


Applications
