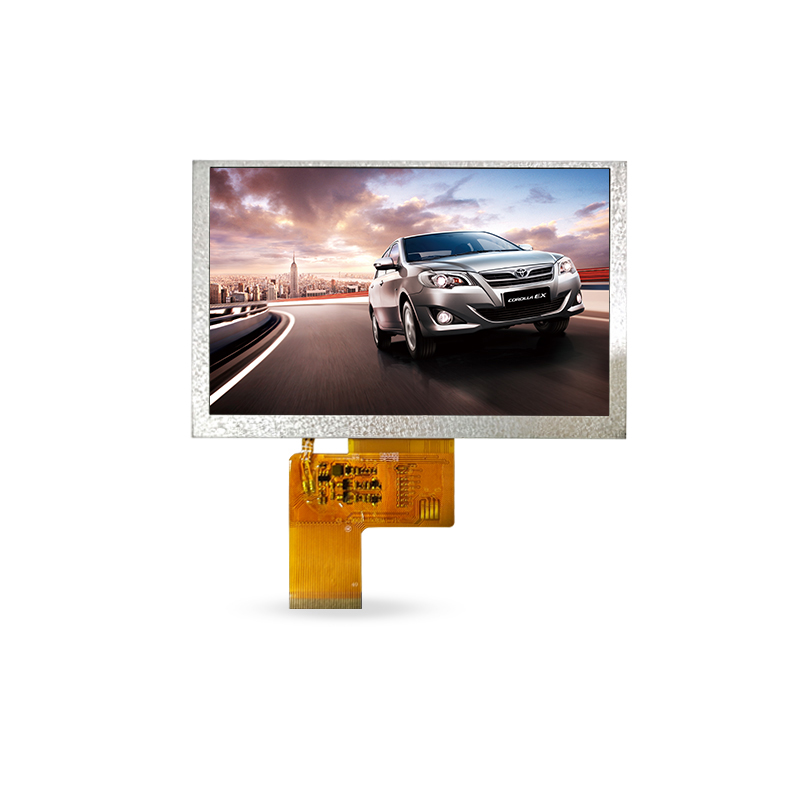

JDA’s 5 inch TFT display module with high resolution and high definition. Customized services including interface design, backlight adjustment for device.
Module No: JDA0500-18023A1
Resolution: 800*RGB*480
Operating Temp: -20 to 70℃
View Angle: Wide viewing angle
Drive IC: ILI5960 or ILI6122
Interface: 24-bit TTL
Color Ratio |
450(Min) |
Operating Temp. |
-20 to 70℃ |
Drive Element |
TFT active matrix |
Storage Temp |
-30 to 80℃ |
Number of Pixels |
800(W)*3RGB(H)*480(V) |
Viewing Direction |
6 o’clock |
Pixel Pitch |
0.135(H)*0.135(V) |
Drive IC |
ILI5960 or ILI6122 |
Active Area |
108.00(H)*64.8(V) |
Interface |
24-bit TTL |

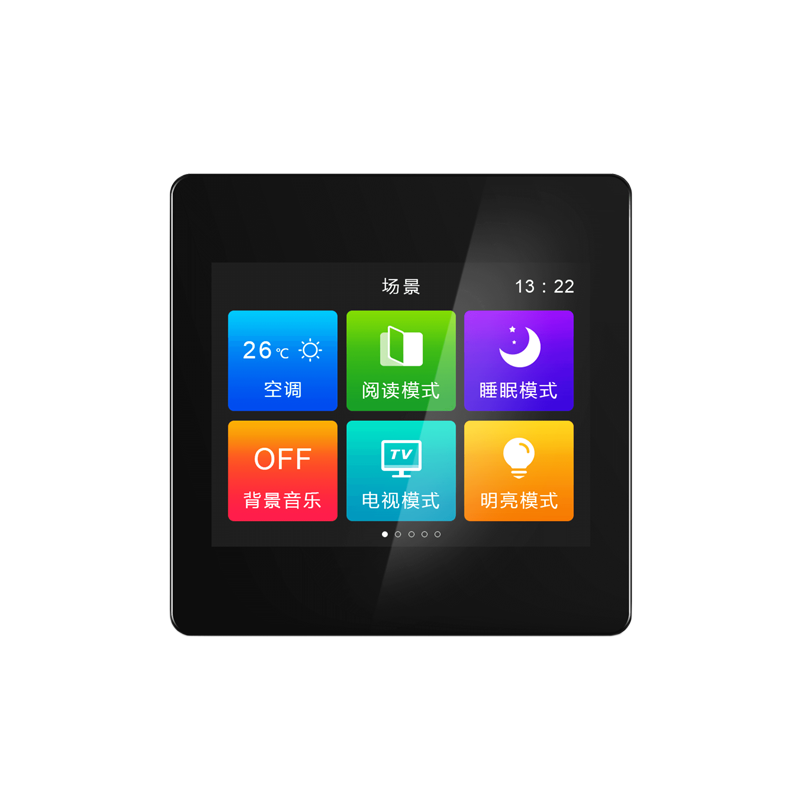

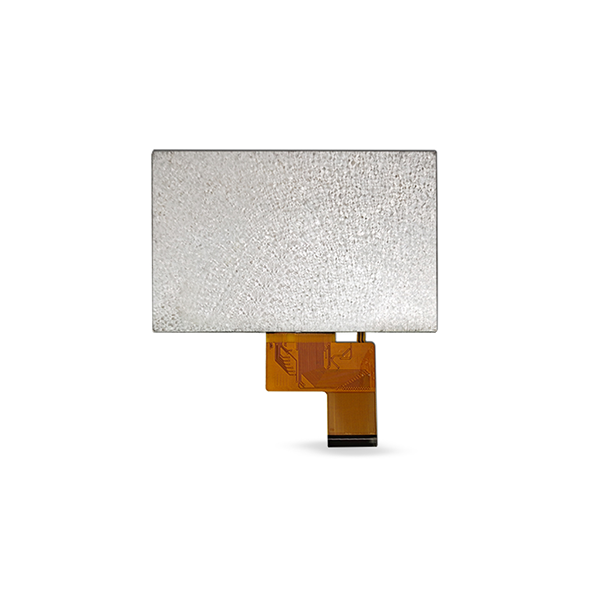

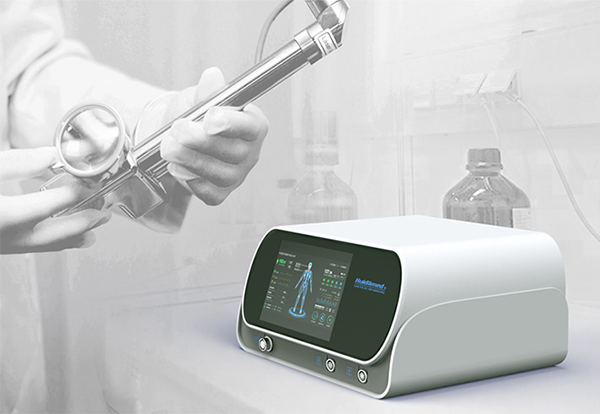

This 5 inch TFT display module with high resolution, clear display. And it is a transmissive type color active matrix liquid crystal display (LCD) which uses-amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT LCD panel, driver ICs, FPC and Backlight. The drive IC is ILI5960 or ILI6122 and interface is 24-bit TTL. The 5 inch TFT display is widely used in home automation, medical device, Industrial HMI and so on. Whether from a technical performance or market application perspective, it demonstrates significant advantages, making it a trustworthy and preferred choice for users and developers alike.
