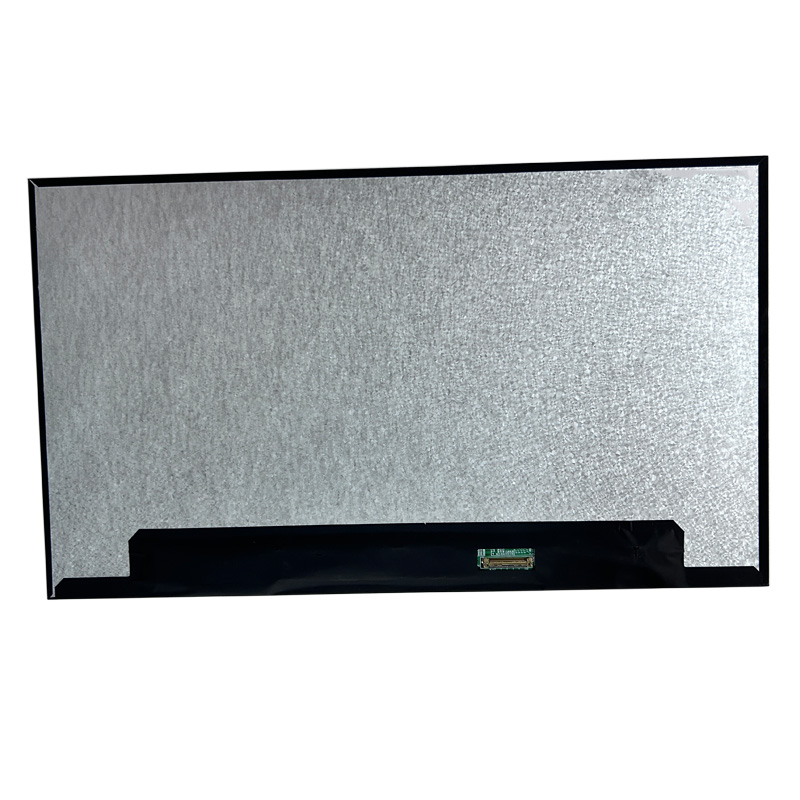

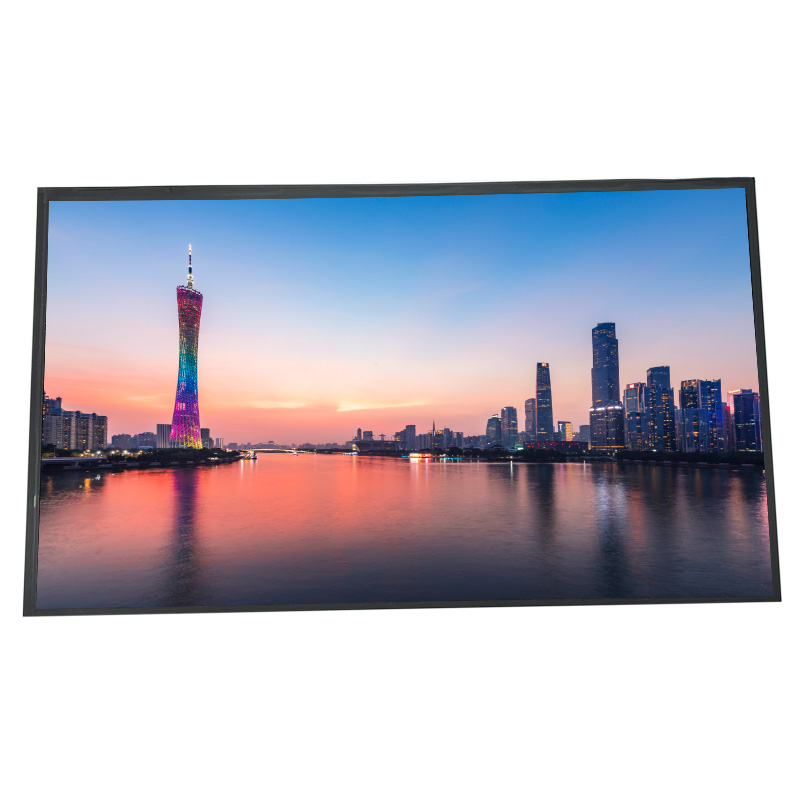

As a professional manufacturer of LCD, TFT, OLED display for 10+ years in China, JDA develop various sizes and of LCD displays. This TFT display is 13.3 inch, ideal for Video Phone, Smart Key and Wall-Pad etc.
LED backlight for enhanced brightness and longer life. The brightness of this module can reach 400nits, it suitable for indoor and Semi-outdoor environment. This 13.3 inch lcd TFT display with high resolution 1920x1080 is very thin and light weight, 2 lane eDP interface with 2.7 Gbps link rates.
Product No: JDA133FHM-N10
Working Environment: Wide temperature operation
View Angle: Wide viewing angle
Active Area |
293.76(H)*165.24(V)mm |
Pixel Pitch |
0.153(H)*0.153(V)mm |
Number of Pixels |
1920*1080 |
Pixel Arrangement |
RGN Vertical Stripe |
Dimension |
305.2(H)*178.10(V)*2.6(D)mm |
Display Mode |
Normally Black |
Operating Temp. |
0 to 50℃ |
Storage Temp. |
-20 to 60℃ |
13.3 inch LCD TFT display with high resolution 1920x1080 is a color active matrix TFT LCD module using amorphous silicon TFT as an active switching devices. This module(JDA133FHM-N10) has a 13.3 inch diagonally measured active area with Full-HD resolutions (1920 horizontal by 1080 vertical pixel array).Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7 M colors.
Features:
Interface Options: eDP / LVDS / HDMI (customizable)
Viewing Angle: Wide viewing angles with IPS technology
Brightness: Up to 400~500 nits (optional high-brightness versions available)
Touch Option: Touch Panel (CTP&RTP) available/customizble
With our expertise in LCD display technology, JDA provides high-quality and customizable display solutions tailored to your product needs. Whether for indoor control systems or outdoor commercial use, this 13.3 inch screen Full HD TFT display delivers excellent performance and visual appeal. Our factory has various LCD display manufacture technologies, with extremely high production flexibility and efficiency. JDA factory has rich experiences of production management and technology, to ensure our factory responses fast to market change and provides the clients with high performance and reliable LCD display scheme. We aim to be at the forefront of the LCD display technology industry, offering innovative and reliable products that meet the ever-evolving needs of the market.
