Graphic Dot Matrix screen STN LCD Display Module

Product Parameters of graphic dot matrix screen STN LCD display module

Product Introductions of graphic dot matrix screen STN LCD display module

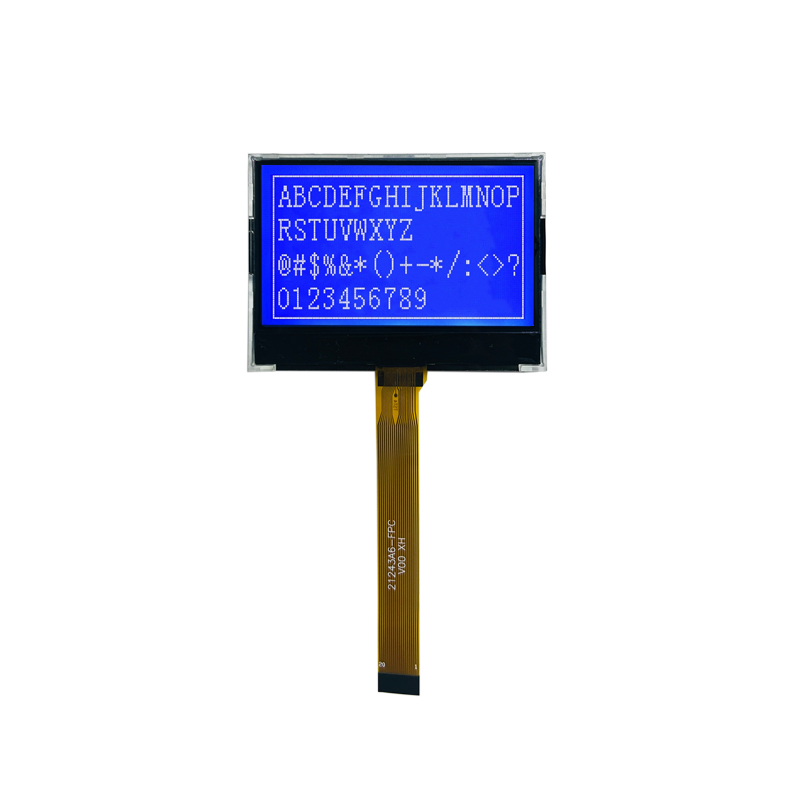

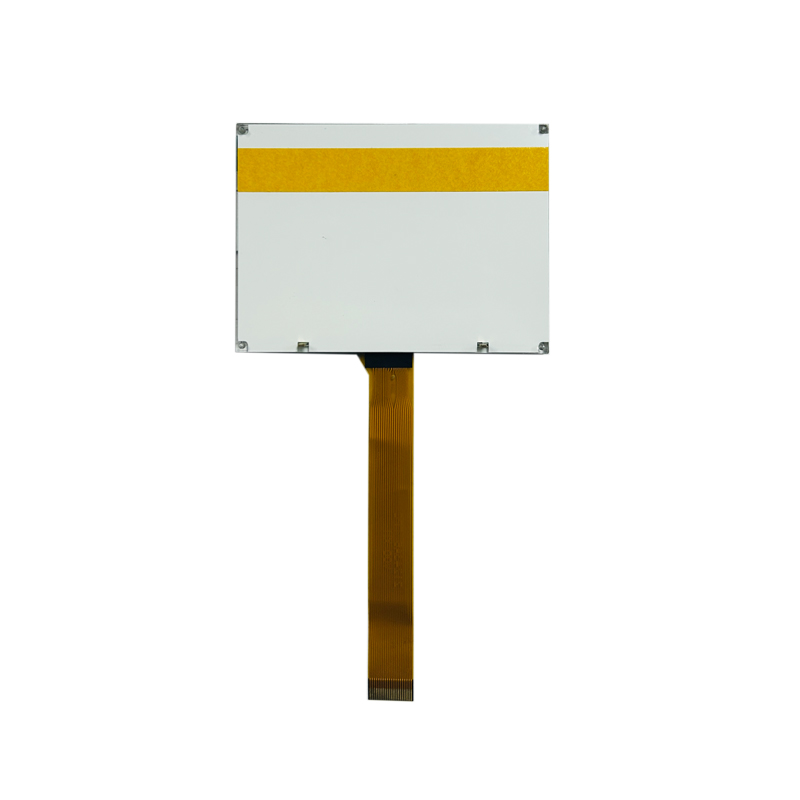

JINGDA-DISPLAY is China supplier who mainly manufactures graphic dot matrix screen STN LCD display module with many years of experience. Jingda display’s 240x128 graphic LCD display can work stably for a long time and it features stable optical performance, wide temperature adaptability and excellent compatibility. It mainly used in portable diagnostic tools, medical monitors, PLC displays module, industrial terminals. The FPC length is 80mm and the drive IC of the graphic lcd display module is UC1638C. If you are looking for graphic LCD screen, please visit our website and consult JDA’s team now.

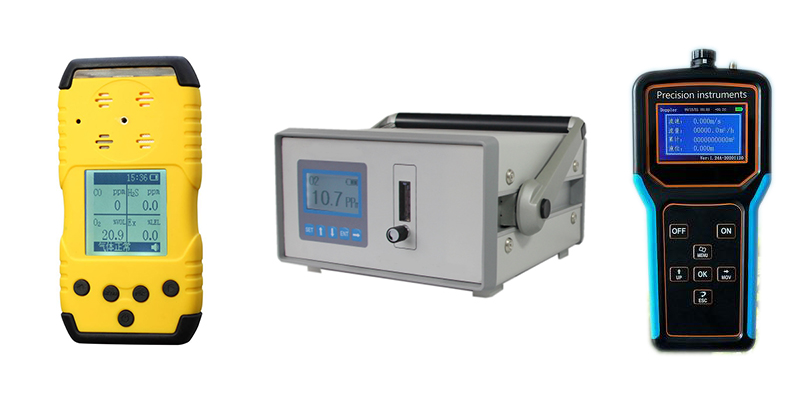

Applications

This industrial-grade LCD display module is widely used in scenarios requiring stable long-term display:

1. Industrial control equipment: PLC industrial control panel, automation equipment display terminal

2. Instrumentation: Pressure gauge, temperature recorder, flow meter, analytical instrument display screen

3. Smart home and commercial equipment: Intelligent control panel, access control terminal, monitoring

Real Reliability Test Data

Jingda display’s graphic LCD display products undergo full-item industrial reliability testing before delivery to ensure long-term stable operation in complex environments.

High and Low Temperature Cycle Test: Continuously work for 24 hours at -20°C and +70°C

Static Electricity Resistance Test: Pass 8KV contact static test and 15KV air static test.

Aging Test: 48 hours continuous power-on aging, brightness attenuation <5%

Humidity Resistance Test: Work continuously under 85% RH non-condensing environment.

Introductions of Jingda Display Company

Shenzhen Jingda Display Technology Co., Ltd (JDA in brief) is a high-tech enterprise that develops, manufactures and sells monochrome LCD display modules and HMI solutions, owning more than 10 years of professional LCD display production experience. The company has long been committed to providing high-quality industrial display solutions for global customers, focusing on industrial-grade stable display products, and has accumulated rich technical and production experience in the field of graphic LCD display and graphic dot matrix screen.

Factory Strength

1. Own independent dust-free production workshop, automated bonding, assembly and testing equipment

2. Complete production chain from raw material screening, screen processing, COB packaging to finished product testing

3. Stable raw material supply chain, long-term cooperation with high-quality upstream chip and glass manufacturers

4. Support large-scale batch orders and customized production, with stable delivery cycle.

FAQ

What is the service life of this industrial-grade LCD module?

After professional aging testing, the continuous working service life of the product is more than 50,000 hours

Can you provide technical support and after-sales service?

Yes. We provide free technical docking guidance, driver code provision and installation debugging suggestions.

What are the optional working voltages for the module?

The module supports 3.3V and 5V logic voltage power supply, which can adapt to different circuit power supply designs.

Does the product support customized backlight and display color?

Yes. The standard version is yellow-green background with black characters. We support customized blue background, white backlight, green backlight and other schemes.
