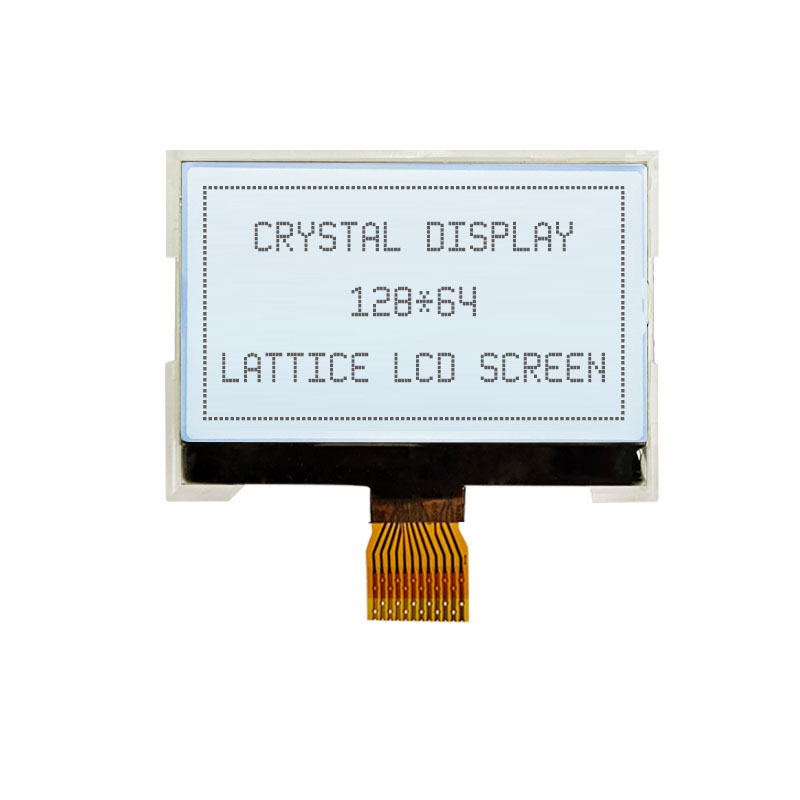

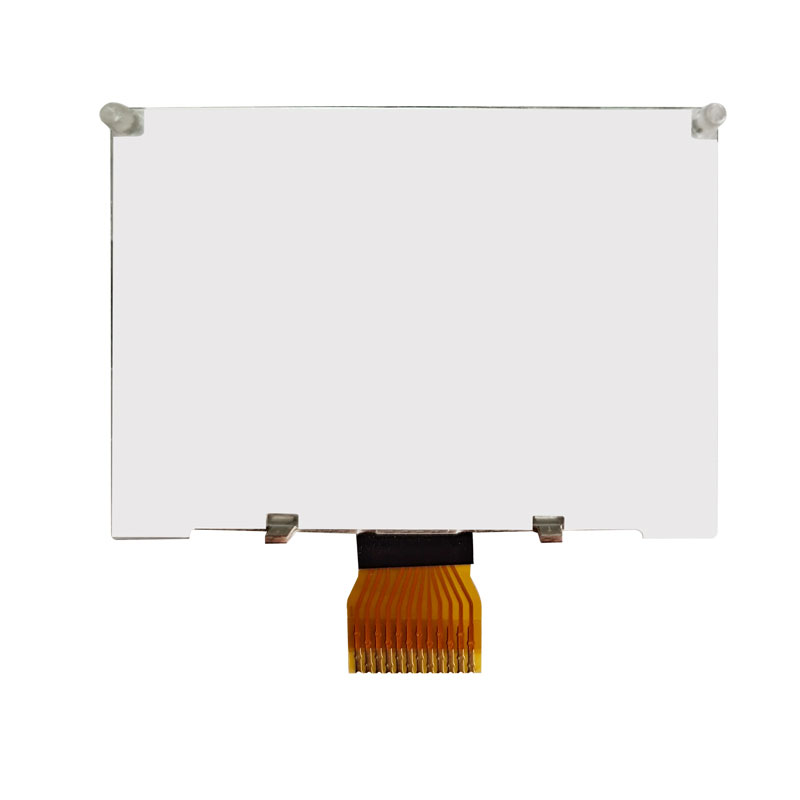

128×64 LCD Display Module FSTN Positive Display Module
Jingda display support OEM industrial grade 128×64 lcd display module FSTN positive display module with reliable and flexible. JDA can provide differentiated solutions (such as anti-glare and high-brightness industrial display screens) for customers in various field.
Module No: JDA12864-19243A1
Operating Temp：-30 to 80℃
View Angle: Wide viewing angle
Connector: COG+FPC
Drive IC: UC1701x
Send Inquiry
Product Description
Product Parameters of 128x64 LCD display module FSTN positive display module
| Module Outline | 45.5(H)×32.45(V)×3.6(T)mm | Connector | COG+FPC |
| View Area | 39.8(W)*22.7(H)mm | Operating Temp. | -30 to 80℃ |
| LCD Type | FSTN/POSITIVE | Storage Temp. | -40 to 90℃ |
| View Direction | 6 o’clock | Backlight | 3 white LEDs |
| Drive IC | UC1701x | Drive Mode | 1/64DUTY, 1/9BIAS |
Product Introductions of 128x64 LCD display module FSTN positive display module
JINGDA-DISPLAY is a professional China 128×64 lcd display module FSTN positive display module manufacturer and supplier, if you are looking for the best 128×64 lcd display module FSTN positive display module with low price, consult us now! JDA’s 12864 graphic display drive IC of JDA12864-19243A1 module is UC1701x. The type of LCD display is typically used for embedded device, such as industrial controls, instrumentation, household appliances, and medical equipment. Customizable options like backlight color, screen size, and driver IC cater to diverse project needs. JDA’s graphic LCD display can achieves a good balance between cost and performance compared to higher-resolution displays.
Applications

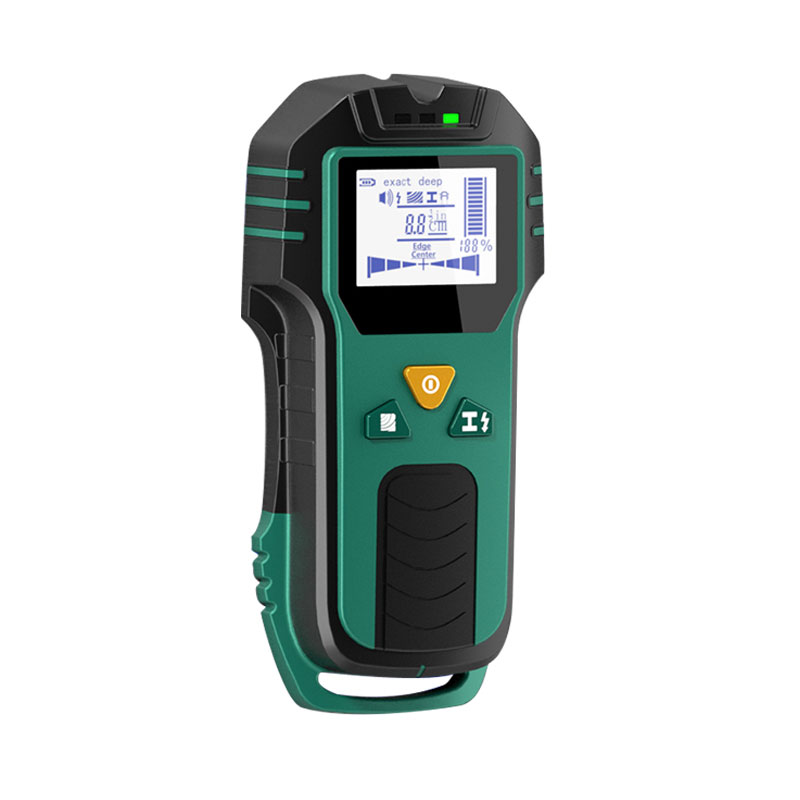

This 128x64 graphic LCD display is FSTN type, FSTN in not same level of complexity as TFT display in terms of equipping each pixel with a transistor. Its structure is simpler. When displaying static content (such as instruments and labels), the power consumption is extremely low, making it highly suitable for use in battery-powered portable devices with long battery life. Like the example picture shown.
JINGDA-DISPLAY TARGET
To be new force of display industry, offer customers high quality-price ratio mid-small sized display modules, including monochrome LCD, TFT, UART, OLED, embedded industrial all-in-one device and application solutions.
To be strong force in display industry: oriented on high standard & high quality, to meet the customers' requirements on supplier quality system.
FAQ
-Are you a manufacturer or a trading company?
Jingda display company as a professional manufacturer of liquid crystal displays in China. JDA company is a high-tech enterprise that develops, manufactures and sells display modules and HMI solutions.
-Can you customize products?
Yes, we can customize LCD display according to your requirement, such as interface, touch, FPC, dimension, etc.
-What is your lead time?
Usually the lead-time of LCD display is 30-32 days(exclude Chinese holiday).
