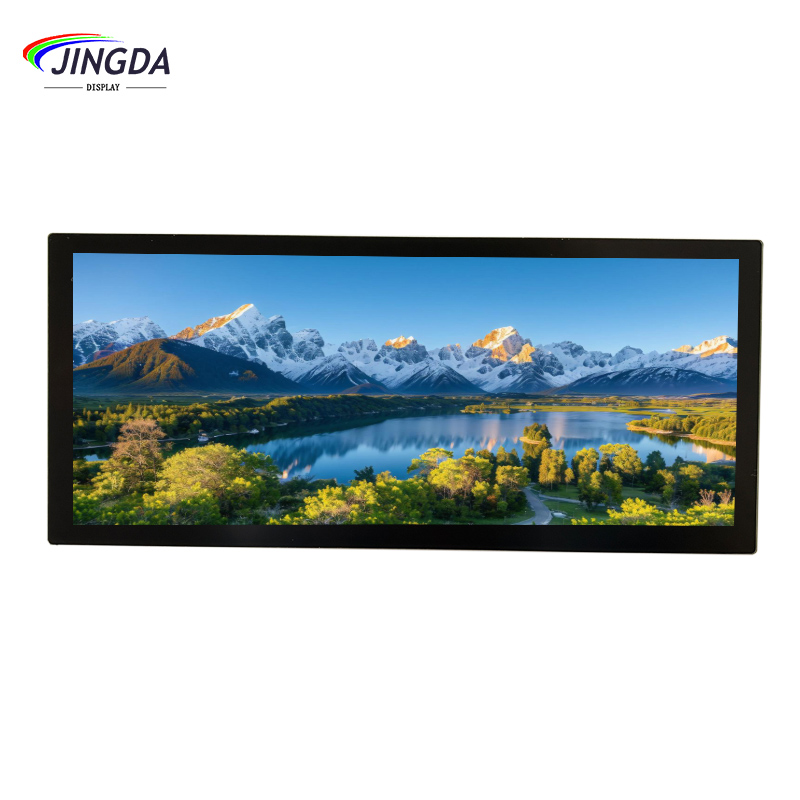

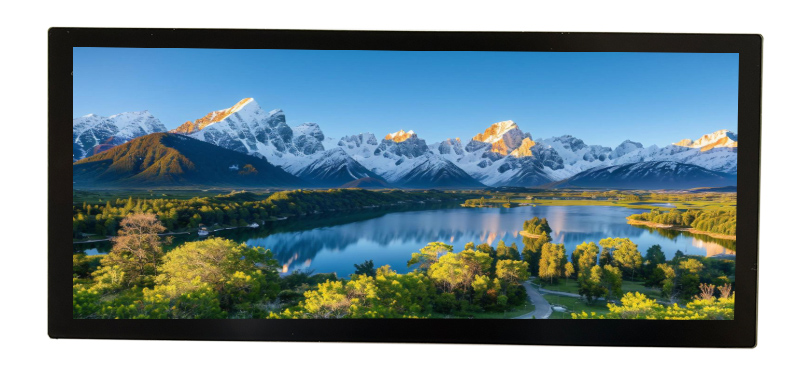

10.25 inch TFT Display Screen with Resistive Touchscreen

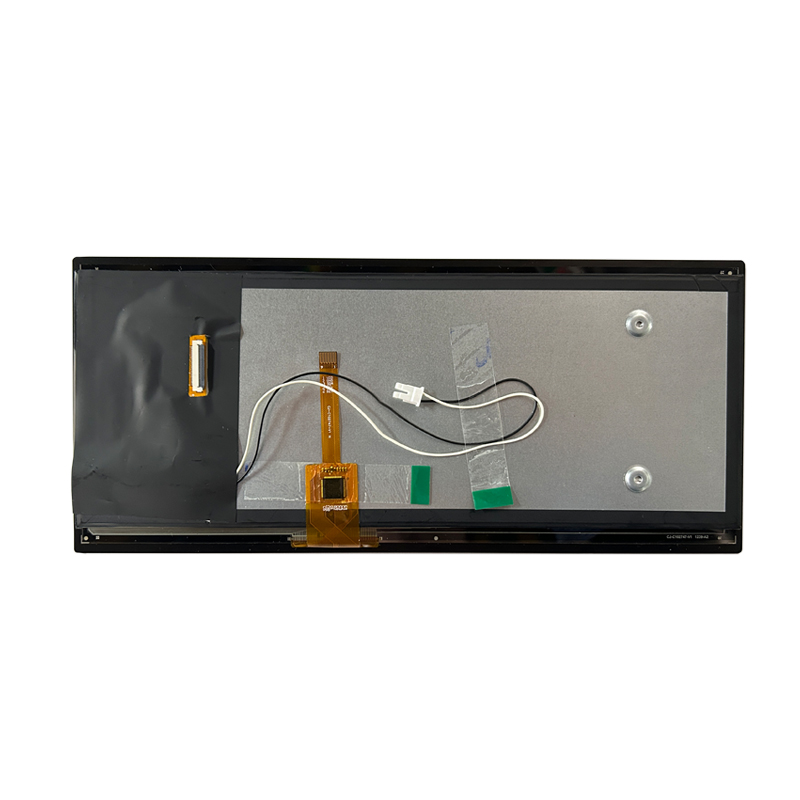

This product is a color active matrix thin film transistor (TFT) liquid crystal display (LCD). This model is composed by LTPS LCD, Polarizer, Drive IC, FPC(flexible printed circuit). Jingda Display as a professional 10.25 inch TFT display screen with resistive touchscreen supplier in China. The 10.25 inch typically offer resolutions of 1280x480, 1280x720, or higher resolution.
Product No.: JDA1025HX50LI1001
TFT Technology: LTPS
Touch IC: GT9271
Brightness: 1000nits
Operating Temp.: -20 to 70℃

Send Inquiry

Product Description

Specifications of 10.25 inch TFT display screen with resistive touchscreen

LCD Size	10.25 inch	Resolution	1920xRGBX720
Outline Dimension	265.20(H)x109.80(V)mm	Interface	2-PORT-LVDS
TFT Technology	LTPS	Touch Technology	In-cell touch
Active Area	243.84(H)x91.44(V)mm	Pixel Pitch	0.1269(W)x0.1269(H)mm
Color Bit	24 bit	Touch IC	GT9271
Aspect Ratio	8:3	Luminance	1000 nits
Operating Temp.	-20 to 70℃	Storage Temp.	-30 to 80℃

Product Introductions of 10.25 inch TFT display screen with resistive touchscreen

The 10.25 inch TFT display screen with resistive touchscreen, with its balanced size, reliable performance and mature supply chain, plays a significant role in the automotive, industrial and consumer sectors. The 10.25-inch color screen mainly supports various mainstream interfaces such as LVDS, RGB, and MIPI-DSI.

The Features of 10.25 inch TFT display screen with resistive touchscreen

1- 10.25" TDDI in-cell TFT LCD

2- Supported 8:3 HD+ (1920RGBx720 pixels) high resolution

3- The touch technology of 10.25 inch display is In-cell touch

4- The light transmittance of the cover plate is ≥91%.

Application of 10.25 inch TFT display screen with resistive touchscreen

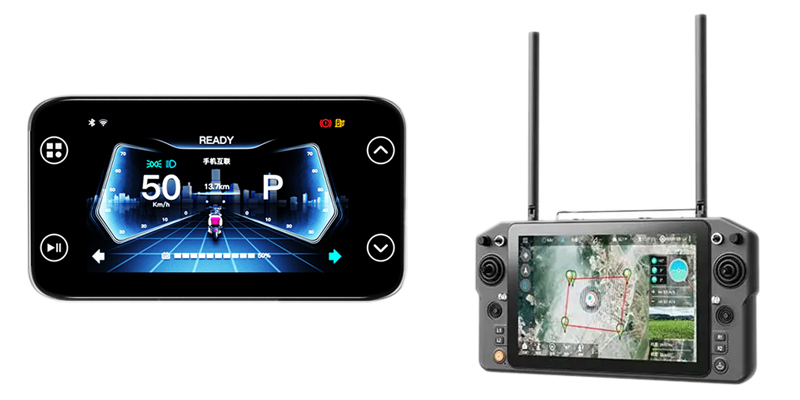

This TFT display size is commonly used in Digital dashboard: Replacing traditional mechanical gauges, it displays vehicle speed, engine speed, and ADAS warning information. Portable devices: High-end drone remote controllers, monitor screens of digital cameras, portable game consoles. As below is a example.

Certificate Quality

Shenzhen Jingda Display Technology Co., Ltd adheres to the concept of sustainable development, we can provide more better quality and stable services to our clients. The company has established a scientific and rigorous quality management system, we have passed IS09001, SO14001 system certification.
