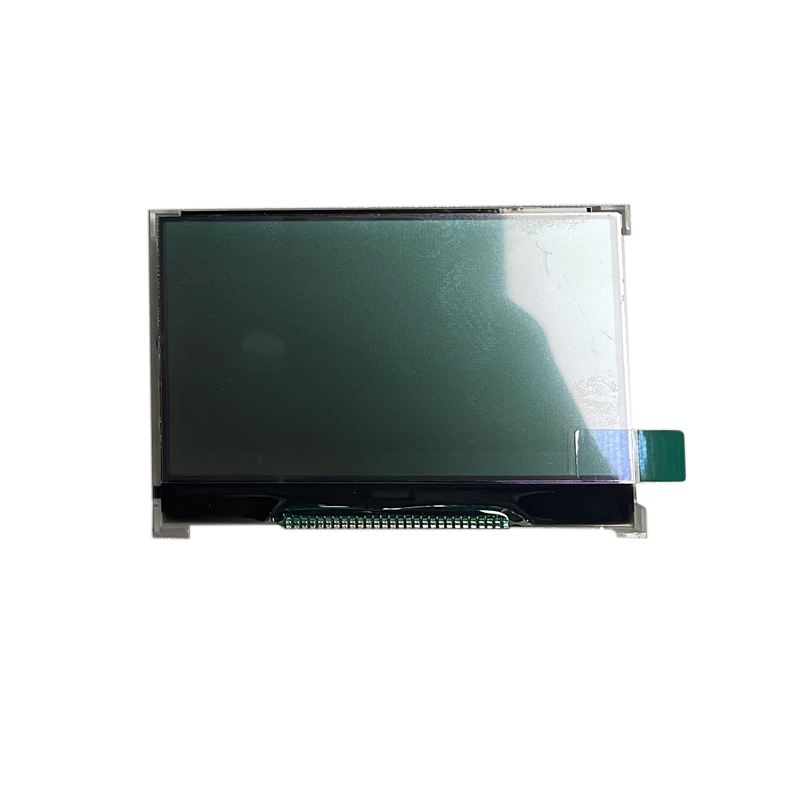

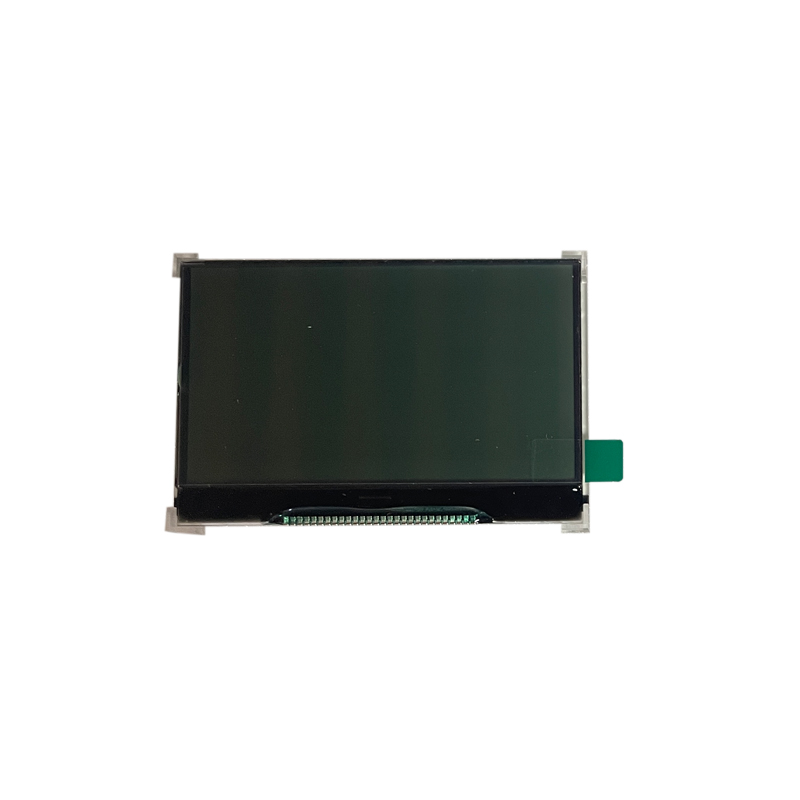

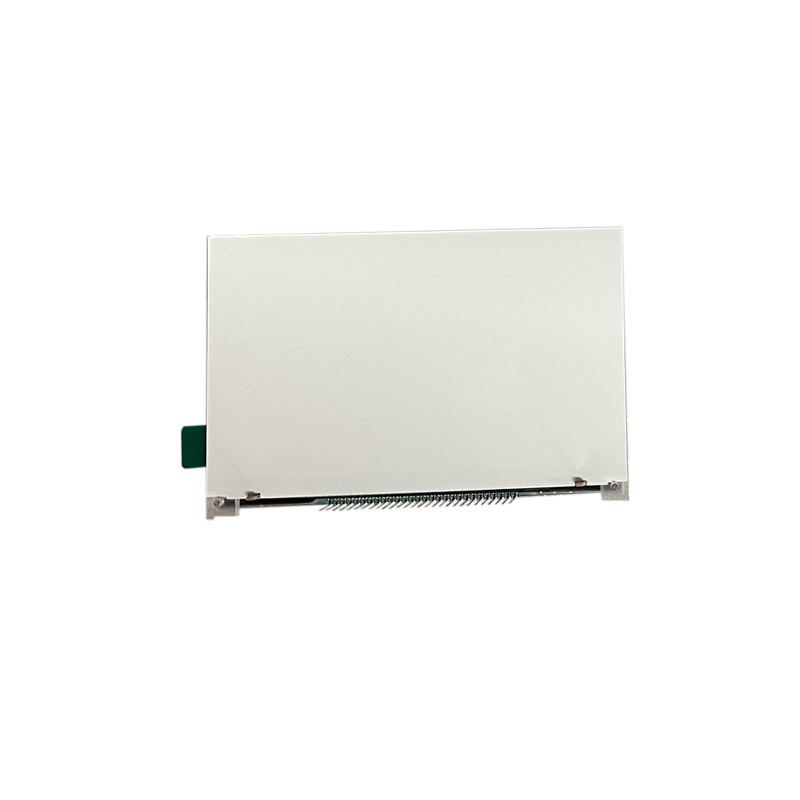

LCD Screen 128x64 FSTN Gas Meter Graphic Display

Jingda Display is a professional supplier of LCD displays in Shenzhen, JDA has a rich experience in LCD field for 10+ years. Jingda display’s LCD screen 128x64 FSTN gas meter graphic display is high quality, high contract and wide viewing angle suitable for outdoor environment. The 128x64 display module adopted FSTN technology, and the drive IC is ST7565R. Its transflective polarizer option enables sunlight readability while keeping power consumption low—critical for battery-powered utility meters. The operating temperature range spans from -20°C to +70°C, ensuring reliable performance under seasonal weather variations.
Product No.: JDA12864-15022A1
Drive IC: ST7565R
LCD type: FSTN/Transflective
Operating Temp.: -20 to 70℃

Send Inquiry

Product Description

Product Specifications of LCD Screen 128x64 FSTN Gas Meter Graphic Display

Module Size	77.4(W)x52.4(H)x6(T)mm	Display View Area	70(W)x40(H)mm
LCD Type	FSTN/Positive	Viewing Angle	6 O’clock
Drive IC	ST7565R or compatible IC	Connector Tape	COG+7mm Pin
Operating Temp.	-20 to 70℃	Storage Temp.	-30 to 80℃

Product Introductions

Jingda display’s 128x64 graphic LCD display is more than just a visual interface,it’s a reliable component that powers the functionality of modern gas meters. With a 128x64 pixel resolution, it offers ample space to display critical information such as cumulative gas consumption, real-time flow rate, battery status, fault alerts, and calibration data--all with exceptional clarity and precision. Each unit undergoes strict quality control checks to ensure perfect performance from pixel uniformity to interface compatibility. We understand that the design of each gas meter is unique, which is why we offer flexible customization options, including backlight color (white, blue, or green), viewing angle adjustment, and connector modification, to customize the display according to your specific application needs.

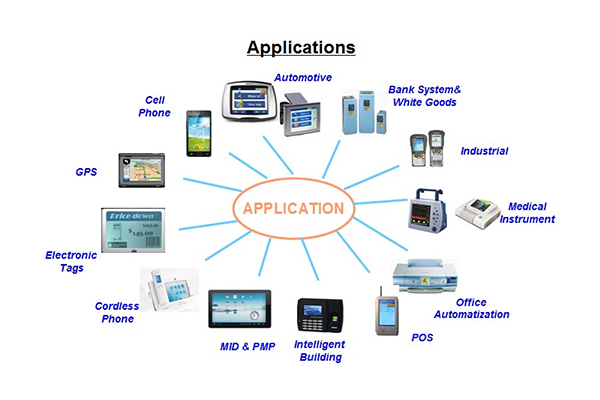

Product Applications

128x64 monochrome LCD display is applied in various fields, such as:

Industrial control: industrial HMI, testing and measuring instruments

Automotive electronics: in car central control, dashboard

Medical health: medical monitors, portable diagnostic devices

Consumer electronics: game consoles, handheld terminals

Why Choose Jingda Display?

Shenzhen Jingda Display was established in2015. Jingda display is not only a single product supplier, but also a comprehensive enterprise that integrates research and development, manufacturing, sales, and HMI solutions. JDA Provide integrated solutions from LCD display, TFT display, OLED display to touch screen, backlight, and control board.Covering product sizes of 0.96-25 inches, interfaces and structures can be customized. Choosing Jingda Display’s 128x64 graphic LCD display for your gas meter applications — where precision meets durability, and innovation meets reliability. Experience the difference that a premium display can make in your products, and partner with a brand that’s committed to your success.

About the Honor

“Guided by science & technology and based on quality,” JDA’s philosophy. Jingda display(JDA) company adheres to the concept of sustainable development, we can provide more better quality and stable services to our clients. The company has established a scientific and rigorous quality management system, we have passed IS09001, SO14001 system certification.
