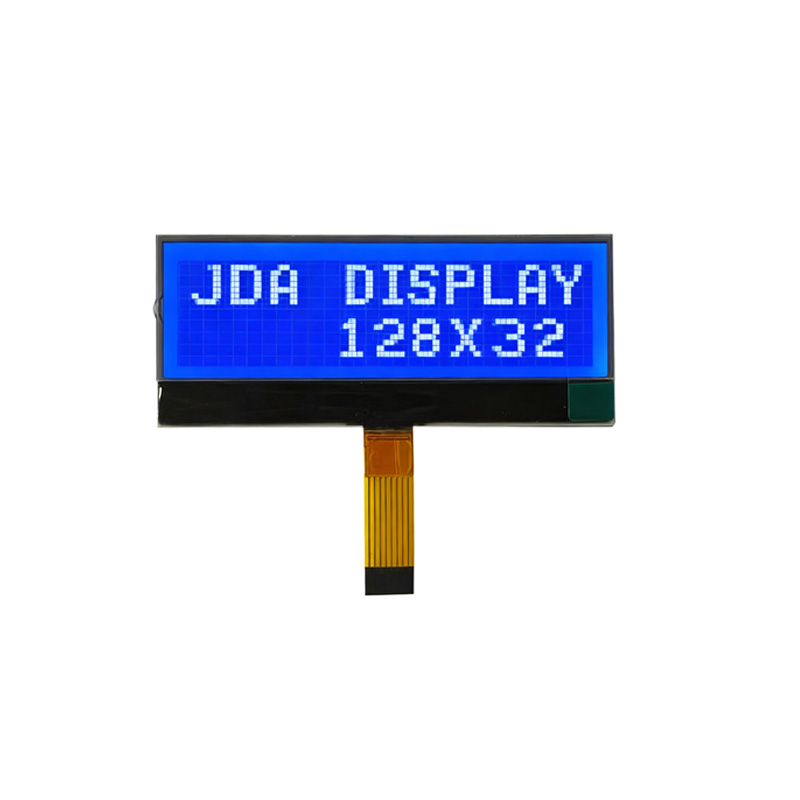

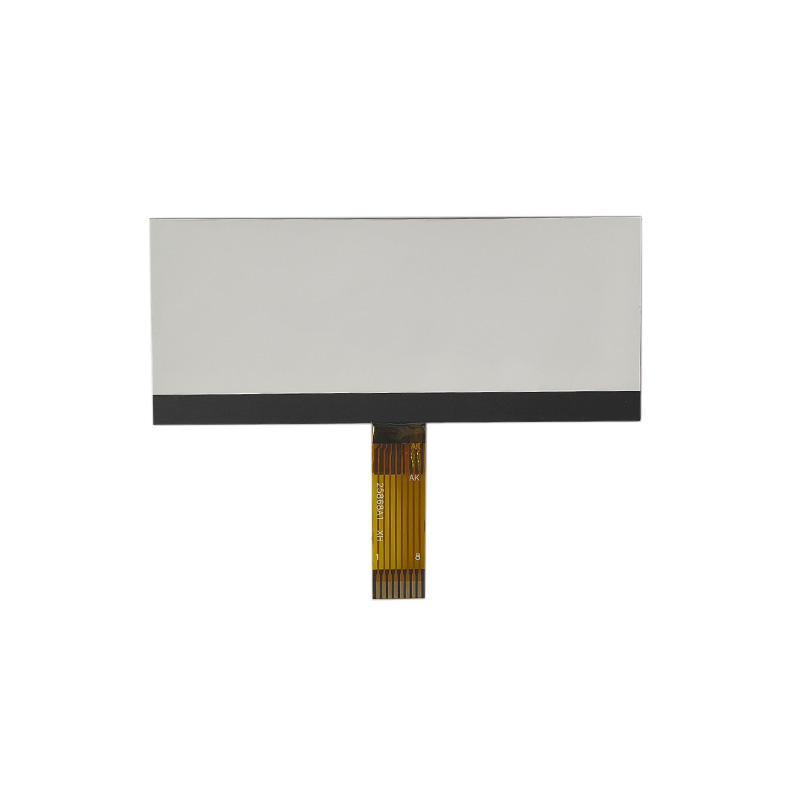

LCD Display 128x32 Graphic Dot Matrix Screen ST7567T Drive IC

Jingda display is a professional supplier of graphic lcd display in China, the display module is a 128x32-pixel graphic dot matrix LCD display based on the ST7567T driver control chip. It adopts backlihgt with 5 PCS white LEDs. The LCD display 128x32 graphic dot matrix screen ST7567T drive IC strikes a good balance between price, functionality, and complexity.
Viewing angle: 6 O’clock
Drive IC: ST7567T
Connector:COG+FPC
Display mode:STN/BLUE, Negative/Transmissive
Operating Temp.: -20 to 70℃

Send Inquiry

Product Description

Technical Parameters

Display mode	STN/BLUE, Negative	Viewing angle	6 O’clock
Connector	COG+FPC	Drive IC	ST7567T
Backlight	5 white LEDs	Operating Temp.	-20 to 70℃
Dots	128x32	Storage Temp.	-30 to 80℃

Product Introductions

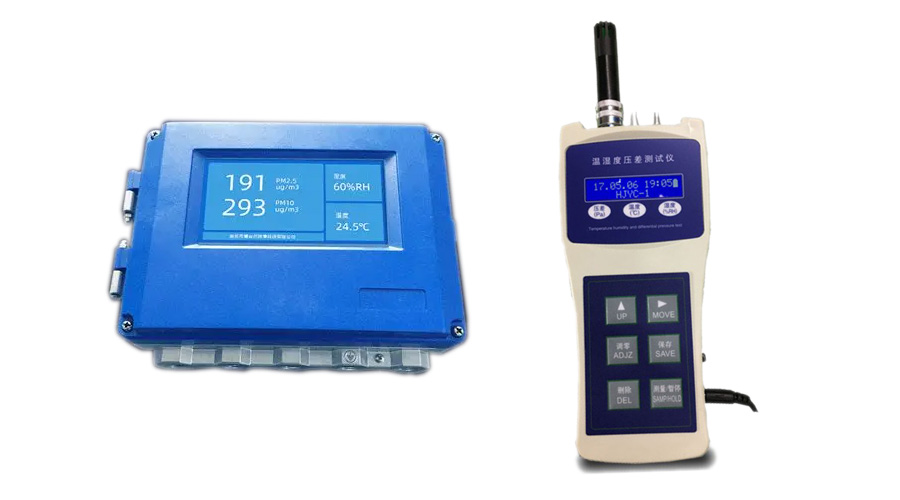

LCD display 128x32 graphic dot matrix screen ST7567T drive IC is a monochrome graphic liquid crystal display module that adopts STN technology. This module features a 128× 32 pixel dot matrix display resolution, supports multiple display modes, and is characterized by high contrast, low power consumption, and wide viewing angles. It is highly suitable for applications in portable devices, instruments and meters, medical equipment, industrial control, and smart home appliances, among other fields.
