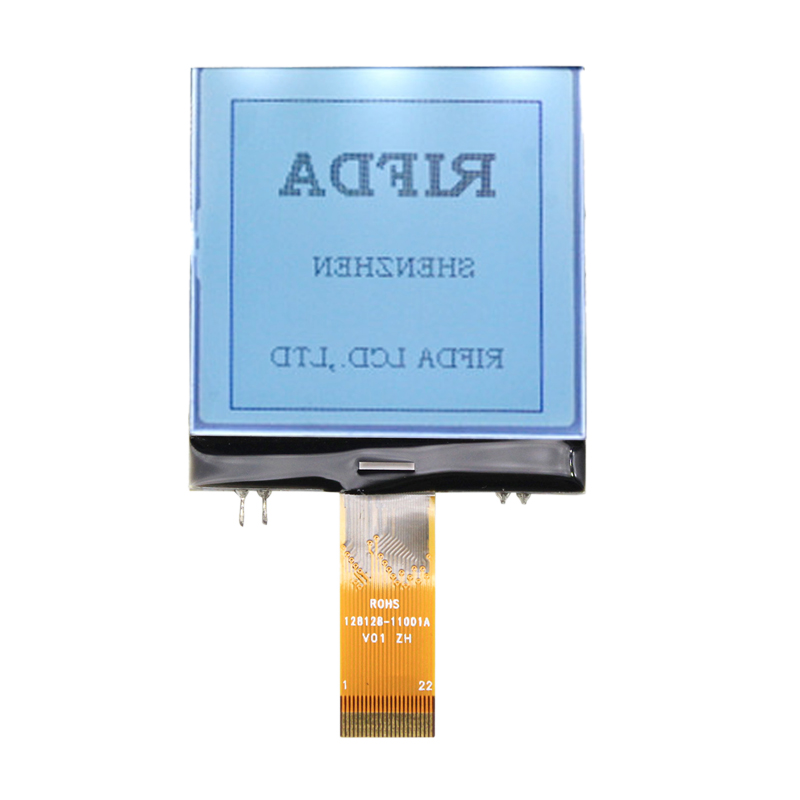

LCD Display 128x128 Graphic Dot Matrix LCD Display FSTN LCD Module

Jingda company is a development production and sales of integrated technology-based manufacturers. As a professional manufacturer of LCD display supplier in Shenzhen, China. JDA support custom LCD display 128x128 graphic dot matrix lcd display FSTN LCD module, for example, custom backlight, interface, size and shape, etc.
Module No.: JDA128128-11001A
View Angle: Wide viewing angle
Drive IC: UC1617S
LCD Type: FSTN/Positive
Working Temp.: -20 to 70℃

Send Inquiry

Product Description

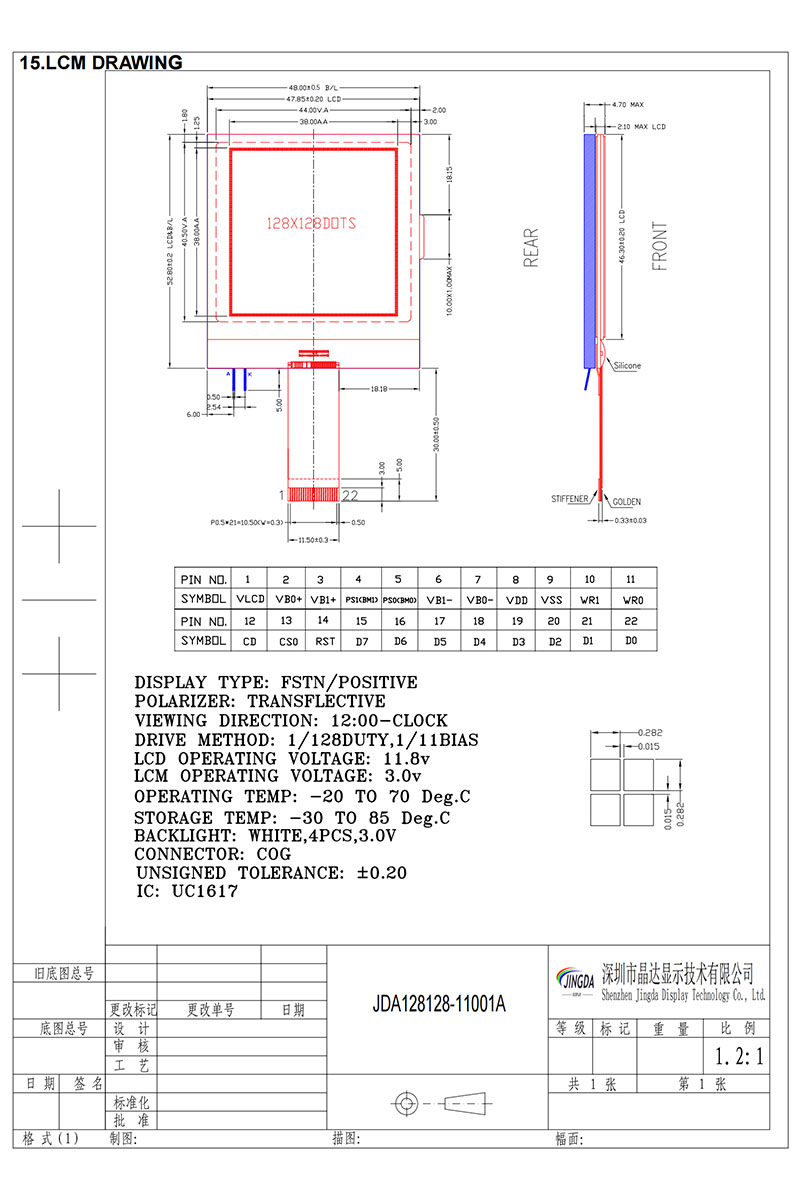

Technical Parameters

Module Size	48(W)52.8(H)4.7(T)mm	Display View Area	44(W)*40.5(H)mm
LCD Type	FSTN/Positive	View Angle	6 O’clock
Drive IC	UC1617S	Backlight	Power/3.0+/-0.2V/White
Operating Temp.	-20 to 70℃	Storage Temp.	-30 to 85℃

Product Introductions

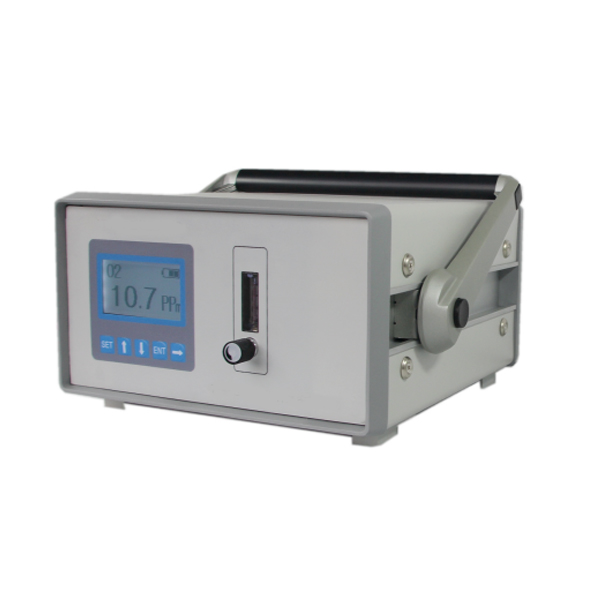

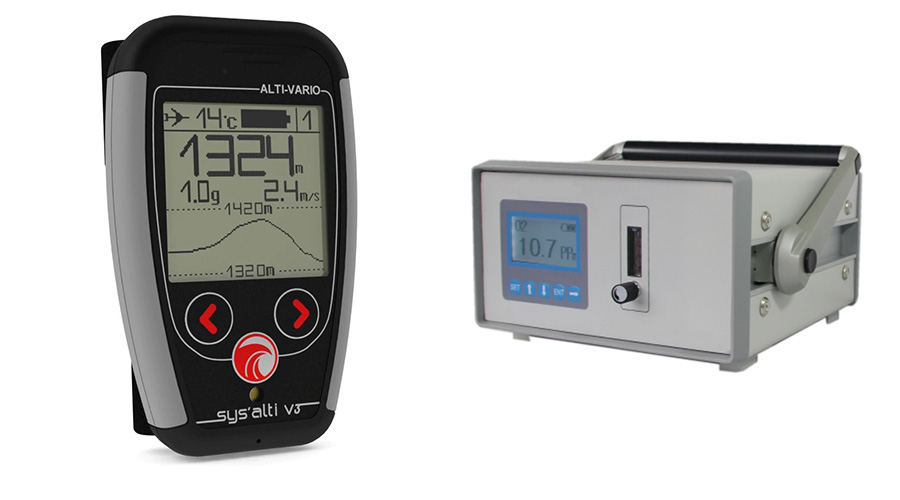

The lcd display 128x128 graphic dot matrix lcd display FSTN LCD module has excellent visual effects, wide temperature range, and low power consumption, making it very suitable for use in industrial equipment, instruments, medical equipment, consumer electronics, and other fields. The Drive IC is UC1617S, this product adopt FSTN Technology, it maintains the advantages of STN (Super Twisted Nematic) while significantly improving contrast and readability by adding an optical compensation film in the polarizer, making it still clear and visible under strong light and multiple angles.
