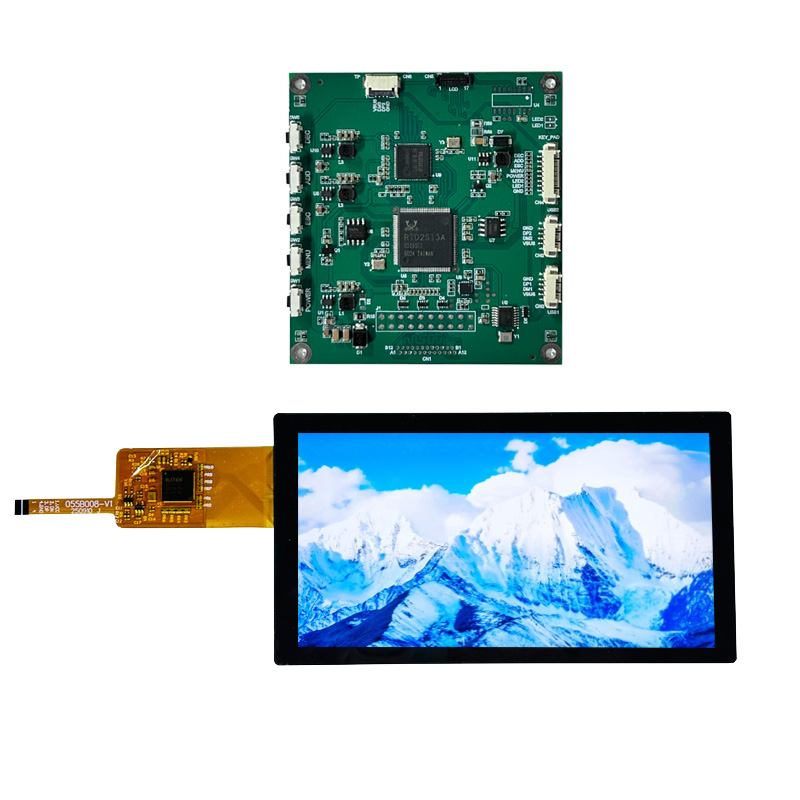

Jingda Display and the client jointly developed a solution for video boards to match 5.5-inch TFT display, the 5.5 inch TFT screen with video board LCD display is 10-fingers touchscreen and the touch adopts full lamination technology. Compatible with all operating systems: Windows, Linux, Android, Mac OS
PCB No.: JD19201080-01
LCD Module No.: JD19201080V055
Resolution: 1920x1080
TFT Input Data: MPI interface
TFT Drive: HX8399-A
Hardness: Surface hardness≥9H
Dimension |
80.65(H)x146.79(V)x3.79(T) |
Resolution |
1080RGB*1920 |
TP Active Area |
68.44(H)x121.36(V) |
LCD Active Area |
68.04(H)x120.96(V) |
Pixel Size |
0.021(H)x0.063(V) |
Luminousness |
≥82±2% |
TFT Input Data |
MPI Interface |
Display Mode |
LTPS-TFT/Transmissive |
TFT Drive |
HX8399-A |
Viewing Direction |
All |
Touch Controller |
GT9271 |
TP Interface |
USB |
Surface Hardness |
≥ 9H |
Brightness |
800 cd/㎡ |
Operating Temp. |
-10℃ to 60℃ |
Storage Temp. |
-20℃ to 70℃ |
Touch Screen |
Supports USB interface touch screen |
Expansion Port |
Two expandable USB 2.0 |

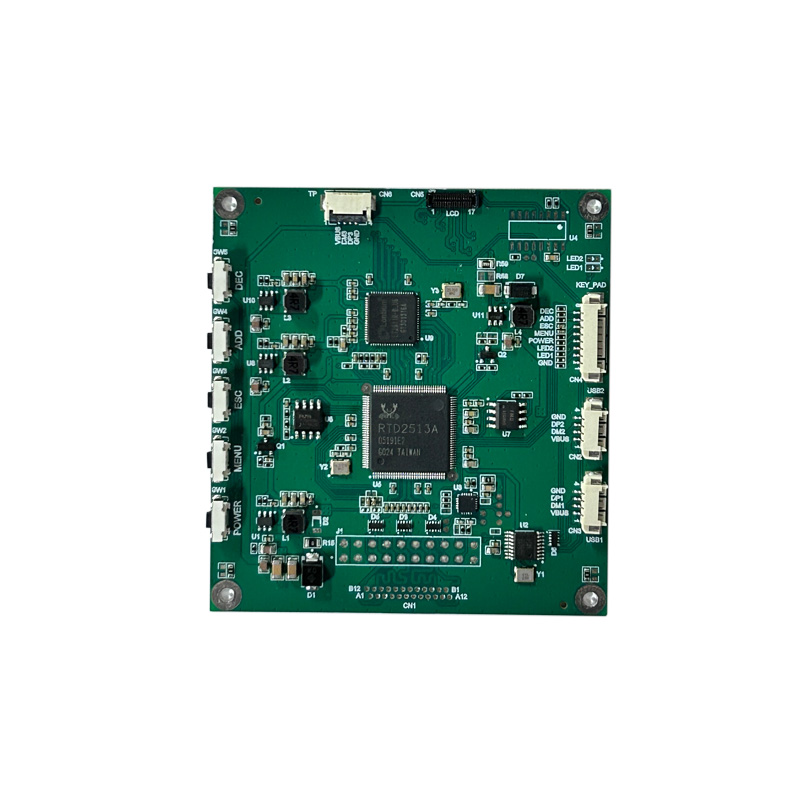

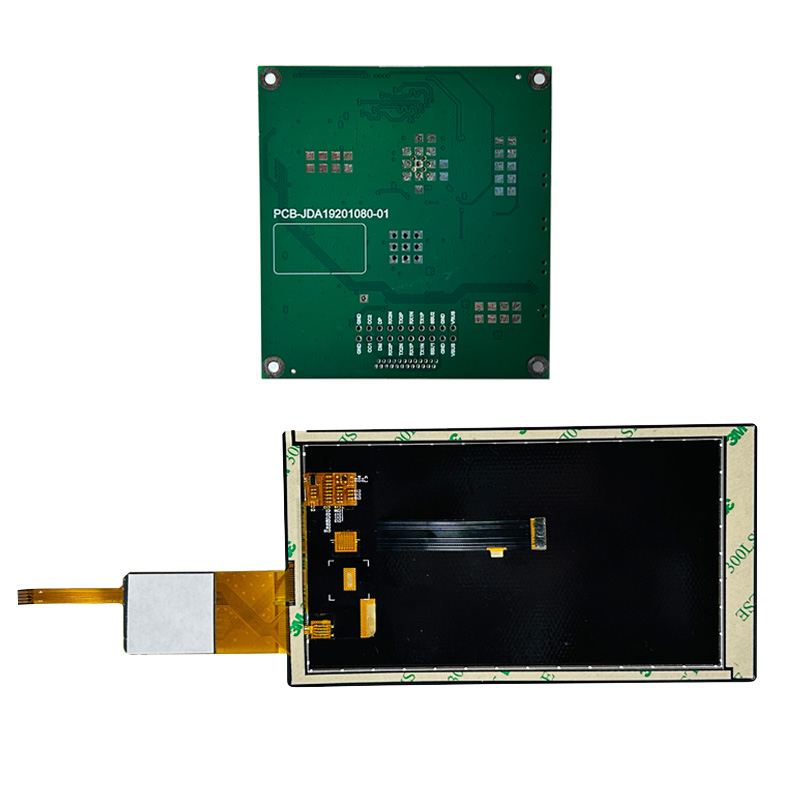

The TFT LCD display of JD19201080V055 module is a 1080*1920 dots matrix TFT LCD module. It has a TFT panel composed of 3240 sources and 1920 gates. The 5.5 inch TFT screen with video board LCD display can be easily accessed by micro-controller. This module is equipped with a multi-touch screen using full lamination technology, and the touch screen adopts USB for communication. Besides, the PCB board of JDA19201080-01 is a multi-functional display driver board. Lt supports video signal input via Type-C, touch screen control through USB,OSD menu, and brightness/contrast adjustment via buttons and so on. Its MIPI output supports a maximum resolution of 1920x1080@60Hz and is equipped with two ports expandable USB 2.0 for connecting to two USB2.0 devices.

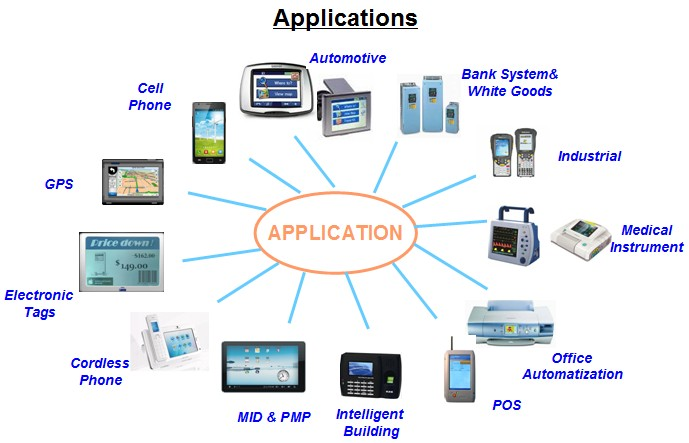

Jingda display is established in 2015, which is a high-tech enterprise that develops, manufactures and sells display module and HMI solutions. JDA's products include monochrome LCD and LCM, 0.96-25 inch TFT & OLED LCM HMI solutions, the products have been used in the fields of Electric Power, Medicals Security Communications Automobiles Banking, Smart Homes instruments, Meters. The main 3 product line is TFT display screen, OLED display and monochrome LCD display with TN, HTN, STN, FSTN, VA. In 2015, Jingda display has a new product line-stretched bar display monitor(digital screen) and we have successful case on this field. Jingda will be in the display screen market more and more better and innovate different LCD products.
