8 inch TFT Capacitive CTP Portable Display with Type-C Interface
  • 8 inch TFT Capacitive CTP Portable Display with Type-C Interface8 inch TFT Capacitive CTP Portable Display with Type-C Interface
  • 8 inch TFT Capacitive CTP Portable Display with Type-C Interface8 inch TFT Capacitive CTP Portable Display with Type-C Interface
  • 8 inch TFT Capacitive CTP Portable Display with Type-C Interface8 inch TFT Capacitive CTP Portable Display with Type-C Interface

8 inch TFT Capacitive CTP Portable Display with Type-C Interface

This 8 inch TFT capacitive CTP portable display with Type-C Interface high resolution 1280x800, and feature of ultra-thin/High brightness/matte surface.
Technology: COB technology
Surface Hardness: 9H
Drive IC: GT9271
View Angle: Wide viewing angle
Operating Temp: Wide temperature operation

Send Inquiry

Product Description

Technical Parameters

Structure
8 inch G+G
Display Size
181.25*118.75*2.3mm
Luminousness
≥83%
Brightness
800nits
Drive IC
GT9271
Resolution
1280x800
Operating Temp.
-20℃ TO +70℃
Storage Temp.
-30℃ TO +80℃

Product Introductions

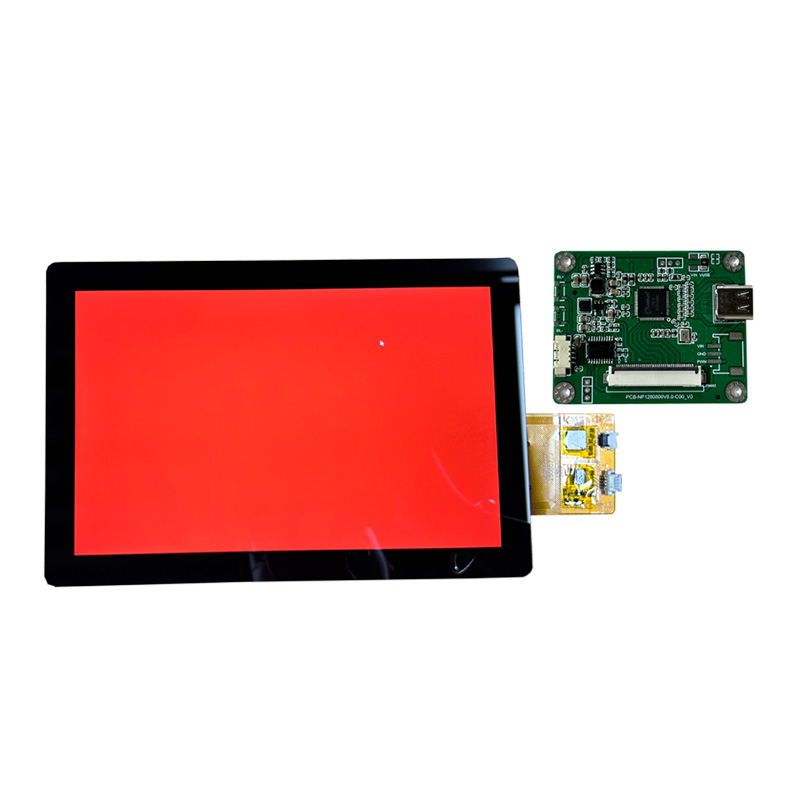

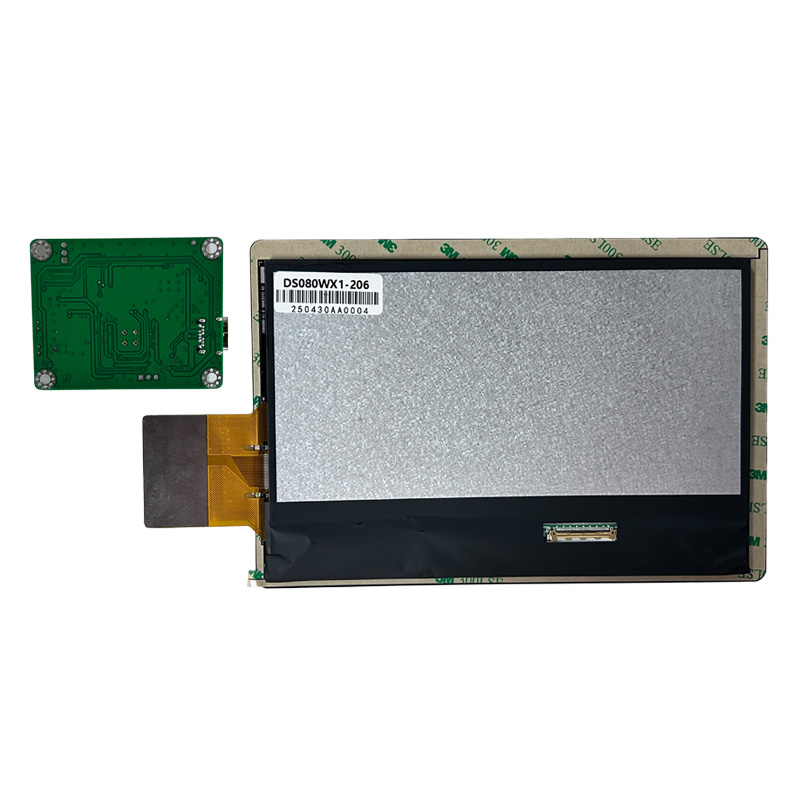

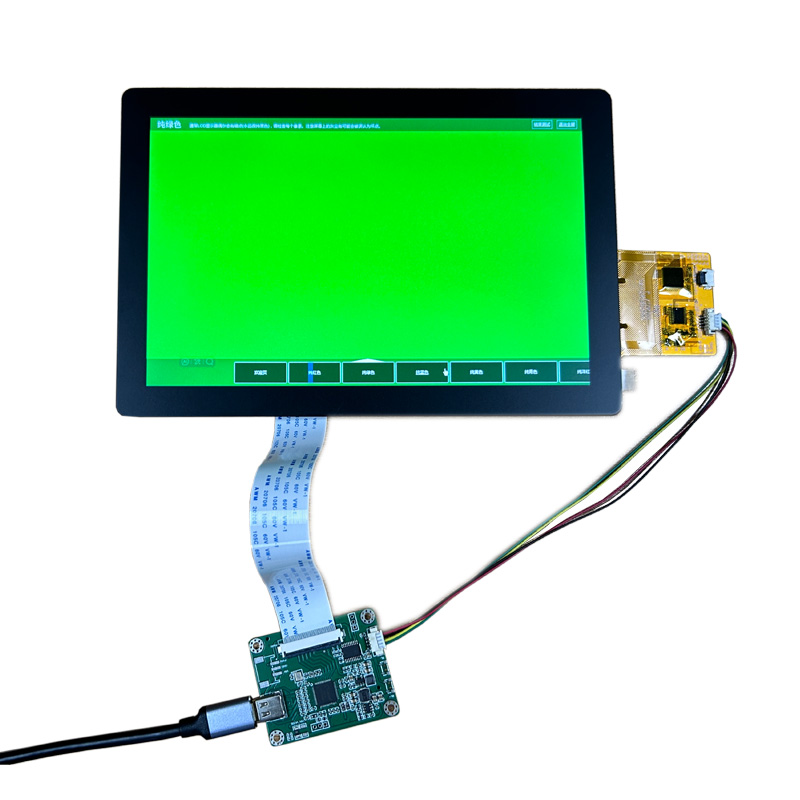

The 8 inch TFT capacitive CTP portable display with Type-C Interface is a new product for JDA. The dirve IC use GT9271. JDA Display company assist a client to develop 8 inch TFT display and CTP and video board. The resolution is 1280x800 and drive IC is GT9217. it features of ultra-thin/High brightness/matte surface. The 9H tempered glass(aviation-grade) make the surface scratch-resistant. Being quipped with ten-finger and CTP precise touch technology, switching to other system seamlessly as it compatible with Windows/Android/Linux system.



Applications

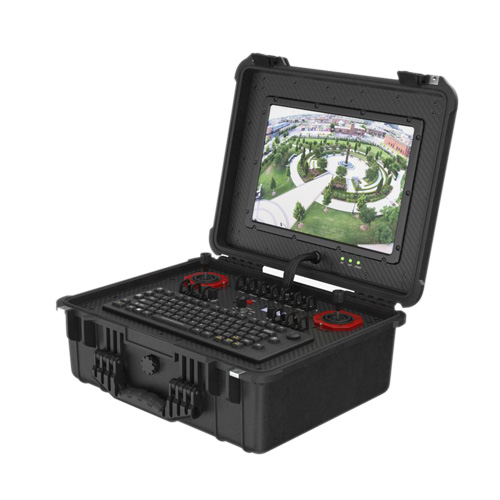

The 8 inch TFT capacitive touch display used in industrial portable device and system controller. It can also be used in other fields.




Hot Tags: 8 inch TFT Capacitive CTP Portable Display, Touch Panel TFT display, TFT display with video board
