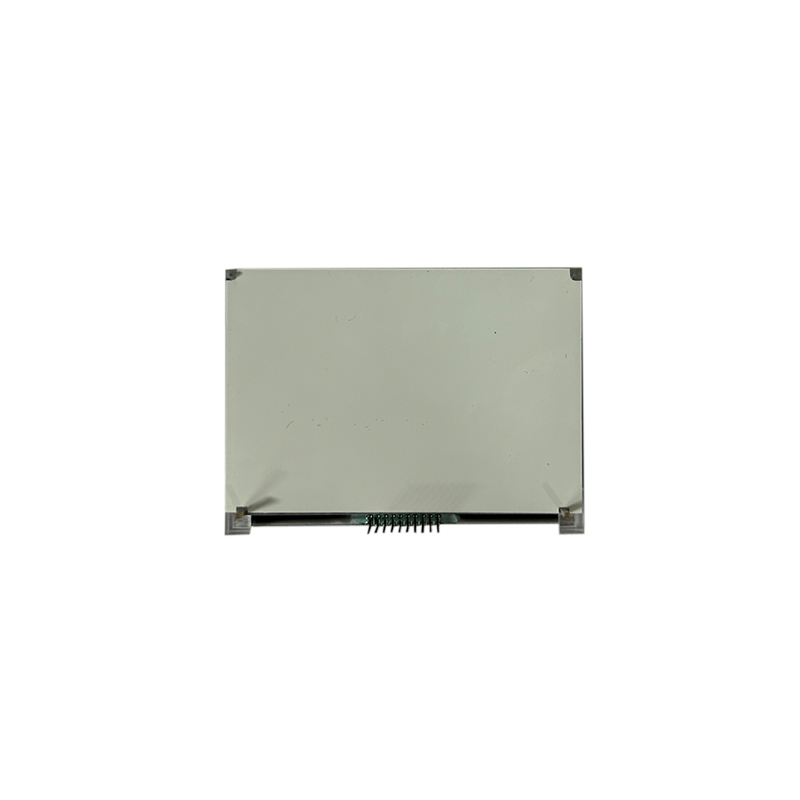

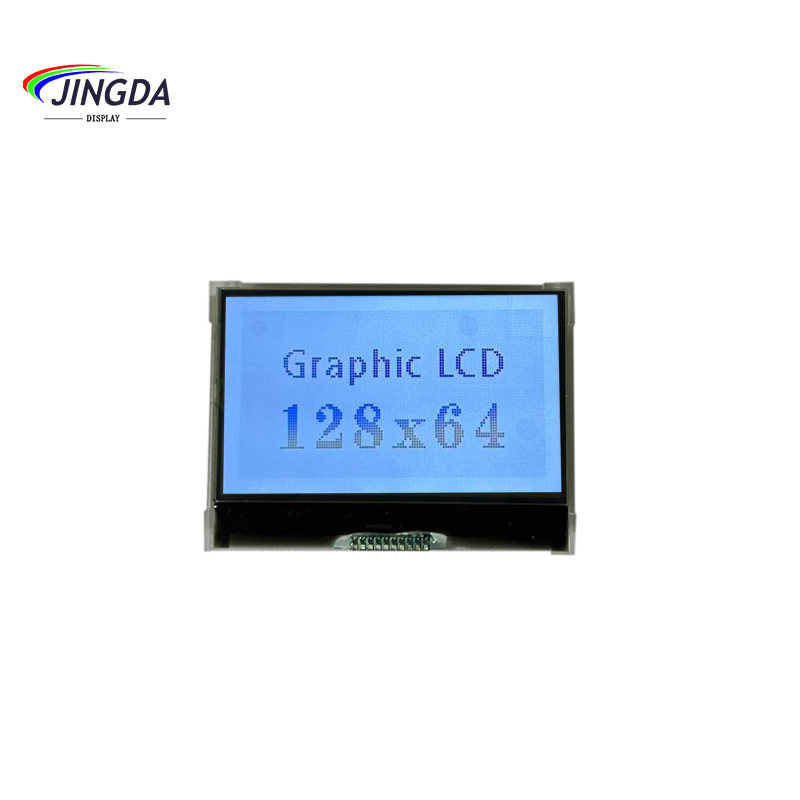

128x64 Graphic LCD Display FSTN LCD Module

Graphic LCD display of 128x64 module is a classic resolution specification, widely used in industrial instruments, smart homes and electronic production. It can precisely arrange text, numbers and custom graphics on the screen, and usually supports the display of 4 lines of Chinese characters or 8 lines of English. As a manufacturer of 128x64 graphic LCD display FSTN LCD module in China, JDA’s LCD products have been validated in the market for many years, we have strict control from research and development, production to sales, providing customers with excellent quality to meet project requirements.
Product No.: JDA12864-26333A1
Drive IC: AIP31567A
Working Environment: Wide temperature operation
View Angle: Wide viewing angle

Send Inquiry

Product Description

Introductions

Jingda Display is a professional supplier that provides high cost performance and high-quality LCD displays in China. JDA factory is located in Fujian Province, China. All our products comply with international RoHS and CE certification standards, and we have long-term stable cooperative relationships with customers in Europe, America, Southeast Asia, and other regions. We focus on industrial display stability and practicability, providing standardized and customized LCD display solutions for global customers, with reliable product quality and professional after-sales service winning wide market recognition.

Parameters of 128x64 Graphic LCD Display FSTN LCD Module

Size	60.10x44.50x2.0mm	Display Type	FSTN/Positive
Viewing Direction	6:00	Display IC	AIP31567A
Connector	PIN	LCD VOP	9.5V
Operating Temp.	-20 to 70℃	Storage Temp.	-30 to 80℃

Product Features

1. High-Definition Graphic Display: The 128x64 graphic LCD display supports free graphic, text, icon, and curve display without fixed character restrictions, meeting diverse personalized display needs.

2. Excellent FSTN Visual Performance: FSTN technology effectively improves viewing angle and contrast compared with traditional STN screens, reducing light reflection and ensuring dear visibility under indoor and weak outdoor light.

3. Ultra-Low Power Consumption: This LCD module adopts optimized driving circuits and low-power ICs,with standby and operating power consumption far lower than TFT displays, ideal for battery-powered portable devices.

4. Durable Industrial Design: Adopts anti-interference circuit design and high-strength glass substrate,with anti-vibration and anti-static performance, suitable for long-term stable operation in harsh industrial environments.

5. Customization Flexibility: Supports customized screen size, backlight color, interface definition, silkscreen logo, and display font to match personalized product design requirements.

Application Fields

This versatile graphic LCD module is widely used in various industrial and civil terminal devices that require stable low-power graphic display:

1. Industrial control equipment: PLC control panels, industrial instruments, data acquisition terminals

2. Smart home devices: Temperature and humidity controllers, intelligent switch panels, alarm hosts

3. Portable electronic devices: Handheld detectors, portable meters, battery-powered terminals

4. Medical and communication equipment: Small medical monitoring instruments, communication base station auxiliary displays

Company Profile

Shenzhen Jingda Display is a professional industrial monochrome LCD display manufacturer with more than 10 years of R&D, production, and sales experience, focusing on the design and production of monochrome graphic LCD modules, character LCD modules, and customized display screens. The company has a 3,000-square-meter dust-free production workshop and complete automated production and testing equipment, strictly implementing ISO quality management systems to control every production process.
