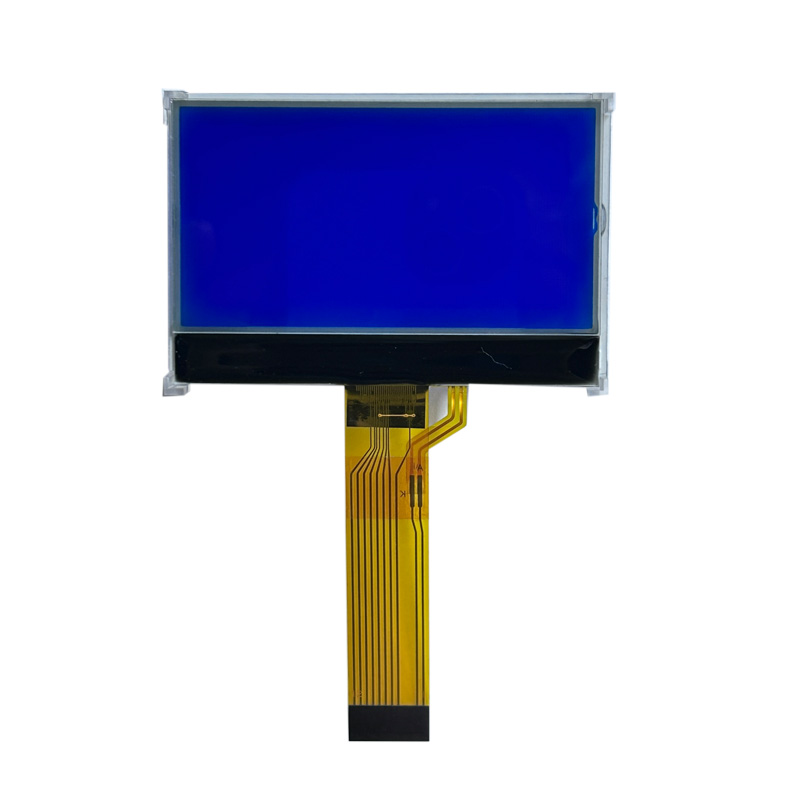

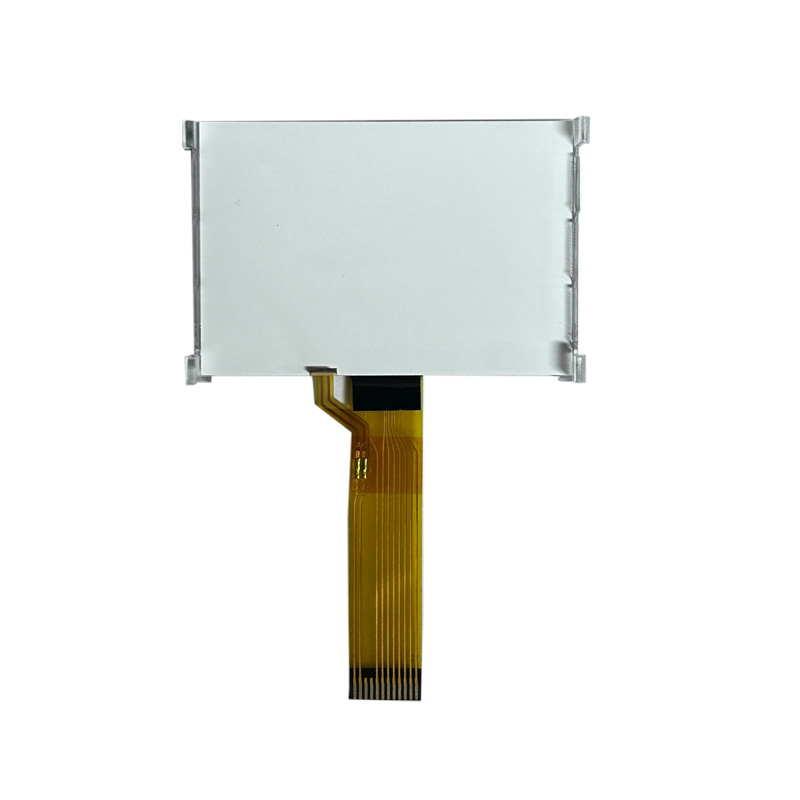

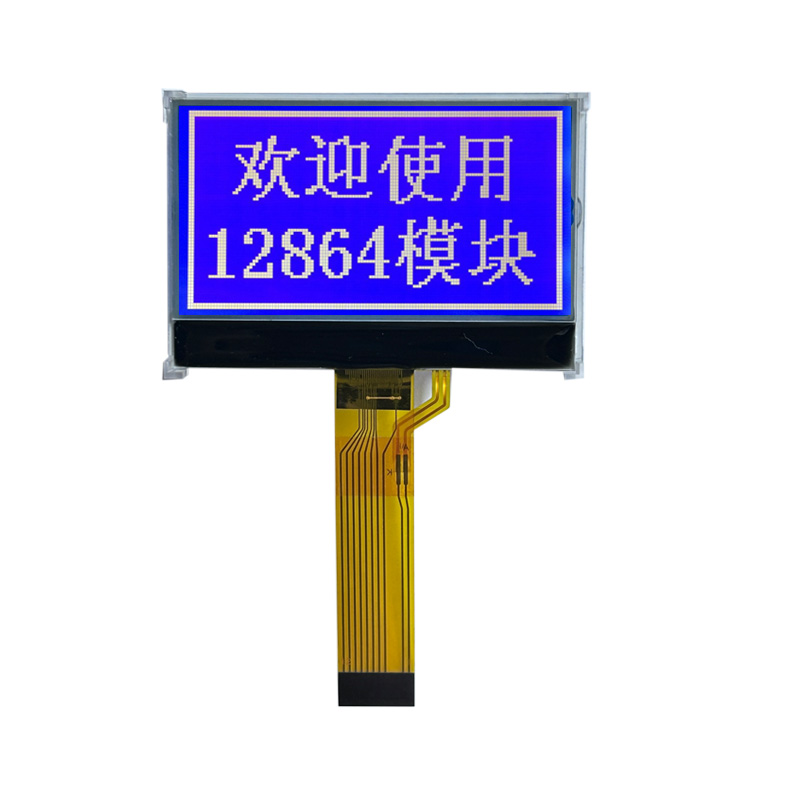

128x64 COG Graphic Display STN Blue Negative LCD Display mode

In the field of the graphic lcd screen, Jingda display not only has the length of time, but also accumulates the depth of experience, JDA can provide competitive price on the 128x64 COG graphic display STN blue negative LCD display mode. JDA provides comprehensive and in-depth customization from hardware interfaces, display content to communication protocols, allowing dot matrix screens to seamlessly integrate with your exclusive system.
Product No.: JDA12864-25767A1
Display Mode: STN/Blue
Drive IC: UC1701c Interface: I2C
TFT Drive: HX8399-A
Viewing Direction: 6 O’clock

Send Inquiry

Product Description

Technical Parameters

Module Size	67.3(W)45.7(H)8.3(T)mm	View display area	61(W)*31.4(H)(min)mm
Active Area	54.99(W)*27.47(H)	Number of Dots	128x64
Dots size	0.38x0.38	Dots Pitch	0.43x0.43
Display Mode	STN/BLUE/Transmissive	Controller IC	UC1701c
Interface Input Data	I2C	Viewing Direction	6 O’clock
Operating Temp.	-20℃ to 60℃	Storage Temp	-30℃ to 80℃

Product Introductions

The graphic lcd display of JDA12864-25767A1 module adopt STN transmissive technology, and the drive IC is UC1701c. For this 128x64 COG graphic display STN blue negative LCD display mode, it supports wide working environment -30℃ to 80℃.We use well-known brand driver ICs and high-quality LED chips to ensure ultra long lifespan and extremely low defect rate. Choosing JDA's 128x64 dot graphic lcd screen means choosing a mature product that has been thoroughly tested in terms of information density, reliability, display quality, customization, and technical support.
