128x128 Monochrome Graphic LCD Display Module
  • 128x128 Monochrome Graphic LCD Display Module128x128 Monochrome Graphic LCD Display Module
  • 128x128 Monochrome Graphic LCD Display Module128x128 Monochrome Graphic LCD Display Module

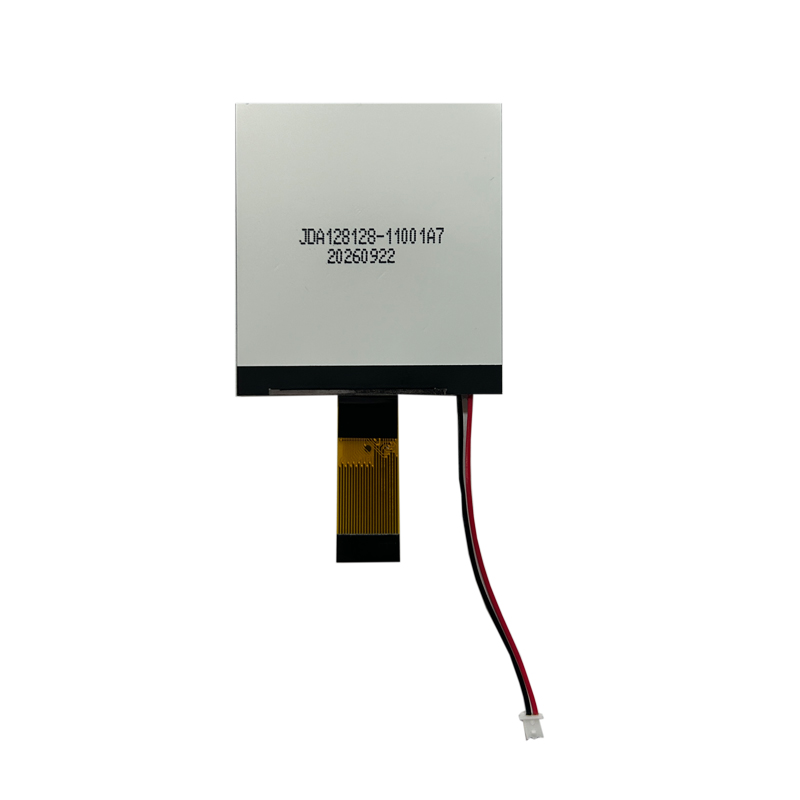

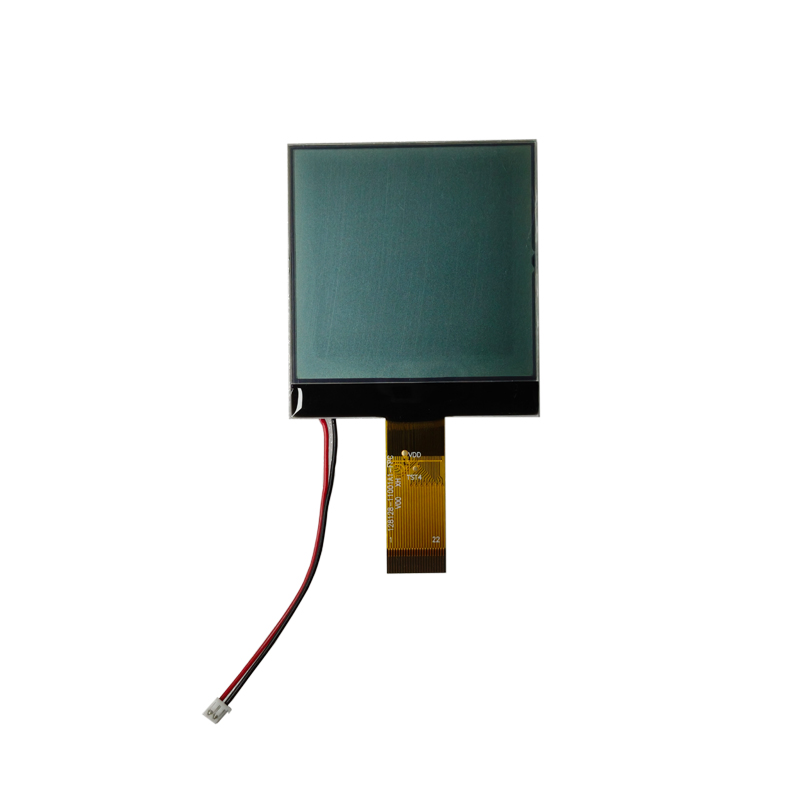

128x128 Monochrome Graphic LCD Display Module

    This compact 128x128 Monochrome Graphic LCD Display Module offers high reliability and low power consumption for industrial applications..
    Product No.: JDA128128-11001A7
    Display Type: FSTN/Transflective
    Viewing Direction: 12 O’clock
    Drive IC: UC1617S
    Perfect for flight instruments and smart devices. Contact us for custom tooling and a 24-hour quote.

    Send Inquiry

    Product Description

    Technical Parameters of 128x128 Monochrome Graphic LCD Display Module

    Module Size
    48(W)x52.8(H)x4.7(T)mm
    Display View Area
    44(W)x40.5(H)mm
    LCD Type
    FSTN/Positive
    View Angle
    6 O’clock
    Drive IC
    UC1617S
    Backlight Power/3.0+/-0.2V/White
    Operating Temp.
    -20 to 70℃
    Storage Temp.
    -30 to 85℃

    Product Introductions

    The LCD display 128x128 graphic display FSTN LCD module has excellent visual effects, wide temperature range, and low power consumption, making it very suitable for use in industrial equipment, instruments, etc. The JDA128128-11001A7 lcd display module is mainly used for flight instruments for paragliding and free flight. The Drive IC is UC1617S, this 128x128 LCD display product adopt FSTN transflective technology, it maintains the advantages of STN technology while significantly improving contrast and readability by adding an optical compensation film in the polarizer, making it still clear and visible under strong light and multiple angles.

    Company profile

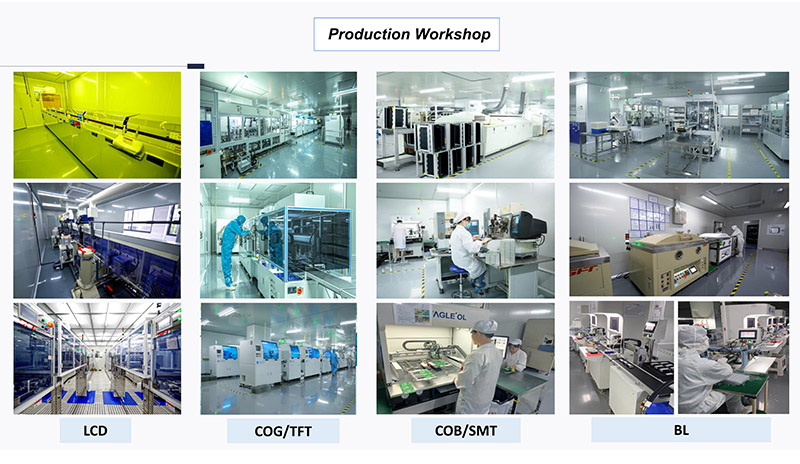

    Jingda Display is a professional global manufacturer specializing in LCD display, TFT display, and OLED display modules with over 10 years of dedicated LCD production and R&D experience. JDA focused on monochrome graphic LCD, character LCD, and customized display solutions, the factory integrates independent R&D, precision production, and strict quality testing. We serve industrial control, medical equipment, automotive electronics, and smart wearable industries, providing standardized and customized LCD display module products for global clients. All products comply with international industry standards, with stable supply capacity and reliable after-sales support.

    Depending on the application, Jingda can evaluate options such as:

    1. STN or FSTN technology

    2. Positive or negative display

    3. Transmissive, transflective or reflective polarizer

    4. Different viewing directions

    5. White, yellow-green or other LED backlight options

    6. SPI or parallel communication solutions where supported by the selected controller

    7. COG or COB construction

    8. Customized FPC and connector position

    9. Customized glass outline and viewing area

    10. Customized mounting holes and mechanical dimensions

    11. The final configuration should be selected according to the MCU, PCB layout, optical environment, enclosure and operating temperature of the customer's equipment.

    Real Factory Outgoing Test and Verification

    Every batch of 128x128 monochrome LCD modules undergoes rigorous industrial-grade testing before delivery to ensure zero defective products. The full test items are as follows:

    High and Low Temperature Test: Conduct -40℃ low-temperature startup test (2 hours freezing, normal display within 3 seconds after power-on) and 85℃ high-temperature continuous operation test for 48 hours, no display failure or color distortion.

    High Temperature & Humidity Aging Test: 85℃/85% RH continuous aging for 96 hours, product performance remains stable with brightness attenuation less than 20%.

    Vibration & Drop Test: Simulate transportation and on-site vibration environment, standard drop test, no loose internal structure or display abnormality.

    Long-term Lifespan Test: 50,000 hours continuous lighting test, stable dot matrix display without dead pixels or line faults.

    Display Consistency Inspection: Full inspection of pixel uniformity, backlight brightness, and interface compatibility to ensure consistent quality of each 128x128 LCD display.
