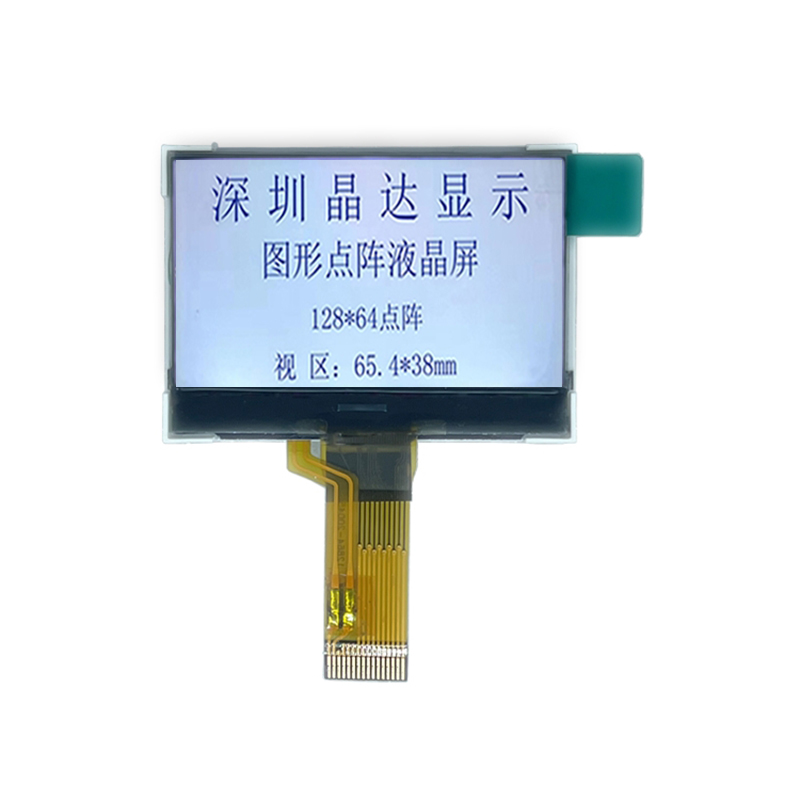

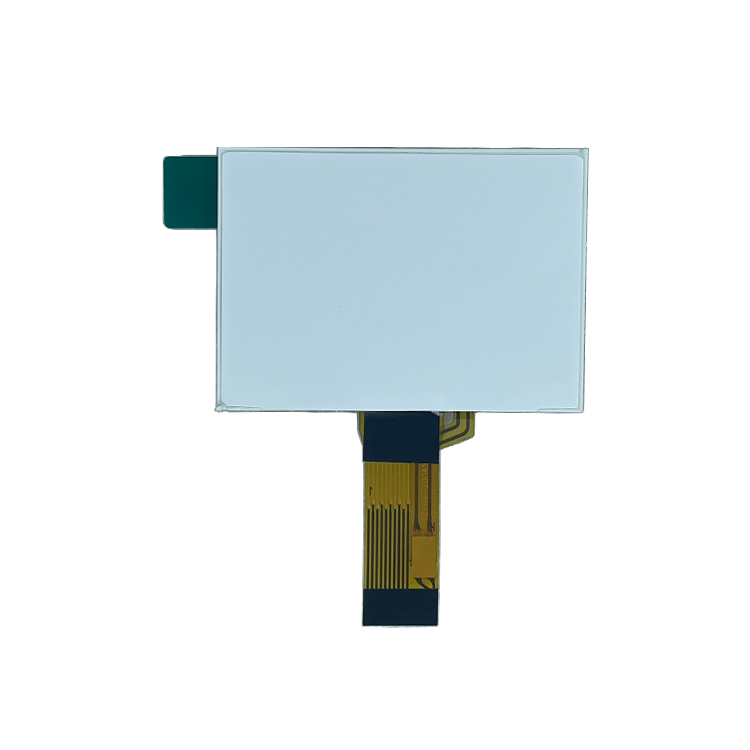

12864 Graphic LCD Display FSTN Positive Transflective ST7567 Screen

JDA as a professional monochrome lcd display supplier in China. For the 12864 graphic lcd display FSTN positive transflective ST7567 screen is a monochrome graphic display lcd solution with balanced performance and excellent cost-effectiveness. Jingda display has a significant advantage in this monochrome lcd display.
Product No: JD12864-20045A1
Technology: COB technology
Operating Temp: -25 to 80℃
View Angle: Wide viewing angle
Drive IC: ST7567

Send Inquiry

Product Description

Technical Parameters

Module Size	41.1(W)29.4(H)3.5(T)mm	Display View Area	37.0(W)*20.0(H)mm
Display Type	FSTN/POSITIVE	View Angle	6 O’clock
Polarizer Type	Transflective	Drive IC	ST7567
Connector	FPC+IC	Backlight Type	White/+3.0V
Operating Temp.	-25℃ to 85℃	Storage Temp.	-35℃ to 90℃

Product Introductions

The core advantage of 12864 graphic lcd display FSTN positive transflective ST7567 screen is in high contract, wide viewing angle and excellent strong light readability brought by FSTN technology, combined with low cost and power consumption, as well as mature graphic display capabilities and reliability over a wide temperature range. It mainly used in industrial control device, instrumentation and meters, medical device and portable device.

Applications

About JDA Company

With the development and innovation of LCD market, Jingda display not only provides monochrome LCD display, TFT display&OLED display, but also assist one of the client in developing a new product, stretched bar display and TFT display all in one device, hundreds of products for customers to choose product quality is stable and controllable, service customers!
