Positive 7 Segment LCD Display LCM Module

Specifications of Positive 7 Segment LCD Display LCM Module

Introductions of Monochrome 7 segment LCD Display Module

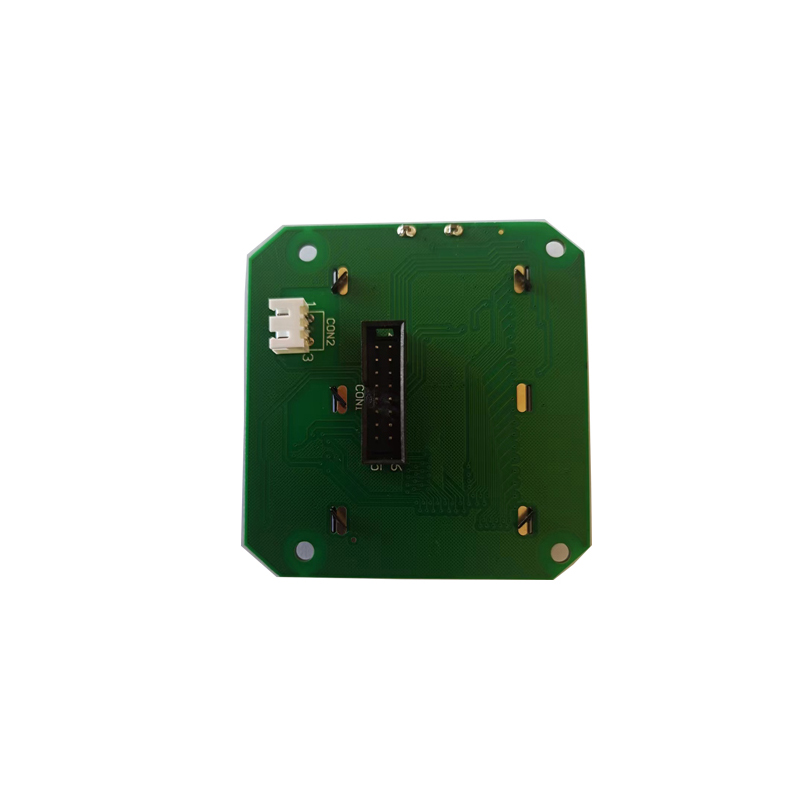

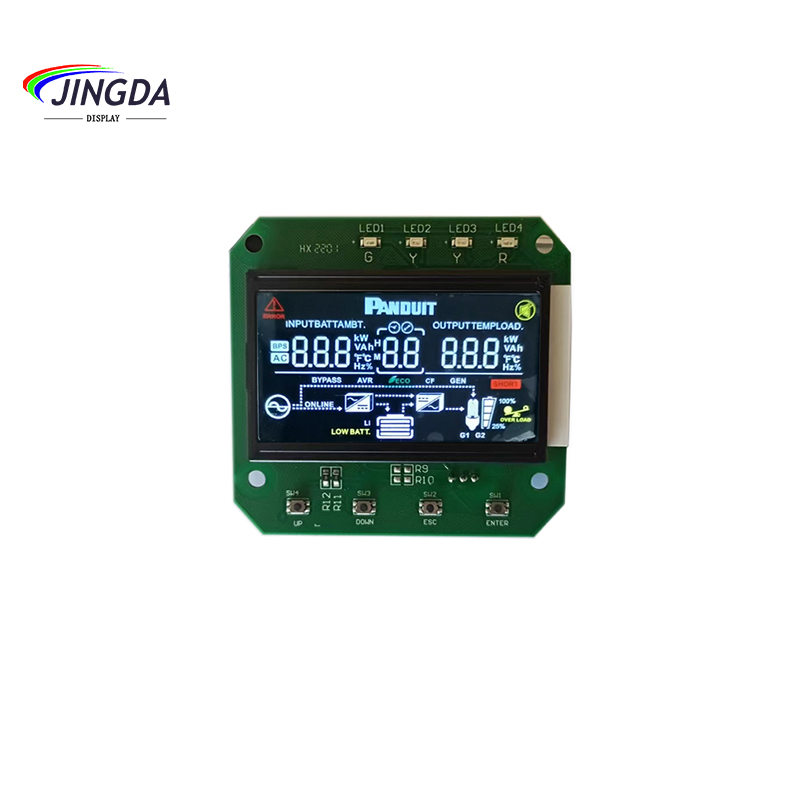

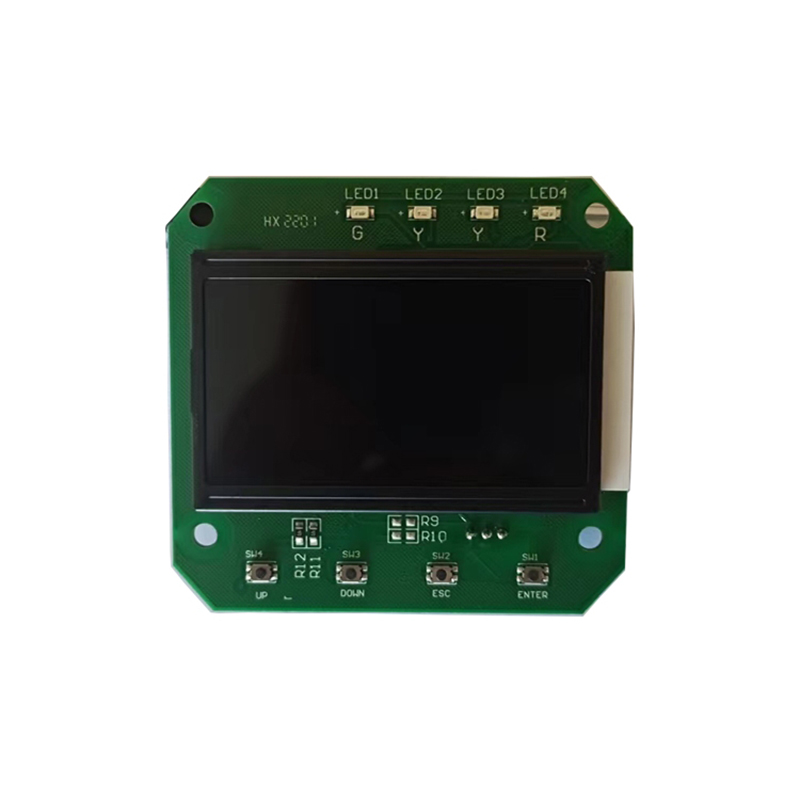

The positive 7 segment LCD display LCM module is a high-cost-performance industrial monochrome LCD screen customized for power industrial scenarios, with every detail optimized around industrial stable operation and rapid assembly and use. The drive IC is AIP31621E or compatible. The pararizer of JDA0801-2129A1 is transflective and the view angle is 12 o’clock.

In terms of display performance, the positive highlighting display mode is adopted, with high screen contrast, clear digital edge presentation, no ghosting or fuzzy coding delay during long-term static display and frequent data switching display. The professional anti-glare surface coating is added on the outer layer of the display screen, which can clearly read real-time voltage, current, power, load rate, fault code and core operating data of equipment under strong workshop light, cabinet internal backlight and complex ambient light conditions, without reflection interference affecting staff inspection and operation judgment. As a professional segment LCD display in Shenzhen, JINGDA DISPLAY supports standard industrial electrical level signal access, compatible with mainstream industrial control single-chip microcomputers, power management motherboards and inverter drive control modules on the market, no need to customize additional adapter circuits, plug and play in actual assembly, greatly shortening factory assembly line operation time and improving overall production efficiency.

Why Choose Jingda Display?

As a professional industrial segment LCD display R&D and manufacturing factory with years of deep cultivation in the industrial display supporting industry, Jingda display has always focused on the R&D, customization and batch supply of industrial-grade LCD LCM modules, focusing on solving the pain points of unstable display, short service life and difficult after-sales matching of display components for industrial power equipment customers.

Certifications That Matter

Jingda display’s monochrome segment LCD display that leaves a Jingda display facility carries the weight of internationally recognized quality certifications: ISO 9001, ISO 14001 certification to ensuring compliance with the strictest quality, environmental, automotive, and military grade standards. JDA production line embedded in every stage of production, from raw material sourcing to final electrical testing.

Manufacturing Excellence

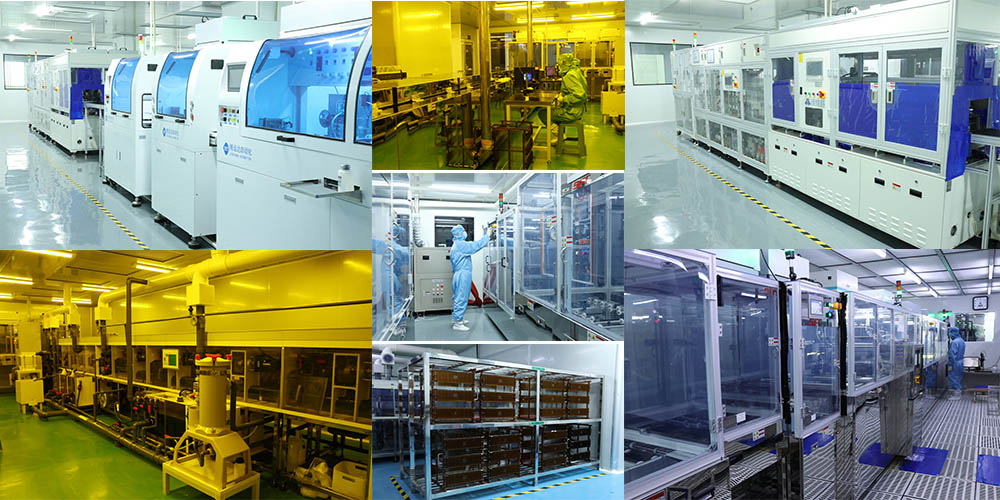

Jingda display company operates advanced production equipment including Yamaha SMT machines and 540 COB bonding lines, ensuring high precision and efficiency across every manufacturing step. With over 500+ employees, 45 R&D engineers, and 55 QC engineers on site, Jingda display maintains rigorous process control across 30+ production lines covering LCD, LCM, COG, COB, TFT, and SMT technologies.

Application Fields

Jingda display’s positive 7 segment LCD display LCM module is ideally suited for power monitoring and industrial equipment where clear numeric readouts are essential. Typical applications include:

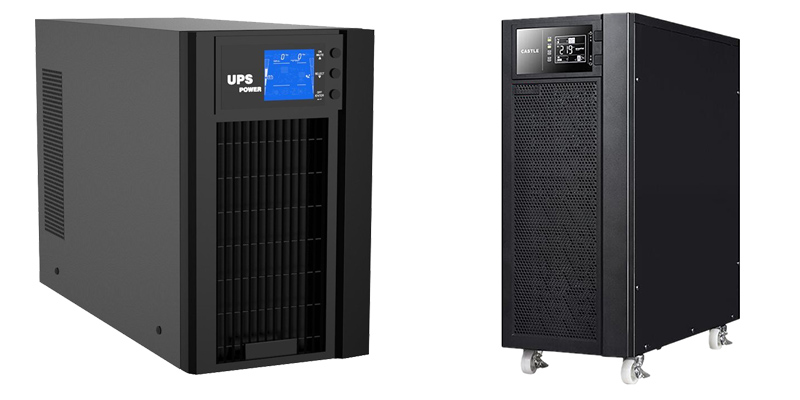

UPS Systems (Uninterruptible Power Supplies)

Monitor real-time input voltage, output voltage, battery charge status, load percentage, frequency(Hz), and system alerts - all at a glance. The module's wide-temperature performance ensures reliable operation even when UPS cabinets reach elevated internal temperatures during heavy loads or summer conditions.

Solar Inverters & Power Inverters

Segment LCD displays in solar inverters represent the perfect balance between cost, power consumption, reliability, and basic functionality.

FAQ

Q1: What types of LCD technologies does Jingda display offer for UPS applications?

Jingda display provides multiple monochrome LCD options tailored to different application needs. TN mode offers cost-effective fast response for basic numeric displays. HTN delivers superior contrast and better viewing angles--ideal for the JDA0801-16037C1 module. VA mode provides exceptional contrast with deep black backgrounds for premium readability STN and FSTN technologies are also available for applications requiring wider viewing angles and reduced color shift.

Q2: What is the typical lifespan of this segment LCD display?

When operated within specified parameters (temperature, voltage, humidity), the display matches the design life of industrial power equipment, typically 10+ years or more.

Q3: Can technical support be provided?

Our professional technical team provides free remote wiring guidance and on-demand scenario matching technical support all the year round, and responds to after-sales problems within 24 hours to ensure no delay in customer production and use.
