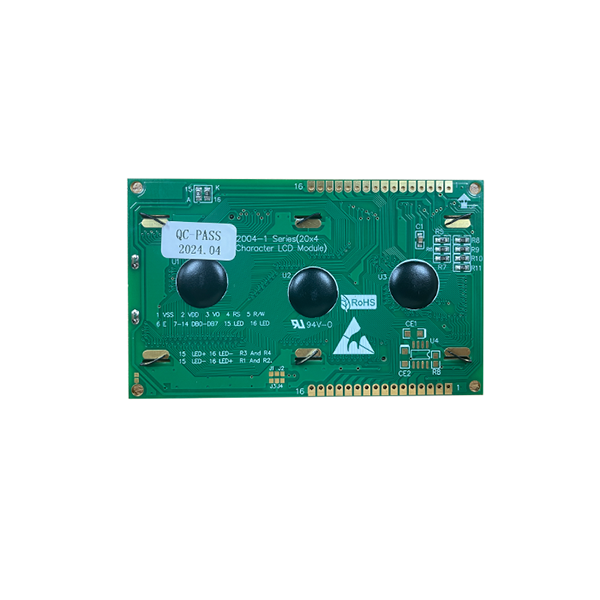

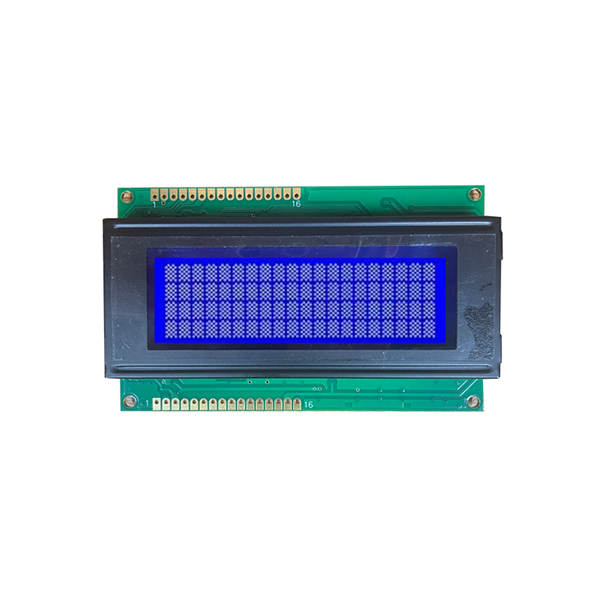

Character LCD Screen 20x4 Monochrome LCD Module

Introductions

Jingda Display’s 20x4 LCD display features standard industrial-grade parameters, compatible with mainstream embedded controllers, with stable performance in complex working environments. For the JDA2004-01 LCD module, it is widely adopted in digital panel meters and UPS systems, Portable medical devices, alarm panel and son on. There are STN monochrome LCD type positive/negative display optional and the LED backlight(yellow-green, blue and white customizable).

20x4 character Series LCD display STN positive negative LCD mode

Technical Parameters of Character LCD Screen 20x4 Monochrome LCD Module

Key Product Features of 20x4 LCD Display

Stable Display Performance

-Monochrome display delivers high contrast, clear character presentation, no ghosting or flicker during long-term operation

-6 o'clock viewing angle design, suitable for fixed installation equipment with consistent viewing effect

-Anti-interference circuit design, resistant to electromagnetic interference in industrial environments

Strong Compatibility

-Fully compatible with Arduino, Raspberry Pi, STM32 and mainstream single-chip microcomputers

-Supports multiple communication interfaces, adapting to different embedded project development needs

-Standard pin definition, plug-and-play, no complex driver development required

Low Power & Durability

-Low power consumption design, ideal for battery-powered portable devices

-Industrial-grade components, resistant to high and low temperature aging

-COB packaging process enhances module shock and drop resistance

Why Choose a 20x4 Display?

1. More information at a glance - Four lines show status, parameters, and menu options simultaneously

2. Cost-effective - Monochrome character LCDs offer the lowest cost per character of any display technology

3. Proven reliability - Decades of field-proven performance in industrial and commercial applications

Jingda Display Company Advantage

- Specialized LCD module production factory with 10+ years of industrial display manufacturing experience, focusing on character LCD display R&D and production

- Equipped with fully automatic SMT production lines, COB bonding equipment and dust-free workshops, annual output of 20x4 LCD DISPLAY exceeds 500,000 pieces

- Supports OEM/ODM customization, from circuit optimization to appearance customization, providing one-stop solution services

- Strict raw material screening, all core chips and liquid crystal materials are imported industrial-grade materials

Packaging&Delivery

1. Anti-static bags: Each module is individually sealed in ESD-safe packaging to prevent electrostatic damage during transit

2. International standard export packaging: Designed to withstand long-distance shipping and handling

3. Standard lead time: 25-40 days depending on order quantity and customization requirements

4. Flexible shipping options: DHL, FedEx, UPS, or sea freight

5. Real-time order tracking available

FAQ of Character LCD Display

What is the difference between 20x4 and 16x2 character LCD display modules?

The core difference lies in display capacity and application scenarios. The 16x2 LCD only supports 16 characters per line with 2 lines, while the 20X4 LCD DISPLAY supports 20 characters per line and 4 lines, with larger display area and more data display volume. It can show more parameter data, prompt information and working status at one time without page turning. In terms of performance, both adopt mature monochrome STN technology with consistent stability, but the 20x4 module is more suitable for industrial equipment requiring multi-data simultaneous display, while 16x2 is more for simple consumer electronic products.

Can the 20x4 LCD DISPLAY work stably in high and low temperature industrial environments?

Yes. Our industrial-grade 20x4 monochrome LCD module is specially optimized for harsh working environments, with a working temperature range of -20℃ to +70℃ and storage temperature of -30℃ to +80℃.
