Character LCD Module STN COB LCD Display

Parameters of Character LCD module STN COB LCD display

Introduction of character LCD displays

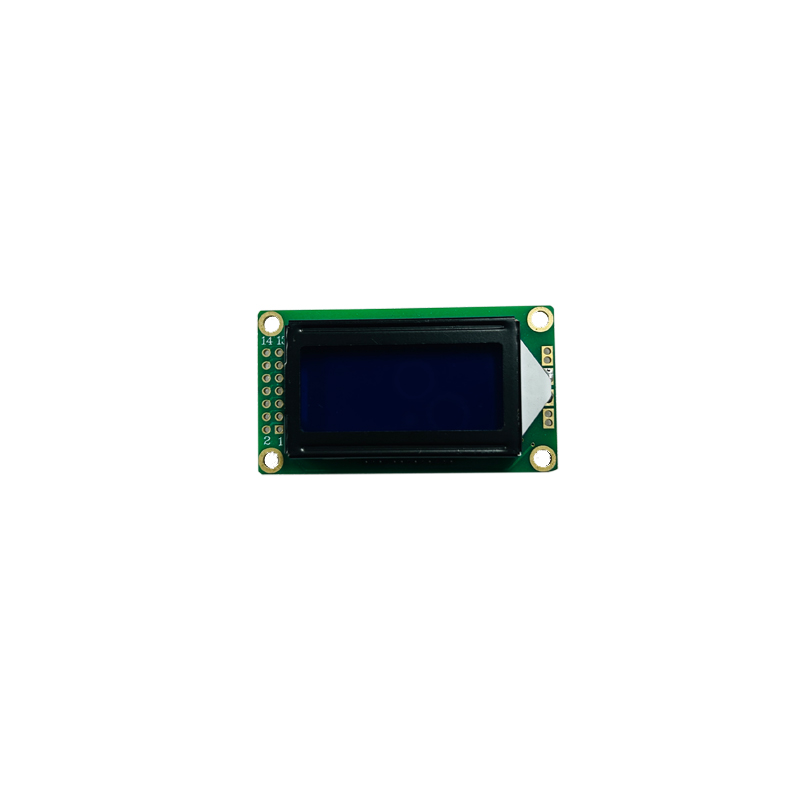

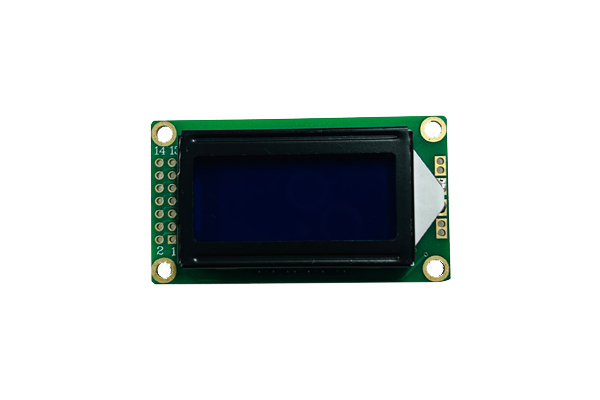

A Character LCD Module is a monochrome liquid crystal display designed to show letters, numbers, symbols, and predefined characters in a structured character-and-line format. JDA’s character LCD Display is mainly used to display character information, its design is simple, the function focused on character and symbol display, with high stability and cost-effective. Available in red, yellow-green, blue, green in a variety of colors, and support formats such as 16x2, 16x3, 20x4 etc. The size of this character display model is 58x32x13.5mm, which is smaller than the character screen of the 16x2 module and is a very exquisite character screen.

How to Select the Right Character LCD Module

1. Display format: Determine the number of characters and lines.

2. LCD mode: Select STN positive, negative or FSTN according to the visual requirements.

3. Viewing direction: Confirm the required viewing angle and installation orientation.

4. Lighting environment: Choose transmissive or transflective construction.

5. Backlight: Select the appropriate LED color and brightness.

6. Interface: Confirm 4-bit or 8-bit parallel communication.

7. Voltage: Verify the MCU and LCD electrical requirements.

8. Temperature: Match the module's operating range with the equipment environment.

9. Mechanical dimensions: Confirm outline, viewing area, mounting holes and thickness.

10. Customization requirements: Consider custom glass, PCB, FPC, IC and backlight specifications.

Why Choose JINGDA DISPLAY COMPANY?

Shenzhen Jingda Display Technology Co., Ltd is a professional manufacturer dedicated to the R&D, production and customization of LCD displays, TFT display, OLED displays. Rooted in the display industry for years, we have accumulated profound technical expertise and rich practical manufacturing experience, forming a complete and mature production and quality control system. Our experience with monochrome LCD technology allows us to focus on the details that influence display performance, reliability and production consistency. JINGDA DISPLAY boast outstanding core competitiveness in monochrome segment displays, dot matrix displays and character displays, which are our flagship product lines with stable performance, high cost-effectiveness and wide applicability.

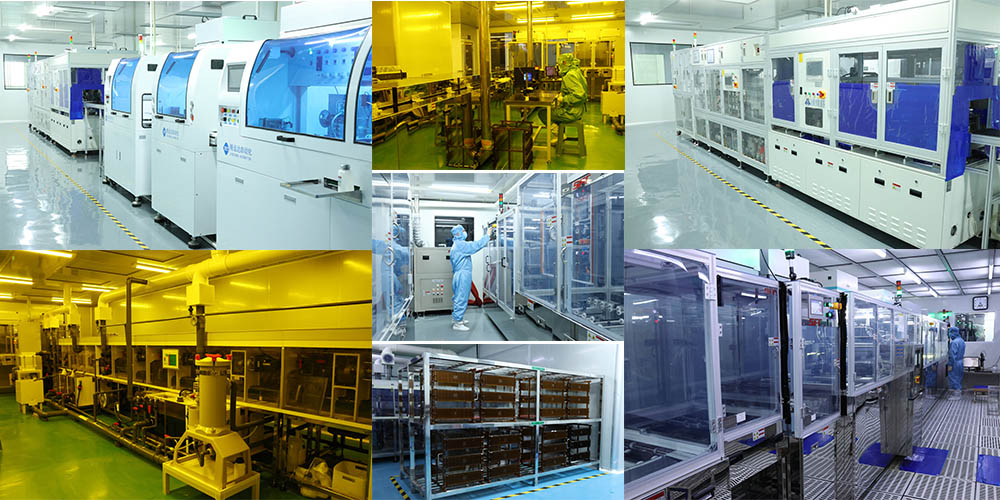

JINGDA DISPLAY has our own factory in Longyan, Fujian, covering an area of more than 10,000 square meters. There are 6000㎡ dust-free workshop, including Hundred-level clean workshop and Thousand-grade clean workshop.

FAQ

What is the difference between a character LCD display and a graphic LCD display?

A character LCD display is designed to show text and symbols using a built-in font table. Each character position is a pre-defined cell (typically 5×8 dots), and the display controller handles character rendering automatically--you simply send ASCII codes. A graphic LCD display, by contrast, controls every individual pixel on the screen. This allows for images and custom graphics but requires significantly more software development.

Is a character LCD display suitable for industrial equipment?

Yes. A character LCD display is particularly suitable for industrial equipment that needs reliable presentation of values, operating states, menus, alarms and error codes without requiring full-color graphics.

Can the backlight color be customized?

Yes. The character LCD modules can be supplied with different LED backlight colors, including white, yellow-green, blue and amber, depending on the LCD mode and product design.

Can Jingda customize a character LCD module?

Yes. Customized solutions can include LCD dimensions, character format, viewing area, polarizer, viewing direction, PCB, connector, controller IC, backlight and electrical interface according to project requirements.
