7 inch TFT Display LVDS Industrial Control All-in-One Device
  • 7 inch TFT Display LVDS Industrial Control All-in-One Device7 inch TFT Display LVDS Industrial Control All-in-One Device
  • 7 inch TFT Display LVDS Industrial Control All-in-One Device7 inch TFT Display LVDS Industrial Control All-in-One Device
  • 7 inch TFT Display LVDS Industrial Control All-in-One Device7 inch TFT Display LVDS Industrial Control All-in-One Device

7 inch TFT Display LVDS Industrial Control All-in-One Device

Featuring a 7 inch TFT display LVDS industrial control all-in-one device with a responsive touchscreen, this all-in-one unit combines a display, processor, input/output interfaces, and optional connectivity modules into a single, durable enclosure with cables come out from the frame.
Interface: LVDS
Resolution: 1024*3RGB*600
Luminance: 500cd/㎡
Viewing Angle: IPS
Operating System: Android7.1/Android5.1
Operating Temp: -10 to 60℃

Send Inquiry

Product Description

Product Parameters

Display Size
7 inch
Display Interface
LVDS
Resolution
1024*3RGB*600
Brightness
500cd/㎡
Viewing Angle
IPS
Touch Type
CTP
Operating System
Android7.1/Android5.1
Operating Temp.
-10 to 60℃
Storage Temp.
-20 to 70℃

Product Introductions

The 7 inch TFT display LVDS industrial control all-in-one device is a compact, high-performance integrated solution designed for industrial automation, intelligent equipment, and human-machine interface (HMI) applications. Featuring a 7-inch TFT LCD with a projected touchscreen, this all-in-one unit combines a display, processor, input/output interfaces, and optional connectivity modules into a single, durable enclosure. The E070A Android screen all-in-one machine is an industrial intelligent interactive terminal product based on Cortex-A17 architecture launched by the company to meet the growing demand for intelligent interaction in the Internet of Things. It has a clock speed of up to 1.8GHz and high performance and low power consumption.


Application


At present, the application fields of industrial control device have become very extensive. Including industrial automation, or industries such as medical care and transportation, industrial control device have been widely used.

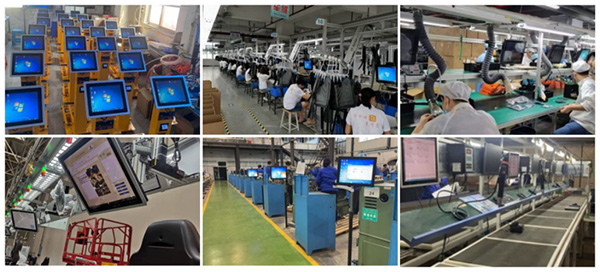

Physical Picture
