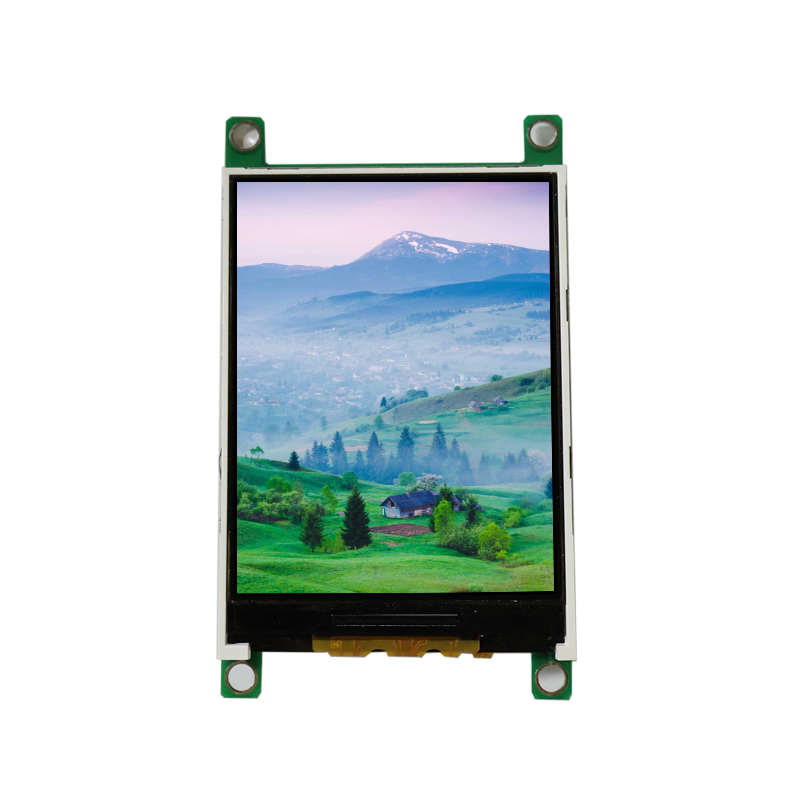

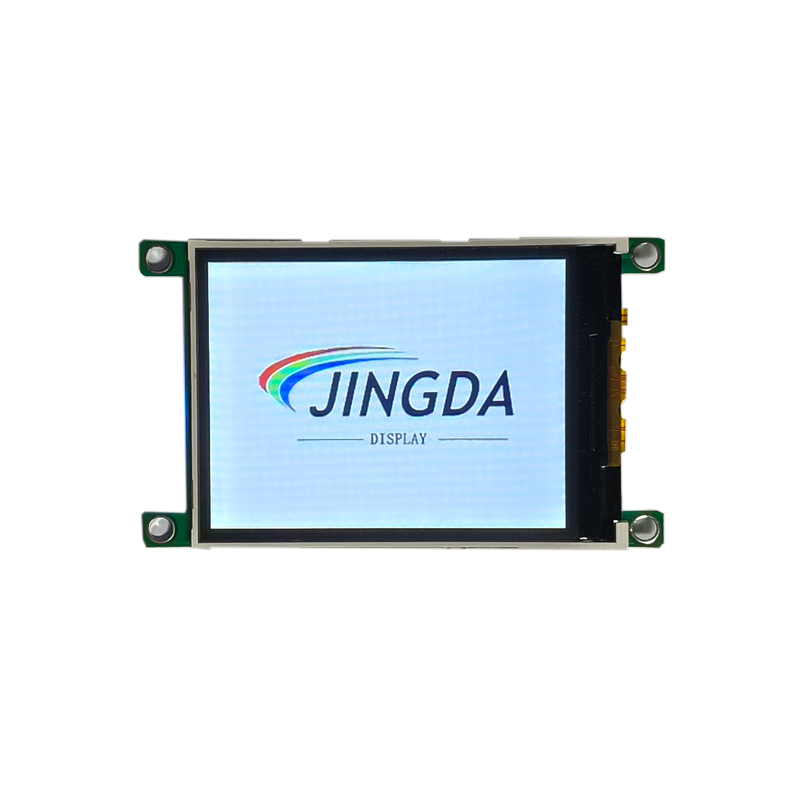

2.4 inch Integrated Serial Port TFT Display With 240x320 Resolution
Jingda Display company focused on manufacturer of TFT display in China. The 2.4 inch integrated serial port TFT display with 240x320 resolution screen is a serial screen module with a dot matrix resolution of 240x320. It has built-in simplified Chinese font library and English ASCII character set, and open internal dot matrix DDRAM, which can display pictures and graphics at any position on the screen.
LCD Type: Transmission
Brightness: 350cd/㎡
View Angle: Wide viewing angle
Working Temp.: Wide operating temperature
Send Inquiry
Product Description
Technical Parameters
|
Dimensions |
42.72mm*72.51*7.1mm |
Display Area |
36.72*48.96mm |
|
Resolution |
240*320 |
Pixel Spacing |
0.153*0.153mm |
|
Display Color |
65K |
Pixel Layout |
RGB vertical strip |
|
Viewing Angle |
12 O’clock |
Contrast |
250:1/Transmission |
|
Operating Temp. |
-20 to 60℃ |
Storage Temp. |
-30 to 70℃ |
Product Introductions
JDA’s 2.4 inch Integrated serial port TFT display with 240x320 resolution provides UART interface mode with simple wiring. In terms of software driver, users can design a beautiful and gorgeous user interface with only a few simple instructions. The viewing angle of 2.4 inch TFT display is 12 O’clock. Besides, there are typical application example as below:
- Character and picture overlay function
- Horizontal and vertical screen switching function
- Backlight brightness adjustment function
Applications
About Jingda Display Company
Shenzhen Jingda display technology Co., Ltd.(JDA in brief) is a manufacturer of monochrome lcd displays, TFT displays and OLED displays for 10+ year, and our product exported more than 200+ regions. JDA display is committed to providing customers with high-performance and highly reliable professional display solutions. Our products are widely used in various fields such as commercial display, security monitoring, command and dispatch, industrial control, digital signage, etc., meeting the strict requirements of different industries for visual presentation.
Choose JDA, which is professional and reliable visual presentation!
