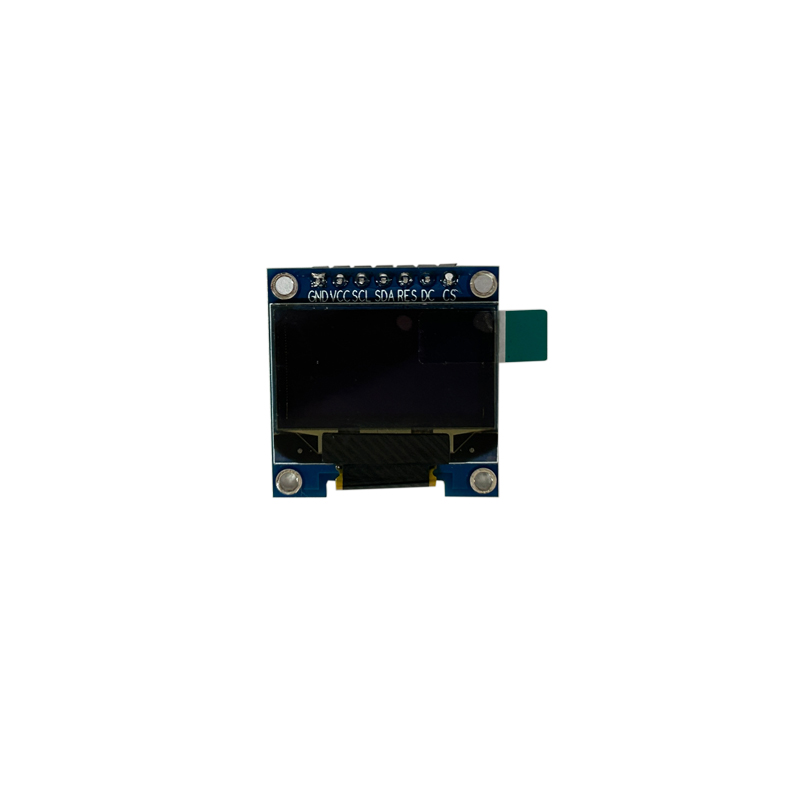

0.96 inch PM OLED Display Module SSD1306

Jingda display manufacture small-mid size display modules, including monochrome LCD and LCM, 0.96-25 inch TFT & OLED LCM, HMI solutions, and JDA has over ten years of experience in display module field. For the OLED display, there are many types for your options. Jingda display’s 0.96 inch PM OLED display module SSD1306 is a high-performance small-size display module integrated with the industry-proven SSD1306 driver IC, designed to meet the diverse needs of embedded systems, wearable devices, industrial control, and consumer electronics.
Product No: JDA096S0700WG01
Drive IC: SSD1306
Display Mode: Passive Matrix
Viewing Direction: All

Send Inquiry

Product Description

Product Parameters of 0.96 inch PM OLED display module SSD1306

Display Type	0.96’’OLED	Resolution	128x64
Polarizer Mode	Transmissive	Drive IC	SSD1306

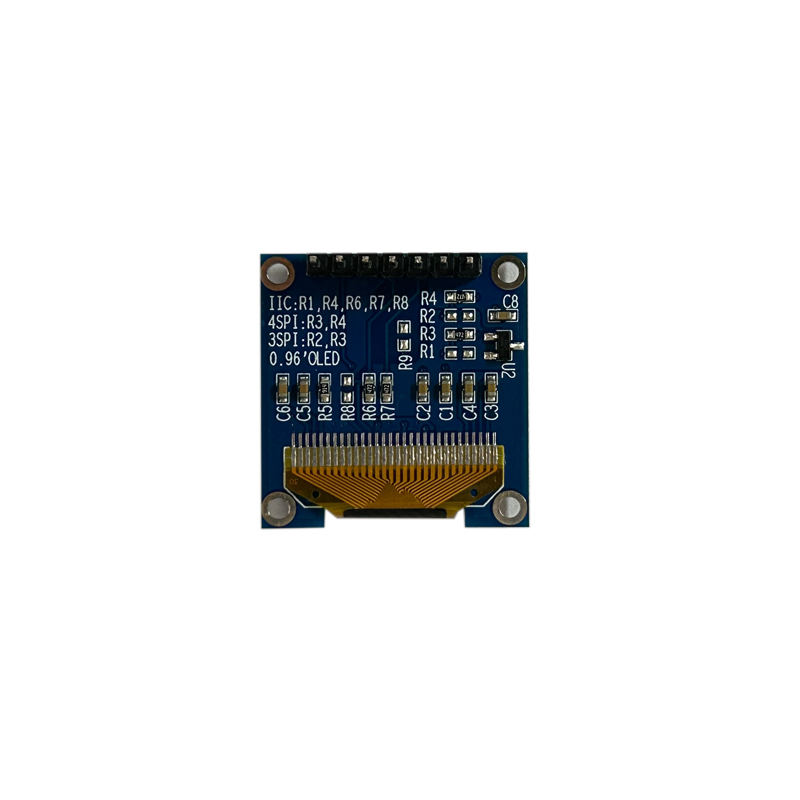

PCB Size	27.3x27.8x2.65mm	Active Area	21.744x10.864mm
Pixel Pitch	0.17x0.17mm	Pixel Size	0.154x0.154mm
Interface	SPI/I2C	Operating Temp.	-40℃ to 70℃

Product Overview

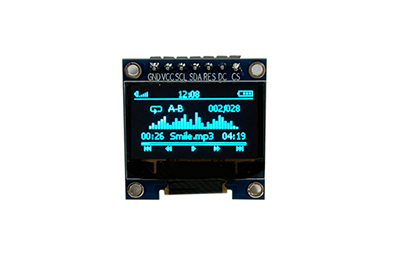

The 0.96’’ OLED display screen SSD1306 is a monochrome display module based on passive matrix organic light-emitting diode technology, with a resolution of 128 x 64 pixels and an effective display area size of 21.744x10.864mm. The 0.96 OLED module is a compact and highly reliable display module that combines a passive matrix OLED (PM OLED) panel with the SSD1306 driver controller. With a standard 128×64 pixel resolution, it delivers clear, sharp images featuring excellent contrast and a wide viewing angle, making it ideal for applications with limited space and stringent display quality requirements. As a professional 0.96-inch PM OLED module supplier, it supports multiple communication interfaces, low power consumption, and a wide operating temperature range, enabling it to adapt to various harsh working environments.

Jingda display Company advantages

Factory-level technical support: Jingda display provides complete underlying driver code based on SSD1306, assisting customers in completing the entire process from prototype verification to mass production.

Strict quality control system: All 0.96inch OLED modules undergo 72-hour aging test, pixel defect detection and electrostatic protection test before leaving the factory.

Stable supply guarantee: Jingda display as a professional supplier with deep experience in the field of small-sized display, there are regular inventory of spare parts, and support rapid delivery of samples and batch customization (including lead wire length, interface definition, soldering process, etc.).

Contact Information

As a professional display module supplier, LCD is committed to providing high-quality 0.96 inch PMOLED Display Module SSD1306 and reliable after-sales service. We accept bulk orders and sample orders, with flexible MOQ to meet your different purchasing needs. For pricing, delivery time, and order details, please contact our sales team:

Email: vincent@jdadisplay.com

Tel:+86 17302679953

We will reply to you within 24 hours and provide the best solution for your display needs.
