What Is the Working Principle of a Touch Screen?

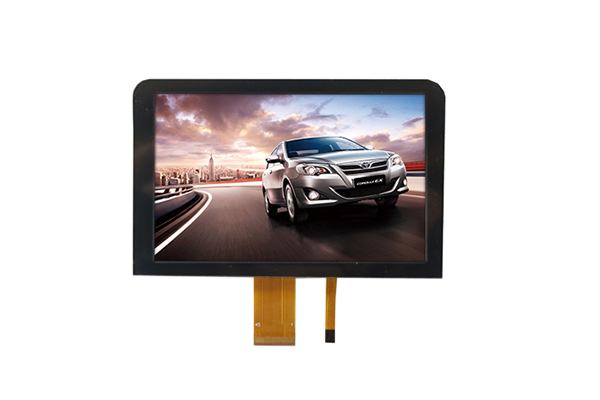

In modern industrial control, consumer electronics, automotive display, and smart home equipment, touch display has become the core human-computer interaction carrier. Unlike traditional non-interactive display screens, touch devices integrate sensing modules and display modules organically, enabling real-time signal induction and coordinate recognition while presenting high-definition images. Most smart terminal devices on the market currently adopt integrated solutions of TFT LCD display and touch sensing technology, among which TFT display occupies a dominant position in the commercial and industrial display fields due to its excellent color reproduction, high resolution and stable operating performance.

The essence of all touch screen working principles is to capture the physical or electrical signal changes generated by external contact, convert analog signals into digital coordinate information through a dedicated touch controller, and finally transmit the data to the main control chip to realize human-computer interaction. A complete touch display system is composed of three core parts: touch sensing layer, signal processing circuit, and TFT display imaging module. The touch sensing layer is responsible for perceiving contact signals, the circuit system completes signal filtering, amplification and coordinate calculation, and the TFT LCD display is responsible for synchronous display of interactive feedback images.

Resistive Touch Screen Working Principle

The resistive touch screen is a pressure-sensitive sensing device, which iscomposed of two layers of transparent conductive ITO (Indium Tin Oxide)films, with insulating micro-spacers separating the upper flexible membrane and the lower rigid base layer. The upper layer is a flexible conductive film,and the lower layer is fixed on the surface of the TFT display to ensure the stability of the display structure.

Capacitive Touch Screen Working Principle

Capacitive touch screens are the mainstream technology of consumer electronic touch display products, which work based on the principle of human body capacitance induction. The screen surface is covered with a dense ITO conductive grid layer, and a uniform low-voltage electrostatic field is formed on the entire screen through the driving circuit.

The human body is a conductive medium with capacitance characteristics.When a finger touches the screen surface, it will absorb a tiny current at the contact point, causing local changes in the electrostatic field. The high-sensitivity sensors distributed around the screen capture the capacitance difference, and the touch controller calculates the precise touch coordinates through algorithm analysis. Different from resistive touch screens, capacitive touch screens support multi-touch recognition, realizing multi-point operations such as zooming, rotating and multi-finger sliding.
