How Does an LCD Display Work?

In modern consumer electronics industries, LCD display technology remains one of the most mature, cost-effective, and widely applied flat-panel display solutions after decades of iterative upgrading. From industrial control equipment, automotive instrumentation, and household appliances to commercial terminals and portable electronic devices, LCD products cover low-power industrial scenarios and high-definition commercial display fields.

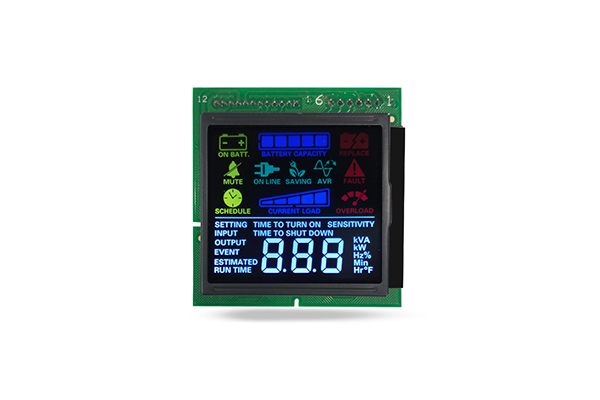

LCD is a passive light-modulating display technology based on liquid crystal photoelectric effect. The most essential feature of LCD display is that liquid crystal materials themselves cannot emit visible light. All screen images, text, and color changes are realized by adjusting the transmittance of external backlight through the ordered arrangement changes of liquid crystal molecules under electric field action. This passive light control mode determines the low power consumption, high stability, and long service life of LCD displays, and also forms the fundamental difference between LCD and self-luminous display technologies.

Core Component Structure of Standard LCD Display System

The complete working system of LCD display is composed of multiple layers of optical structural parts and electronic driving components. From bottom to top, it mainly includes backlight unit, lower polarizer, glass substrate with ITO electrode, liquid crystal layer, color filter layer (color LCD only), upper polarizer, and protective cover plate.

Backlight Unit

As a passive display device, LCD display completely depends on the backlight unit to provide stable and uniform visible light source. The backlight unit is located at the bottom of the entire display structure, mainly including light source, light guide plate, diffuser plate, reflective film, and brightness enhancement film. Early LCD products used CCFL cold cathode fluorescent lamps as light sources, while modern mainstream LCD products adopt LED backlight solutions, which have the advantages of lower power consumption, smaller volume, longer service life, and higher luminous uniformity.

Polarizer Assembly

Polarizers are key optical components that control light transmission and are divided into lower polarizer and upper polarizer, which are respectively attached to the outer surfaces of the lower and upper glass substrates. Natural light is unpolarized light with vibration in multiple directions. The lower polarizer can filter out all irregular vibration light and only retain linearly polarized light in a single direction, providing standardized incident light for the liquid crystal layer.

The optical axes of the upper and lower polarizers are set in a crossed vertical state in the default state, which is the core optical structure for realizing light switch control.

Liquid Crystal Cell Layer

The liquid crystal cell layer is the core functional layer of LCD display, which is formed by sealing liquid crystal materials between two layers of ultra-thin transparent glass substrates. The inner sides of the two glass substrates are plated with transparent ITO conductive electrodes and alignment films. The alignment films can limit the initial arrangement direction of liquid crystal molecules, making the liquid crystal molecules present a regular twisted arrangement in the voltage-free state. The common TN (Twisted Nematic) liquid crystal structure adopted by mainstream LCD products can form a 90-degree twisted structure of liquid crystal molecules between the upper and lower substrates, which is the classic optical switching structure of traditional LCD displays.

Driving and Control Components

The accurate arrangement adjustment of liquid crystal molecules cannot be separated from the precise drive of professional circuits, which is also the core electronic part of the LCM module. The driving system includes driving IC, timing control circuit, row and column scanning circuit, and signal processing circuit. Each pixel unit of the LCD panel corresponds to an independent control circuit. Through row and column scanning, the system inputs different voltage signals to each pixel in real time, realizing independent brightness control of each pixel.

Complete Working Mechanism of LCD Display

The working process of LCD display is a continuous cycle of light generation, polarization, electric field modulation, light transmission screening, and image restoration. The whole process is completely based on physical photoelectric changes, with no chemical reaction, so the display process has high stability and repeatability. The following is a step-by-step in-depth analysis of the working principle of LCD display in combination with optical and electrical characteristics.

Light Source Output and Polarization Processing

First, the LED light source of the backlight unit emits uniform scattered visible light. After being homogenized and reflected by the light guide plate and diffuser plate, stable surface light source is formed and acts on the lower polarizer. The lower polarizer filters the unpolarized natural light and converts it into unidirectional linearly polarized light. At this time, the light has a single vibration direction, laying a foundation for the subsequent liquid crystal modulation.

Voltage-Free State: Light Transmission and Bright Pixel Formation

When no driving voltage is applied to the ITO electrode of a certain pixel unit, the liquid crystal molecules in the liquid crystal cell maintain the initial 90-degree twisted arrangement under the restriction of the alignment film. When the linearly polarized light passes through the twisted liquid crystal layer, the polarization direction of the light will be rotated 90 degrees synchronously with the molecular arrangement. After rotation, the polarization direction of the light is completely consistent with the optical axis of the upper polarizer, so the light can smoothly penetrate the upper polarizer and the protective cover plate, and finally present a bright state on the screen.

Voltage-Applied State: Light Blocking and Dark Pixel Formation

When the system inputs a specific driving voltage to the pixel electrode, an electric field is formed between the upper and lower glass substrates. Driven by the electric field force, the twisted liquid crystal molecules will gradually deflect and arrange vertically along the electric field direction. At this time, the twisted structure of the liquid crystal layer disappears, and the liquid crystal molecules lose the ability to rotate the polarization direction of light. The linearly polarized light passing through the liquid crystal layer keeps the original vibration direction, which is completely perpendicular to the optical axis of the upper polarizer. The light is completely blocked and cannot penetrate, and the pixel presents a pure black state.
