What Factors Influence the Power Consumption of Monochrome LCD Displays?

Monochrome LCD screens have long been the backbone of low-power electronic devices across industrial, commercial, and consumer sectors. For the TFT color LCD panels that require complex color filtering and high-power back-lighting systems, monochrome liquid crystal displays deliver simple, high-contrast visual output with minimal energy overhead. Their exceptional power efficiency makes them the preferred choice for battery-operated devices, including industrial meters, wearable gadgets, smart home sensors, medical portable equipment and so on.

Monochrome LCD displays remain one of the most energy-efficient display technologies available today. In an era where battery life and power budgets dominate product design decisions, understanding exactly what drives the power consumption of these displays is not merely an academic exercise--it is a critical engineering consideration that can make or break a portable device.

1. LCD Panel Structural Design Specifications

The inherent structural design of a monochrome LCD panel is the foundational determinant of its baseline power consumption. Every core component of the panel, from physical dimensions to display mode and matrix type, directly shapes its energy usage characteristics. Even with identical driving circuits and operating environments, structurally different monochrome LCD modules can exhibit power consumption gaps of several times.

1.1 Screen Size and Pixel Density

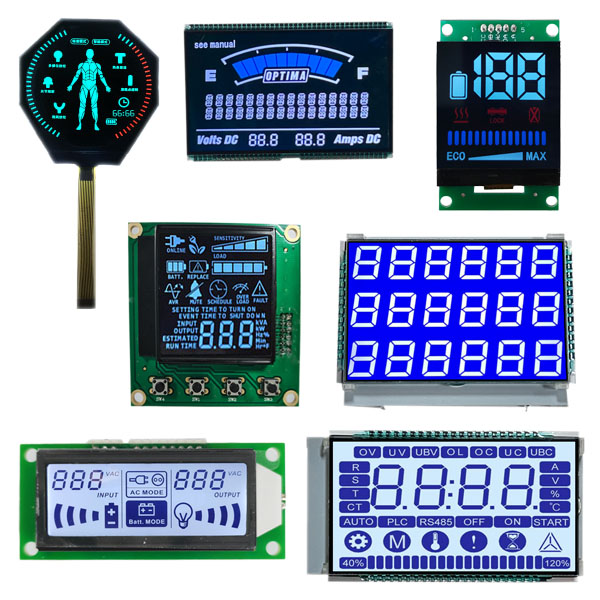

Screen size is one of the most intuitive factors affecting monochrome LCD power draw. In standard monochrome LCD products, power consumption is positively correlated with the effective display area. Larger panels require more liquid crystal pixels, more transparent electrode wiring, and wider signal coverage areas, all of which increase basic capacitive load and static power loss. For segment-type monochrome LCD display widely used in timers and meters, small-sized panels under 2 inches typically consume only 1–5mW of active power, while medium-sized 3–5 inch graphic monochrome LCD display usually draw 10–30mW under normal working conditions.

Pixel density also plays a vital role in power regulation. High-resolution monochrome LCD display such as 128×64, 240×128, and 320×160 models feature denser pixel arrays and more intricate driving circuits. Each pixel unit requires independent signal scanning and voltage control, raising the overall circuit load and dynamic power consumption. In contrast, low-resolution segment LCDs with fixed display patterns have simpler circuit structures and far lower power loss, making them ideal for ultra-low-power standby scenarios.

1.2 Display Optical Mode

Monochrome LCD screen are categorized into three core optical modes: reflective, transmissive, and transflective, each with drastically different power consumption profiles. This classification is the primary reason for the huge power gap between different monochrome display modules.

1.3 Matrix Driving Type

Monochrome LCD displays are divided into passive matrix (PM) and active matrix (AM) types, with passive matrix being the mainstream for low-power monochrome products. Passive matrix LCD display feature a simple cross-grid electrode structure, sharing row and column electrodes for pixel scanning. They only consume power during pixel state switching and maintain display content with minimal static power, which is the core reason for their low-power advantages.

2. Backlight System Configuration

For most transmissive and transflective monochrome LCD display modules, the backlight system accounts for 70%–90% of the total power consumption. Unlike color LCD displays with high-power RGB backlights, monochrome LCDs mainly use monochromatic LED backlights, but differences in backlight quantity, brightness, color temperature, and driving mode directly determine the module’s overall energy consumption. Optimizing backlight configuration is the most effective way to reduce monochrome LCD power loss.

2.1 Backlight LED Quantity and Layout

The number of built-in backlight LEDs is linearly related to power consumption. Small-sized monochrome LCD screen usually adopt 1–2 LED backlight designs with low working current and low power. Large-size or high-uniformity display modules require 4–6 or even more LED beads to eliminate dark corners and ensure full-screen uniform brightness. Each additional LED bead increases the overall operating current of the backlight system, directly raising total power consumption.

Backlight layout also affects power efficiency. Side-mounted backlight designs commonly used in thin monochrome LCD display module conduct light through light guide plates, with low light loss and relatively low power consumption. Bottom direct-lit backlight layouts have higher light utilization efficiency but require more LED beads, resulting in higher power draw under the same brightness standard.

2.2 Backlight Brightness Adjustment

Backlight brightness is the most flexible adjustable factor for monochrome LCD power consumption. LED backlight brightness is controlled by driving current—higher current corresponds to higher brightness and higher power consumption. Most monochrome LCD modules support PWM (Pulse Width Modulation) dimming or analog voltage dimming. Under maximum brightness, the backlight works at rated current with peak power consumption; under low-brightness standby mode, the driving current drops sharply, reducing backlight power loss by 60%–80%.

Most industrial and consumer electronic devices do not need maximum screen brightness in daily operation. Appropriately reducing backlight brightness on the premise of ensuring readability can greatly extend device battery life. For ultra-low-power standby scenarios, configuring automatic backlight shutdown logic when the screen is static can further eliminate invalid power loss.

2.3 Backlight Working Mode

Constantly on backlight mode leads to continuous high power consumption, while intermittent and trigger-based backlight modes effectively save energy. Many smart devices adopt human body induction, key trigger, or light sensor linkage backlight strategies: the backlight remains off during standby and only lights up when user operation is detected, drastically reducing long-term static power loss. For battery-powered portable devices, this working mode optimization has a more significant power-saving effect than hardware parameter adjustment.

3. Driving Circuit and Chip Parameters

The driving chip and peripheral circuit system are the core control units of monochrome LCD operation. Different chip models, driving voltages, refresh frequencies, and circuit design schemes directly affect dynamic and static power consumption during display operation. Even with the same LCD panel, mismatched driving parameters will cause obvious power waste.

3.1 Driving Chip Model and Power Efficiency

Specialized monochrome LCD driver chips have distinct power consumption characteristics. Low-power dedicated display chips adopt optimized circuit architecture, supporting low-voltage driving and sleep mode, with ultra-low standby current of only a few microamps. In contrast, universal MCU alternative driving schemes lack targeted power optimization, with higher static power loss and dynamic scanning power consumption.

3.2 Operating Voltage and Bias Voltage

Monochrome LCDs have strict operating voltage ranges. Within the rated voltage interval, appropriately reducing the driving voltage can lower pixel excitation power loss without affecting display clarity. Excessively high driving voltage will not only increase power consumption but also cause liquid crystal molecular fatigue, accelerating screen aging and leading to display flickering.

Bias voltage is another key parameter affecting power stability. Reasonable bias voltage configuration ensures stable liquid crystal molecular rotation with minimal current drive. Unreasonable bias voltage settings will cause repeated molecular vibration and invalid current loss, increasing unnecessary power consumption while reducing display contrast.

3.3 Screen Refresh Rate

Refresh rate determines the pixel scanning frequency of monochrome LCDs. Higher refresh rates mean more frequent circuit scanning and signal switching, leading to higher dynamic power consumption. Unlike color screens that require high refresh rates to eliminate strobing and smear, monochrome LCD display screen feature simple display content and low visual sensitivity to strobing.

3.4 Multiplexing Driving Mode

Monochrome LCD display commonly use multiplexing driving technology to simplify circuit wiring. Different multiplexing ratios (1/4 duty, 1/8 duty, 1/16 duty) affect power consumption and display quality. A higher multiplexing ratio means more pixels share scanning circuits, reducing peripheral circuit quantity and static power loss. However, an excessively high multiplexing ratio will increase single-point scanning load, raising dynamic instantaneous power consumption. Reasonable matching of multiplexing parameters according to screen resolution is key to balancing power consumption and display stability.

4. Display Content and Working State

Many practitioners ignore that monochrome LCD power consumption varies with real-time display content and working state. The number of lit pixels, screen update frequency, and standby state all produce different power loss effects, which are crucial details for fine-grained power optimization.

4.1 Pixel Lighting Ratio

Monochrome LCDs consume power when driving liquid crystal pixels to flip and display content. The more pixels are lit on the screen, the higher the overall circuit load and dynamic power consumption. A full-screen solid display state has the highest power draw, while a blank screen or low-pixel display state has the lowest power consumption.

4.2 Screen Update Frequency

Each screen refresh and content update requires signal scanning and pixel state switching, accompanied by instantaneous power loss. For devices with static display content such as instrument parameter screens and timing displays, frequent unnecessary updates will continuously generate invalid power consumption. Setting reasonable update cycles according to data change frequency—for example, updating every 1–5 seconds for slowly changing parameters instead of real-time refresh—can effectively reduce average power consumption.

4.3 Working and Standby Mode Switching

Monochrome LCD modules have obvious power differences between working mode, light-on standby mode, and deep sleep mode. In normal working mode, the screen refreshes continuously with maximum power consumption; in standby mode, the screen keeps static content with the backlight off, retaining only chip static power loss; in deep sleep mode, the driver chip stops most circuit operations, with power consumption dropping to the lowest microampere level.

5. Environmental Operating Conditions

The operating environment changes the physical characteristics of liquid crystal materials and circuit components, indirectly affecting monochrome LCD power consumption. Temperature, humidity, and ambient light intensity all regulate the working state and power loss of display modules, which cannot be ignored in industrial and outdoor device design.

5.1 Operating Temperature

Temperature is the most influential environmental factor for monochrome LCD power consumption. Liquid crystal material viscosity changes with temperature: low temperatures increase liquid crystal viscosity, slowing molecular rotation and requiring higher driving voltage and longer scanning time to ensure normal display, which raises power consumption. High temperatures reduce liquid crystal viscosity, lowering driving voltage requirements and relatively reducing power loss, but excessively high temperatures will accelerate component aging and cause circuit leakage current to rise.

Industrial-grade monochrome LCDs usually adapt to -20℃ to +70℃ wide temperature ranges. In low-temperature outdoor environments, many modules need to activate temperature compensation circuits to maintain display stability, which brings additional power consumption. For devices working in extreme temperature scenarios, low-temperature power consumption margin must be reserved in power design.

Conclusion

The power consumption of monochrome LCD screens is a systematic result of the interaction between structural design, backlight configuration, driving parameters, working state, environmental conditions, and hardware aging. Unlike the fixed power parameter cognition in traditional perception, monochrome LCD power draw has strong adjust ability and scenario dependence. For electronic product designers and maintenance engineers, clarifying all influencing factors is not only conducive to selecting matching display modules and reducing hardware costs but also can maximize battery life and device stability through refined power optimization.

In low-power IoT devices, industrial control equipment, and portable medical electronics scenarios, reasonable control of monochrome LCD power consumption can greatly improve product market competitiveness and user experience. With the continuous upgrading of low-power display technology, optimized monochrome LCD driving schemes and hardware designs will further release energy-saving potential, making such displays more widely used in ultra-low-power embedded devices.
