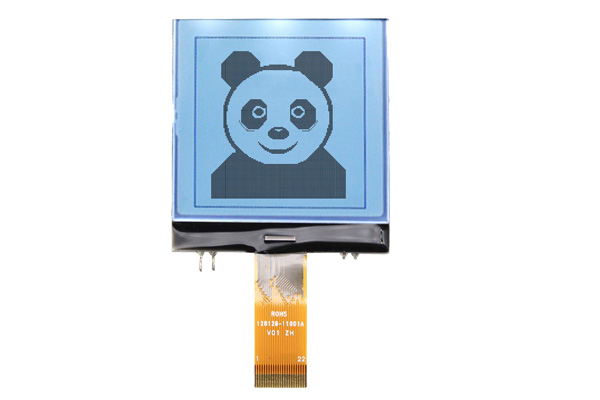

The 128x128 graphic LCD display for Paragliding Aircraft Applications

In modern aerial sports and lightweight aviation equipment, high-reliability display modules are core components to ensure flight safety, data real-time monitoring, and intelligent operation. Paragliding aircraft, as a mainstream lightweight outdoor flying device, puts forward extremely strict requirements for display equipment in terms of volume, power consumption, environmental adaptability, and display stability. Ordinary civilian display screens cannot adapt to the complex and changeable high-altitude flight environment, while professional customized 128x128 graphic LCD screen has become the preferred display solution for paragliding flight instruments with its ultra-compact size, low power consumption, and high stability.

This display module adopts FSTN positive display technology and high-performance UC1617S dedicated driver chip, perfectly solving the pain points of high-altitude light reflection, insufficient display clarity, high power consumption, and inconvenient installation of traditional paraglider display devices.

Paragliding flight is a high-precision outdoor aerial sport that relies on real-time data judgment. Pilots need to obtain core flight data such as real-time altitude, ascent and descent speed, horizontal wind speed, flight time, and battery remaining power through on-board display equipment at all times. The special flight environment of paragliding determines that the on-board display module must meet three core conditions: first, ultra-small size and light weight to avoid increasing the load of the paragliding aircraft and affecting flight balance; second, high-brightness and anti-glare display performance to ensure clear visibility under strong outdoor sunlight at high altitude; third, ultra-low power consumption and long-term stable operation to adapt to long-distance continuous flight.

JDA’s customized 128x128 graphic dot matrix screen is specially optimized for paragliding flight scenarios based on 20 years of LCD and TFT industry R&D and manufacturing experience. This professional graphic LCD display abandons the redundant structural design of traditional display screens, adopts a highly integrated COG packaging process, and realizes ultra-compact body size while retaining complete 128×128 high-precision dot matrix display functions.Equipped with the industry’s mature UC1617S single-chip drive solution, this LCD display screen achieves ultra-low power consumption operation, which can effectively extend the battery life of paragliding on-board equipment.

Below are the basic parameters of the 128128-11001A6 LCD screen.

As a professional graphic LCD display for aviation scenarios, this product has excellent display performance, which fully meets the high-definition and high-stability display requirements of paragliding flight data. The core display performance parameters are sorted out in detail as follows:

1. Display Resolution: Standard 128×128 dot matrix resolution, with uniform pixel distribution and high display precision. It can accurately display real-time flight altitude curves, speed change data, flight timing values, and equipment status icons, avoiding data distortion and blurring.

2. FSTN Positive Display Technology: Different from ordinary TN and STN display screens, FSTN technology optimizes the liquid crystal arrangement structure, effectively improves the viewing angle and contrast of the display screen. The positive display mode presents dark characters on a light background, which has stronger anti-reflection ability in outdoor strong sunlight, and the display content is still clear and distinguishable under high-altitude direct sunlight.

3. Gray Scale Display Capability: Support 4-level gray scale adjustment, which can realize hierarchical display of different data information, effectively distinguish key flight data and auxiliary data, and improve the pilot’s data reading efficiency.

4. Ultra-Wide Viewing Angle: Adopt aviation-level viewing angle optimization design, the horizontal and vertical viewing angles reach the industrial high standard, adapting to the multi-angle viewing habits of pilots during flight, and there is no color shift and blurring in the conventional viewing range.

5. Display Response Speed: Fast screen refresh and response speed, real-time synchronous update of flight dynamic data, no lag or ghosting, ensuring that pilots can obtain the latest flight status information in the first time.

JDA’s 128x128 FSTN positive LCD display screen equipped with UC1617S drive chip perfectly fits the special use environment and functional requirements of paragliding aircraft through targeted structural optimization, performance upgrading and scenario adaptation design.

This high-performance graphic dot matrix screen relies on ultra-compact size, excellent outdoor anti-glare display effect, ultra-low power consumption operation and strong extreme environment adaptability to solve many application pain points of traditional display equipment in paragliding flight scenarios.

Shenzhen Jingda Display Technology Co., Ltd. has established a significant competitive edge in the field of graphic dot matrix LCD displays, backed by over a decade of specialized experience in monochrome display technology. The company's core strength lies in its profound technical expertise and mature production capabilities, particularly in classic medium-resolution dot matrix modules such as 128×64, 128×128, and 240×128. JDA's graphic LCD solutions deliver outstanding display performance, featuring high contrast, true black-and-white reproduction, wide viewing angles, and ultra-low power consumption—making them ideal for battery-powered and industrial applications. If you are looking for monochrome graphic LCD display, please feel free to contact JDA’s team.
