JDA Graphic LCD Displays: Applications and Advantages

2025-05-29

Graphic LCD screens are flat-panel displays composed of a grid of individually controllable pixels. Unlike character LCDs limited to predefined symbols, graphic LCDs allow the rendering of arbitrary shapes, images, charts, and complex user interfaces by controlling each pixel's state (on/off or grayscale levels). They are typically monochrome (e.g., STN, FSTN --- offering shades of blue/gray/yellow/green on a background) but can also be grayscale.

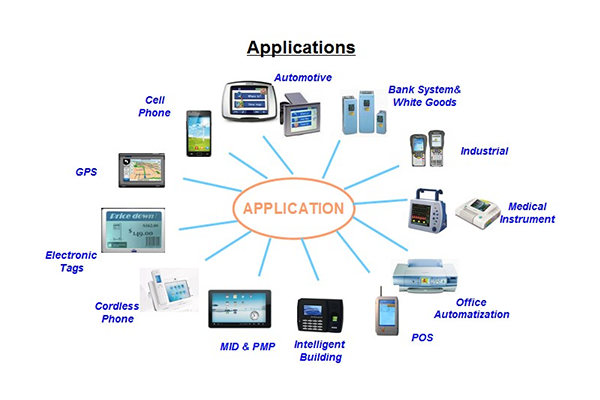

Applications of Graphic LCD Displays

Graphic LCDs are widely used in various industries due to their flexibility and reliability. Common applications include:

  • Industrial Equipment: Displaying real-time data, machine status, and graphical interfaces in control panels.
  • Medical Devices: Showing wave forms, measurements, and system messages in diagnostic and monitoring equipment.
  • Consumer Electronics: Used in calculators, handheld gaming consoles, and remote controls.
  • Communication Devices: Used in radios, transmitters, and intercoms to show frequency, signal strength, and menus.


The advantage of graphic lcd display

  1. Pixel-Level Control: Each dot (pixel) can be individually controlled, enabling complex graphics, custom fonts, and icons.
  2. Cost-Effective: Compared to TFT or OLED displays, graphic LCDs offer a lower-cost solution for applications not requiring color or high refresh rates.
  3. Low Power Consumption: Ideal for battery-operated devices, especially when using STN or FSTN technologies.
  4. Wide Viewing Angles: Enhanced visibility with display technologies like FSTN and transflective types.
  5. Customizability: Easily customized for specific applications in terms of size, and display format.
  6. Reliable Performance: Stable operation under various environmental conditions, making them suitable for industrial and outdoor use.



Graphic LCD displays remain a highly relevant and advantageous technology for applications requiring custom graphics, high readability, low power consumption, wide operating temperatures, high reliability, and cost-effectiveness, particularly where color is not essential. Their flexibility and maturity make them the optimal choice for countless industrial, medical, automotive, instrumentation, and embedded systems worldwide.


For more information about JDA’s graphic lcd display, please contact our team.
