The Application and Advantages of TFT Serial Port Screen in Smart Home

What is the serial port TFT display?

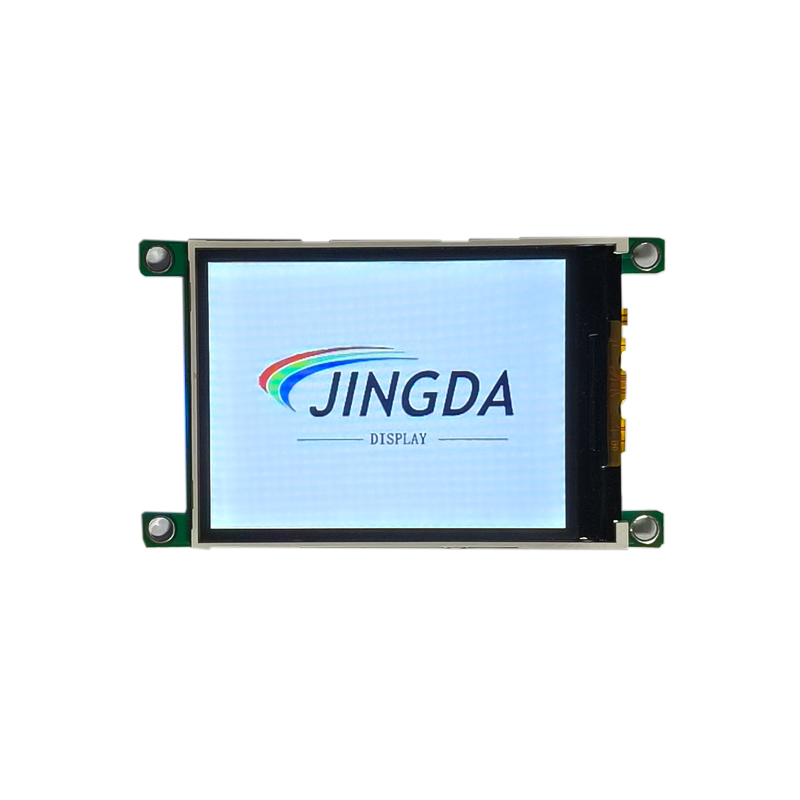

TFT serial port display, also known as intelligent serial port screen or UART screen, is a display module that integrates a display panel (TFT-LCD), touch screen, controller, video memory, and operating system.

Its key feature is serial communication. It can control the screen to display text, images, animations, and receive touch coordinate information returned by the screen. Developers do not need to write complex and tedious low level LCD drivers and graphical interface code, greatly simplifying the development process.

For the TFT serial port display (UART TFT LCD Module) has been widely used in the smart home industry due to its simple operation, high integration, and good display effect, mainly including:

1. Smart Door Lock: Used for password input, fingerprint recognition interface, and status display, making user interaction more intuitive.

2. Smart Home Appliance Control Panels: such as air conditioners, refrigerators, washing machines, water heaters, etc., achieve menu display, operation status and parameter setting through TFT serial port screens.

3. Intelligent Lighting System: It realizes light on/off, brightness adjustment and scene mode selection through a graphical interface.

4. Intelligent Security Devices: such as monitoring systems, video access control, and TFT serial port screens can display real-time images or prompt information

5. Home Central Control System: As a human-machine interaction interface, it is used to centrally control various intelligent terminals in the home.

The Advantage of Serial Port Display

1. Serial Communication is Simple

The TFT serial port screen communicates with the main control MCU through the UART serial port. The instruction set is concise, reducing the difficulty of developing the main control program.

Users only need to send instructions to control the interface display, reducing the development cycle.

2. The interface interaction is user-friendly

Supports full-color display and graphical interface, with high resolution and clear display effect

It can achieve touch function, making user operation more intuitive and convenient.

3. Rapid development

The built-in graphics library and interface editing software enable engineers to quickly design the U1.

The modular design significantly shortens the product development cycle, speeds up the market entry of smart home products, and has strong stability

4. High scalability

Compatible with multiple single-chip microcomputers, ARM platforms or embedded systems.

It can be flexibly applied in different home products to enhance the intelligence level of the entire system.

In conclusion, the TFT serial port screen has perfectly met the urgent demands of smart home devices for an aesthetically pleasing U1, stable interaction, and rapid development, and has become one of the preferred solutions for human-computer interaction interfaces in smart home products.

Welcome to contact our team and we will provide you with technical support.
