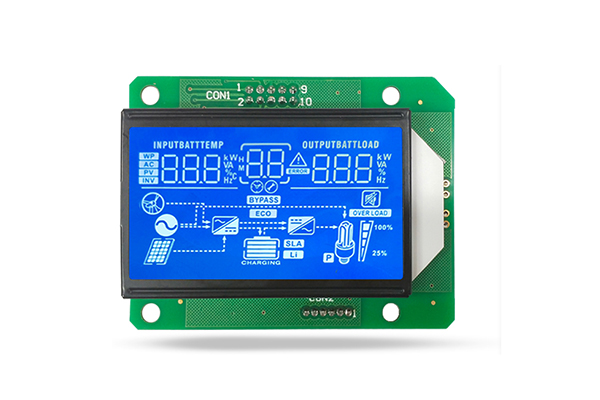

Segment LCD display: LCD that displays fixed content such as numbers, symbols, units, etc. through pre designed "segments". Each 'segment' is an independent electrode. It can only be used for simple display of numbers and characters.

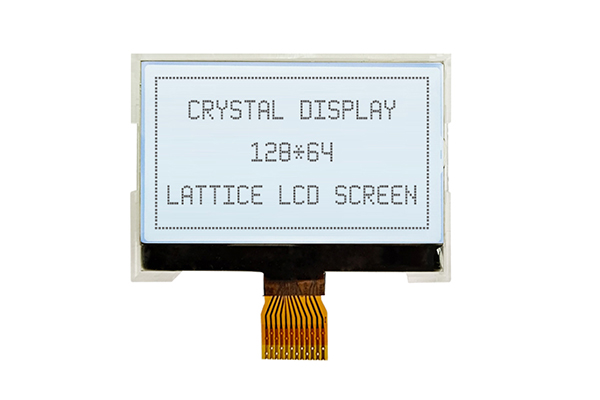

Graphic LCD display: A matrix composed of a large number of independent pixels (Dots) that can display any text, graphics, or image. Pixels are usually controlled in a row column driving manner. For example, a 128x64 dot matrix LCD screen has 64 dots vertically and 128 dots horizontally, for a total of 128x64 dots. As shown in the figure below.
The display principle of segment lcd display and graphic lcd display
|
Item |
Segment LCD display |
Graphic LCD display |
|
Principle |
The conductive area of the fixed segment appears after being electrified, for example, ‘8’is composed of 7 segments. |
A pixel matrix formed by the intersection of several rows and columns, each point can be individually controlled. |
|
Instruction |
The number of driving electrodes is small |
A row and column driver IC is needed |
|
Drive Method |
Static drive or simple multiplexing |
Dynamic row and column scanning driver |
Typical applications
Segment LCD display: Electronic scales, clocks, calculators, home appliance panels, instrument panels
Graphic LCD display: Industrial control equipment, medical equipment, POS machines, measuring instruments, in-vehicle displays, Chinese menu interfaces, etc
How to choose the segment display and graphic display?
It depends on your project requirements:
Selecting the segment code LCD screen:
1. The displayed content is fixed and limited (such as numbers, a few words or ICONS).
2. Extremely sensitive to costs and requiring large-scale production.
3. It has extremely high requirements for power consumption and the device needs to be powered by the battery for a long time.
4. There is no need to display Chinese characters or complex graphics.
Selecting the graphic LCD screen:
1. It is necessary to display Chinese characters, variable strings, dynamic graphics or animations
2. The displayed content needs to change frequently according to user operations or external inputs
3. There are requirements for the aesthetic appeal and interactivity of the UI interface.
If you are looking for the segment lcd display and graphic dot lcd display for your project, please contact JDA's team. Welcome to visit our official website: www.jda-display.com
